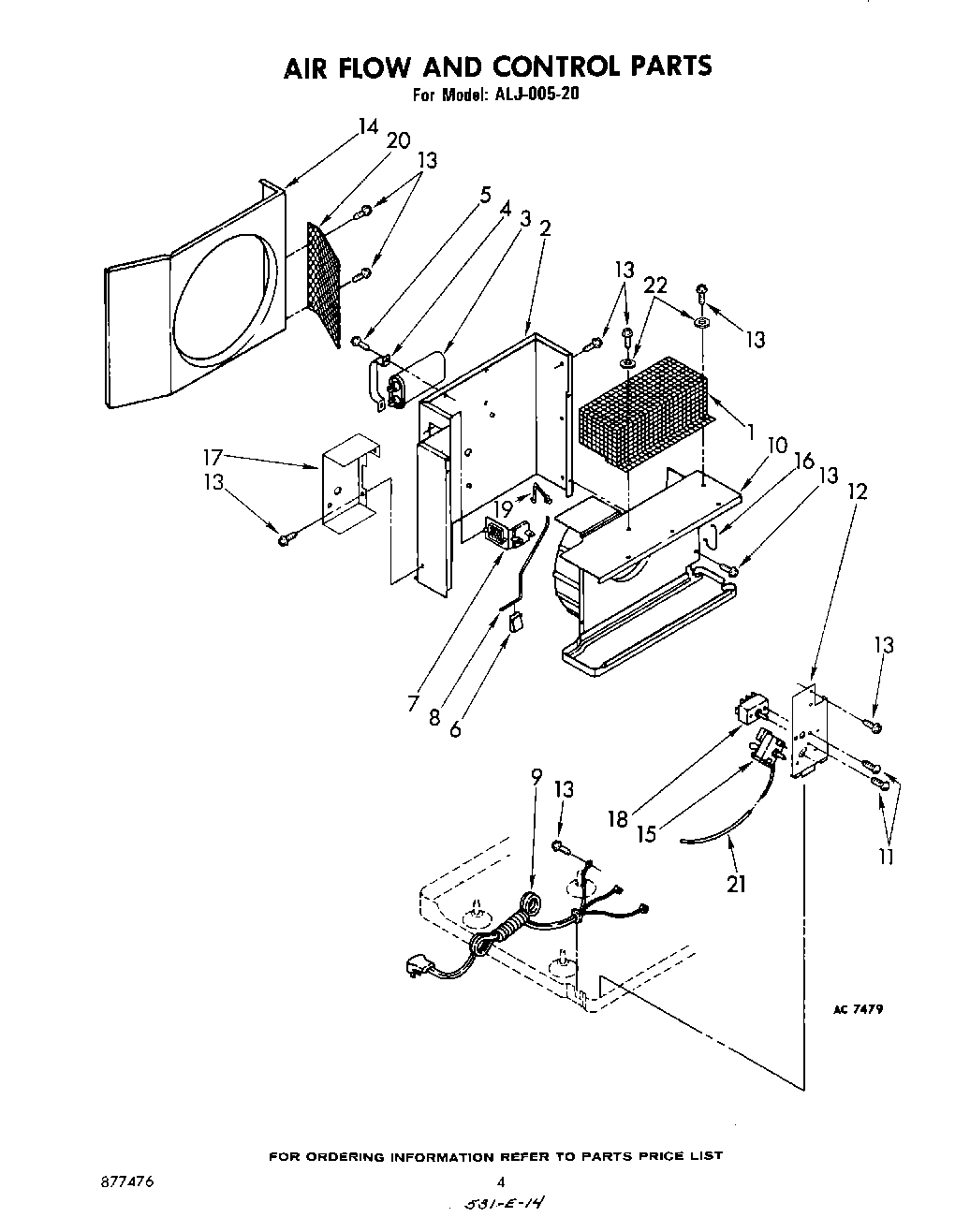

| 1 | Guard, Evaporator Impeller |
| 2 | Wall, Dividing |
| 3 | Capacitor |
| 4 | Bracket, Running Capacitor |
| 5 | WP488729 Whirlpool Refrigerator Door Screw |
| 6 | Clip, Arm |
| 7 | Door, Exhaust |
| 8 | Arm, Exhaust Door |
| 9 | Cable, Appliance |
| 10 | shroud, evaporator |
| 11 | Screw, Machine 6-32 x .175 (4) |
| 12 | Panel, Control |
| 13 | WP965173 Whirlpool Dishwasher Screw |
| 14 | Shroud, Condenser |
| 15 | Control, Temperature |
| 16 | Clip, Retainer (2) |
| 17 | Box, Control |
| 18 | Switch, Rotary |
| 19 | Linkage, Door |
| 20 | Screen, Splash |
| 21 | Protector, Bulb |
| 22 | Washer, Flat (3) |
