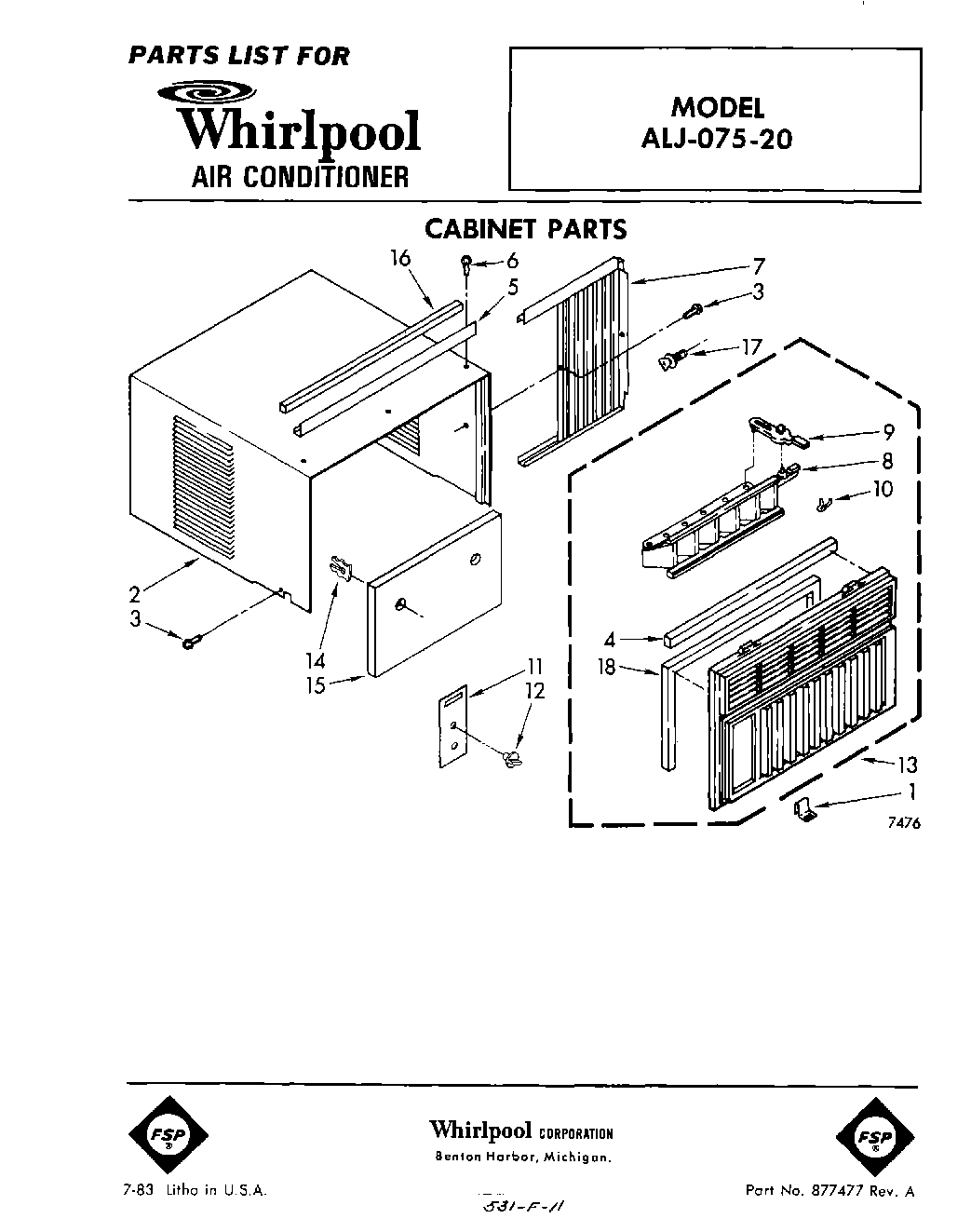

| 1 | Clip, Front Mounting (2) |
| 2 | Cabinet |
| 3 | WP965173 Whirlpool Dishwasher Screw |
| 4 | Seal, Strip (Top) |
| 5 | Channel, Top Mounting |
| 6 | WP488729 Whirlpool Refrigerator Door Screw |
| 7 | Curtain Housing Assembly (Right Side) |
| 7 | Curtain Housing Assembly (Left Side) |
| 8 | Louver, Vertical |
| 9 | Handle, Louver |
| 10 | Spring, Detent |
| 11 | Escutcheon, Control |
| 12 | Knob, Control (2) |
| 13 | Front, Cabinet (Complete Assembly) |
| 13 | (See Optional Parts) |
| 14 | Retainer, Filter (2) |
| 15 | Filter |
| 16 | Seal, Meeting Rail |
| 17 | Screw, 6 x 1`` (2) |
| 18 | Seal, Strip (Sides) |
