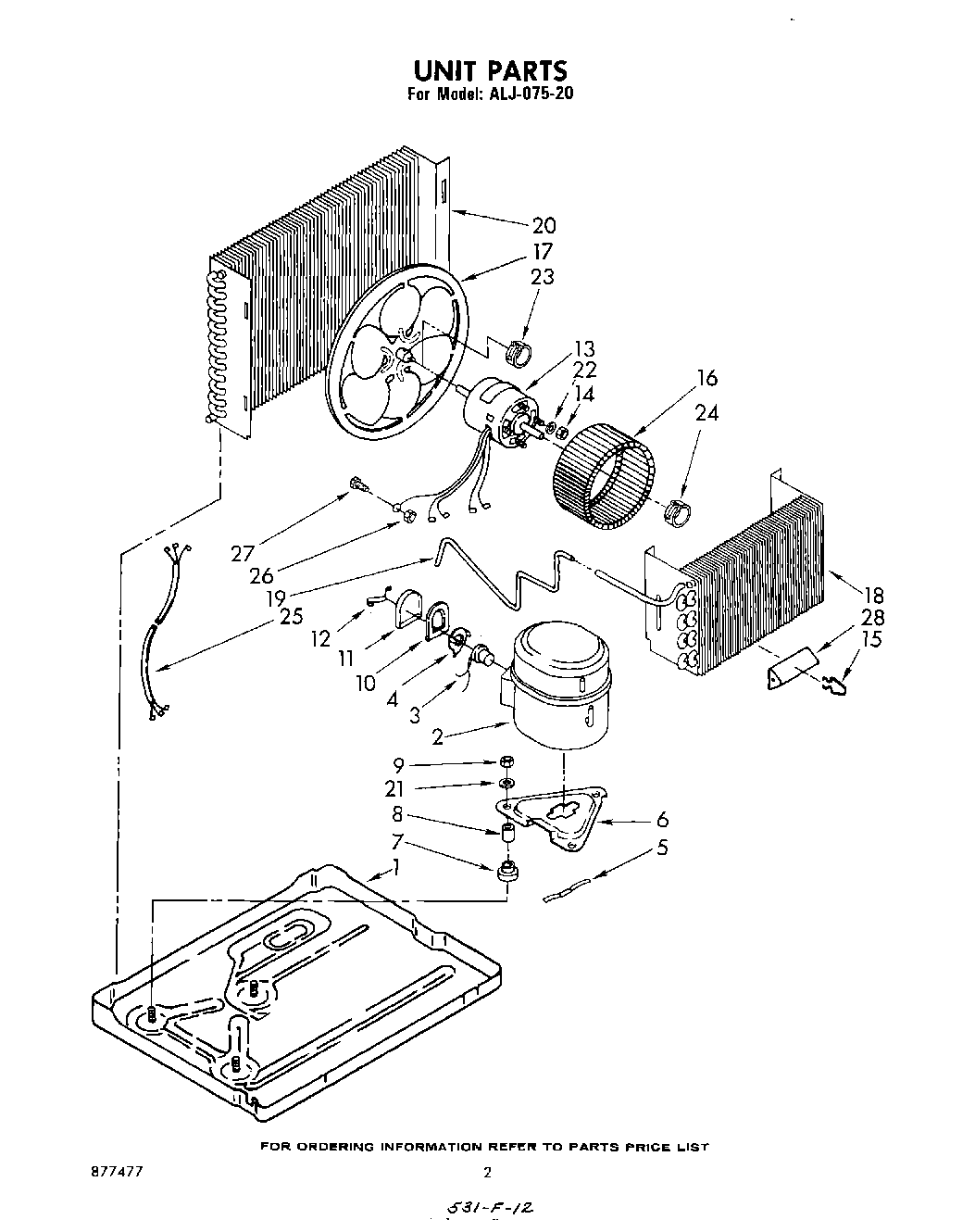

ALJ07520 02 – SECTION

Products

PositionProduct
1Base
2compressor
3Overload
4Spring, Overload
5spring, compressor mounting
6Spring, Compressor Mounting
7Grommet, Compressor Mounting (3)
8Sleeve, Compressor Mounting (3)
9nut, 5/16-18 (3)
10gasket, terminal cover
11cover, terminal
12Retainer, Terminal
13motor, fan
15Clip, Temperature Anticipator
16Wheel, Blower (Evaporator)
17Blade, Fan (Condenser)
18evaporator
19tube, restrictor
20condenser
21WP120393 Whirlpool Washer Assembly
22Spacer, Washer (4)
23Clip, Fan Mounting
24Clip, Wheel Mounting
25Harness, Wiring
26WP488130 Whirlpool Air Conditioner Nut
27WP489128 Whirlpool Refrigerator Screw
28Oil, Turbine 1 Fl. Oz.
28guide, use & care
28WPL 979026
28978027 Whirlpool Refrigerator Primary Valve
28WPL 980719
28WP978025 Whirlpool Refrigerator Valve
28WPL 980765
28212643 Whirlpool Refrigerator Permagum Sealer
28VALVE, ACCESS (5/8“)
28list, repair parts
28978030 Whirlpool Refrigerator Valve
28Wire, 25“ Roll (Black 12 GA.)
28Wire, Red, (25 Ft.)
28Kit, Evaporator Repair (Aluminum Epoxy)
28Lacquer, Starlight Gray (1/2 Pt. Uncut)
28No Drip Tape (For Sweating Tubes)
28WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
28Insulation, Fiberglass (1/4“ x 24“ x 48“)
28Wire, 25“ Roll (White 12 GA.)
28Anticipator, Temperature
28VALVE, ACCESS (1/2“)
28WPL 799351
