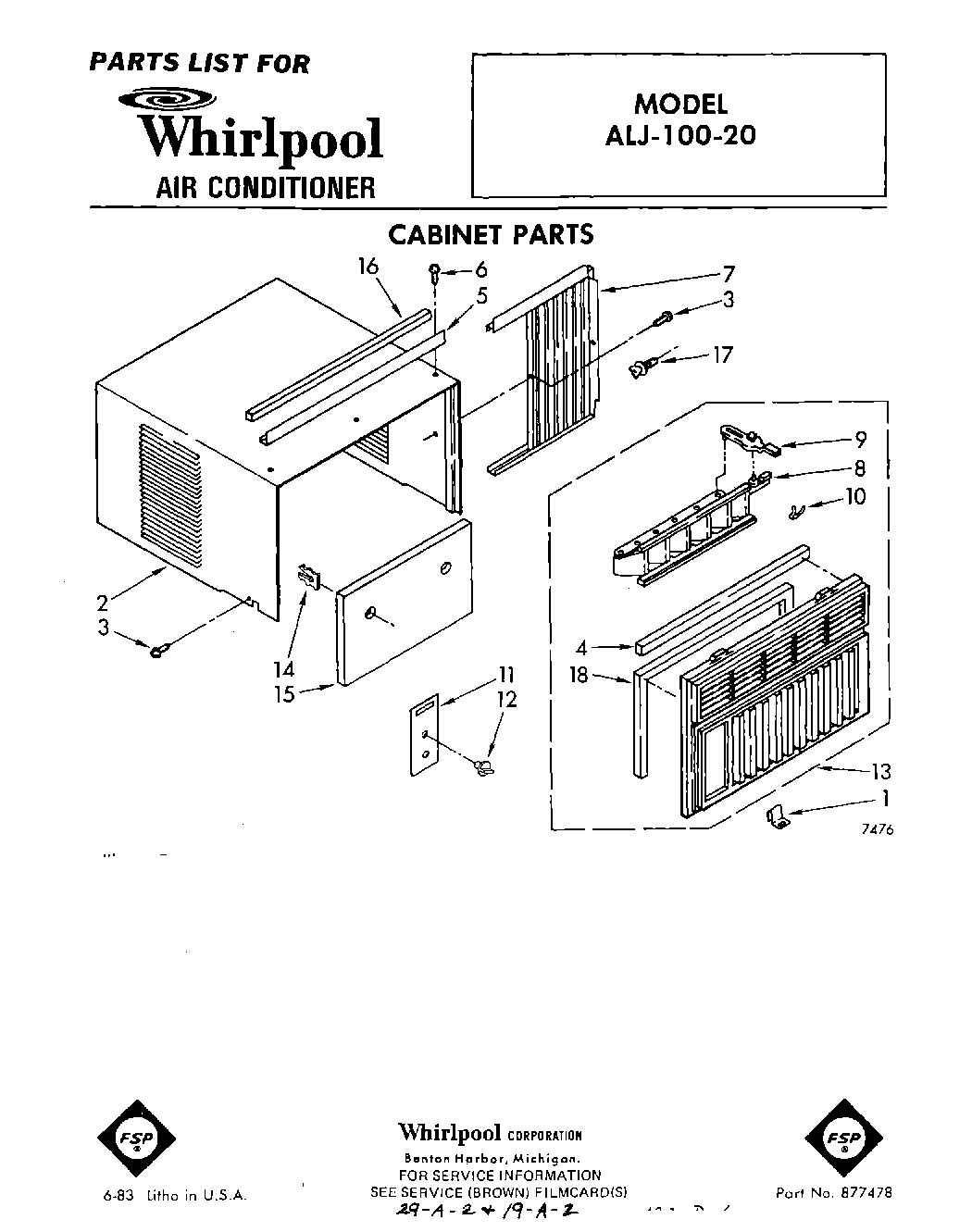

ALJ10020 01 – SECTION

ALJ10020 01 – SECTION

Written by

in

ALJ10020 01 – SECTION

Products

PositionProduct
1Clip, Front Mounting (2)
2Cabinet
3WP965173 Whirlpool Dishwasher Screw
4Seal, Strip (Top)
5Channel, Top Mounting
6WP488729 Whirlpool Refrigerator Door Screw
7Curtain Housing Assembly (Right Side)
7Curtain Housing Assembly (Left Side)
8Louver, Vertical
9Handle, Louver
10Spring, Detent
11Escutcheon, Control
12Knob, Control (3)
13Fron , Cabinet Assembly
14Retainer, Filter (2)
15Filter
16Seal, Meeting Rail
17Screw, 6 x 1“ (2)
18WP854334 Whirlpool Air Conditioner Sealing Strip
