ALJ12020 02 – SECTION

Products

Position	Product
	WPL LIT950262
	WPL LIT950264
	WPL LIT980721
	WPL LIT877479

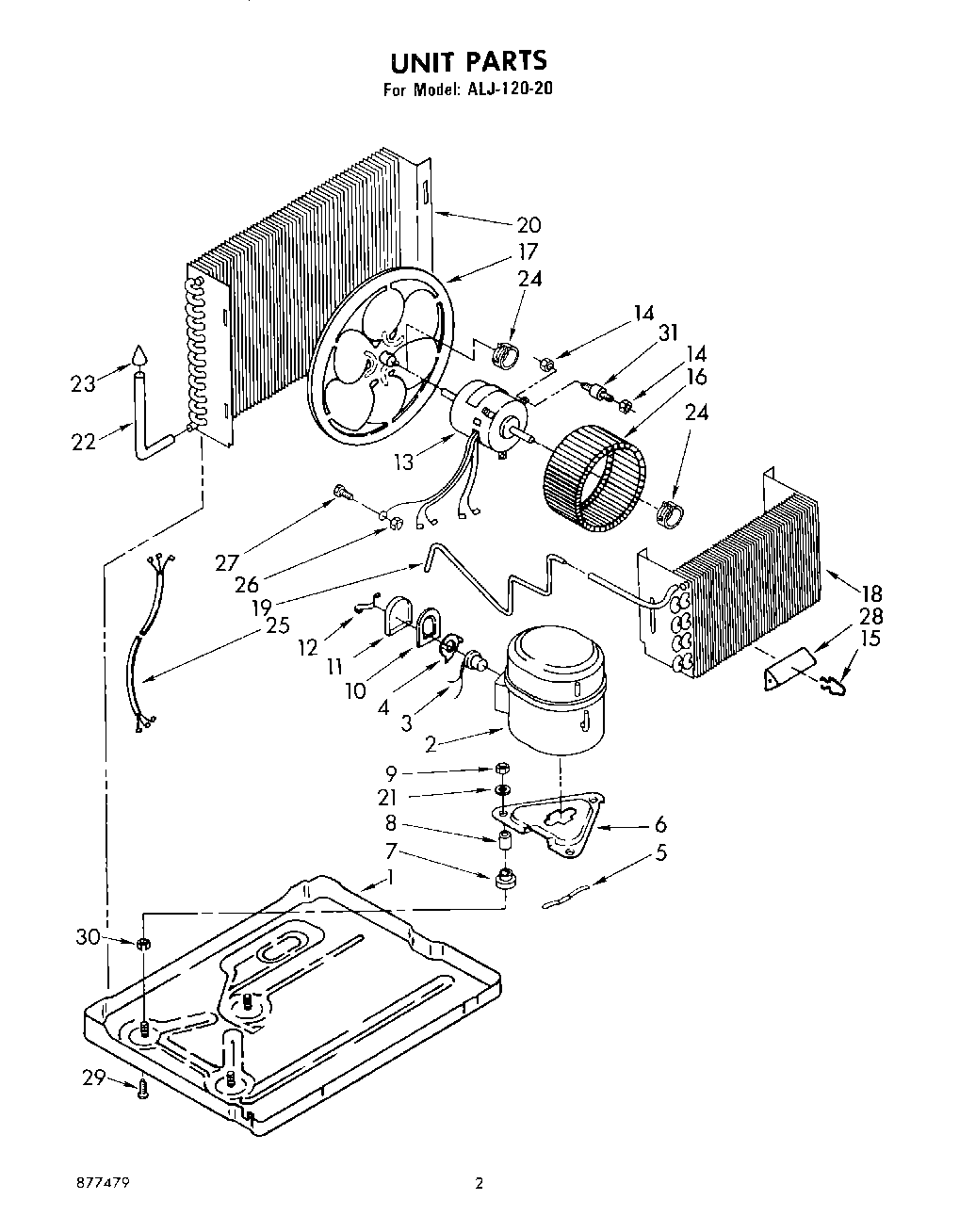

1	Base
2	Compressor
3	Overload
4	Spring, Overload
5	spring, compressor mounting
6	Plate, Compressor Mounting
7	Grommet, Compressor Mounting (3)
8	Sleeve, Compressor Mounting (3)
10	gasket, terminal cover
11	cover, terminal
12	Retainer, Terminal
13	Motor, Fan
14	Nut, Hex Keps 8-32 (4)
15	Clip, Temperature Anticipator
16	Wheel, Blower (Evaporator)
17	Blade, Fan (Condenser)
18	Evaporator
19	Tube, Restrictor (2)
20	Condenser
21	WP120393 Whirlpool Washer Assembly
22	Tube & Strainer (Includes Item 23)
23	Strainer
24	Clip, Mounting
25	Harness, Wiring
26	WP488130 Whirlpool Air Conditioner Nut
27	WP489128 Whirlpool Refrigerator Screw
28	Anticipator, Temperature
29	Screw, Machine 5/16-18 x 1-1/4 (3)
30	nut, 5/16-18 (3)
31	No Drip Tape (For Sweating Tubes)
31	Lacquer, Starlight Gray (1/2 Pt. Uncut)
31	Kit, Evaporator Repair (Aluminum Epoxy)
31	Wire, Red, (25 Ft.)
31	Insulation, Fiberglass (1/4“ x 24“ x 48“)
31	Oil, Turbine 1 Fl. Oz.
31	Mount, Fan Motor (3)
31	978030 Whirlpool Refrigerator Valve
31	212643 Whirlpool Refrigerator Permagum Sealer
31	978026 Whirlpool Refrigerator Primary Valve
31	978027 Whirlpool Refrigerator Primary Valve
31	WP978025 Whirlpool Refrigerator Valve
31	VALVE, ACCESS (1/2“)
31	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
31	Wire, 25“ Roll (Black 12 GA.)
31	Wire, 25“ Roll (White 12 GA.)
31	WPL 799351
31	VALVE, ACCESS (5/8“)
