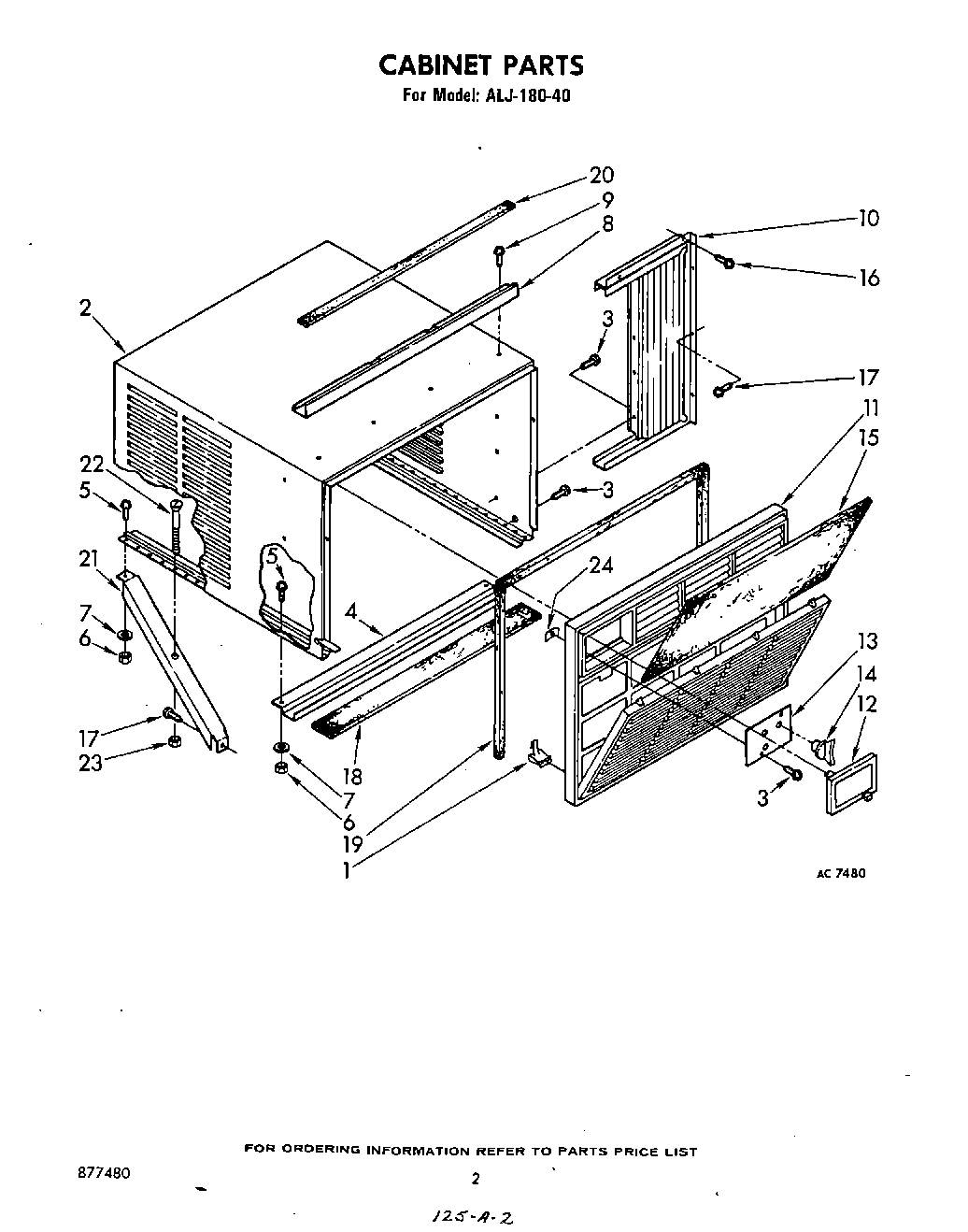

ALJ18040 02 – SECTION

ALJ18040 02 – SECTION

Written by

in

ALJ18040 02 – SECTION

Products

PositionProduct
1Clip, Front (2)
2Cabinet
3WP488729 Whirlpool Refrigerator Door Screw
4Channel, Bottom
5Bolt, 1/4-20 x 1/2 (2)
6Nut, 1/4-20 (6)
7Washer, 1/4 (2)
8Channel, Top
9WP965173 Whirlpool Dishwasher Screw
10Curtain, L.H.
10Curtain, R.H.
11Front (Complete Assembly)
12Door, Control
13Escutcheon, Control
14Knob, Control (3)
15Filter, Air
16W10759522 Whirlpool Screw
17Handle, Louver
18Seal, Stool
19Seal, Chassis
20Seal, Strip
21Bracket, Support
22Bolt, 1/4-20 x 5-3/4“ (2)
23WP487939 Whirlpool Refrigerator Nut
24Clip, Retainer (2)
