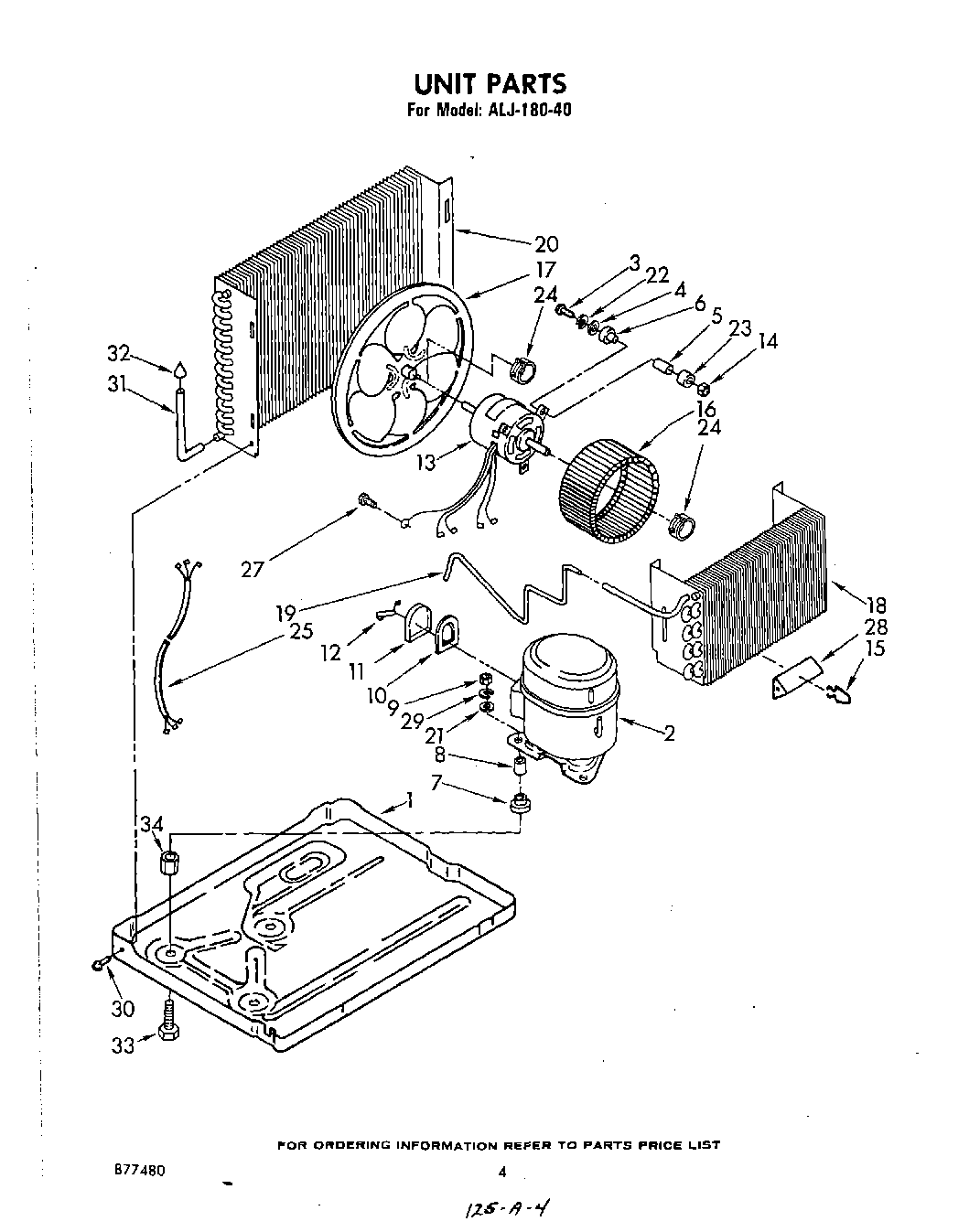

| 1 | Base |
| 2 | Compressor |
| 3 | Screw, 1/4-28 x 1-1/2 (3) |
| 5 | Sleeve, Spacer (3) |
| 6 | Tube, Grommet (3) |
| 7 | Grommet, Compressor Mounting (3) |
| 8 | Sleeve, Compressor Mounting (3) |
| 9 | Nut, 5/16-18 (3) |
| 10 | Gasket, Terminal Cover |
| 11 | Cover, Terminal |
| 12 | Retainer, Terminal Cover |
| 13 | Motor, Fan |
| 14 | Nut, 1/4-28 (3) |
| 15 | Clip, Temperature Anticipator |
| 16 | Wheel, Blower (Evaporator) |
| 17 | Blade, Fan (Condenser) |
| 18 | Evaporator |
| 19 | Tube, Restrictor |
| 20 | Condenser |
| 21 | WP120393 Whirlpool Washer Assembly |
| 22 | Washer, Lock (3) |
| 23 | Washer, Grommet (3) |
| 24 | Clip, Mounting |
| 25 | Harness, Wiring |
| 27 | Screw, 8 x 3/8 |
| 28 | Anticipator, Temperature |
| 29 | Washer, Lock (3) |
| 30 | WP488729 Whirlpool Refrigerator Door Screw |
| 31 | Tube & Strainer (Includes Item 23) |
| 32 | Strainer, Tube |
| 33 | Screw, 5/16-18 x 1-3/4 (3) |
| 34 | No Drip Tape (For Sweating Tubes) |
| 34 | 978026 Whirlpool Refrigerator Primary Valve |
| 34 | 212643 Whirlpool Refrigerator Permagum Sealer |
| 34 | VALVE, ACCESS (5/8``) |
| 34 | WP978025 Whirlpool Refrigerator Valve |
| 34 | List, Repair Parts |
| 34 | Guide, Use & Care |
| 34 | WPL 980722 |
| 34 | 978027 Whirlpool Refrigerator Primary Valve |
| 34 | 978030 Whirlpool Refrigerator Valve |
| 34 | VALVE, ACCESS (1/2``) |
| 34 | Lacquer, Starlight Gray (1/2 Pt. Uncut) |
| 34 | Kit, Evaporator Repair (Aluminum Epoxy) |
| 34 | Insulation, Fiberglass (1/4`` x 24`` x 48``) |
| 34 | Oil, Turbine 1 Fl. Oz. |
| 34 | Wire, Red, (25 Ft.) |
| 34 | nut, 5/16-18 (3) |
| 34 | WPL 799351 |
| 34 | Wire, 25`` Roll (White 12 GA.) |
| 34 | Wire, 25`` Roll (Black 12 GA.) |
| 34 | WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive |
| 34 | WPL 980862 |
