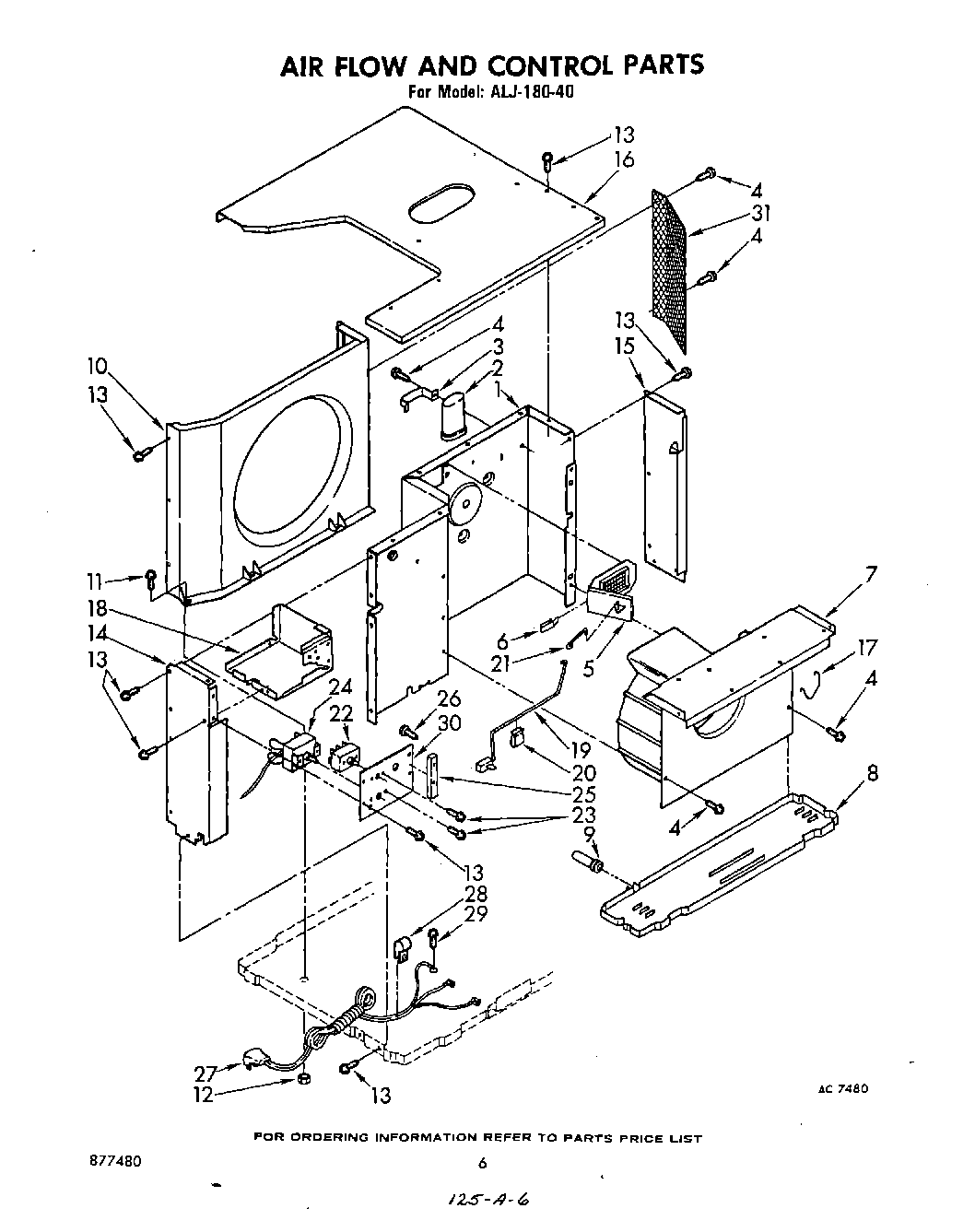

ALJ18040 04 – SECTION
Written by
in
ALJ18040 04 – SECTION
Products
Position
Product
1
Wall, Dividing
2
Capacitor, Run
3
Bracket, Running Capacitor
4
WP965173 Whirlpool Dishwasher Screw
5
Door, Exhaust
6
Spring, Door
7
Housing, Blower Wheel
8
Pan, Condensate
9
Grommet, Pan
10
Shroud, Condenser
11
WP999367 Whirlpool Refrigerator Screw
12
Nut, 10-32
13
WP488729 Whirlpool Refrigerator Door Screw
14
Panel, Dividing Wall (L.S.)
15
Panel, Dividing Wall (R.S.)
16
Cover, Top
17
Clip, Retainer
18
Box, Control
19
Actuator, Exhaust Door
20
Clip, Retainer
21
Wire, Control
22
Switch, Rotary
23
Screw, 6-32 x 1/4
24
Control, Temperature
25
Pad, Protector
26
WP488234 Whirlpool Air Conditioner Screw
27
Cable, Appliance
28
Clamp, Cable
29
SCREW
30
Plate, Switch
31
Screen, Splash
←
