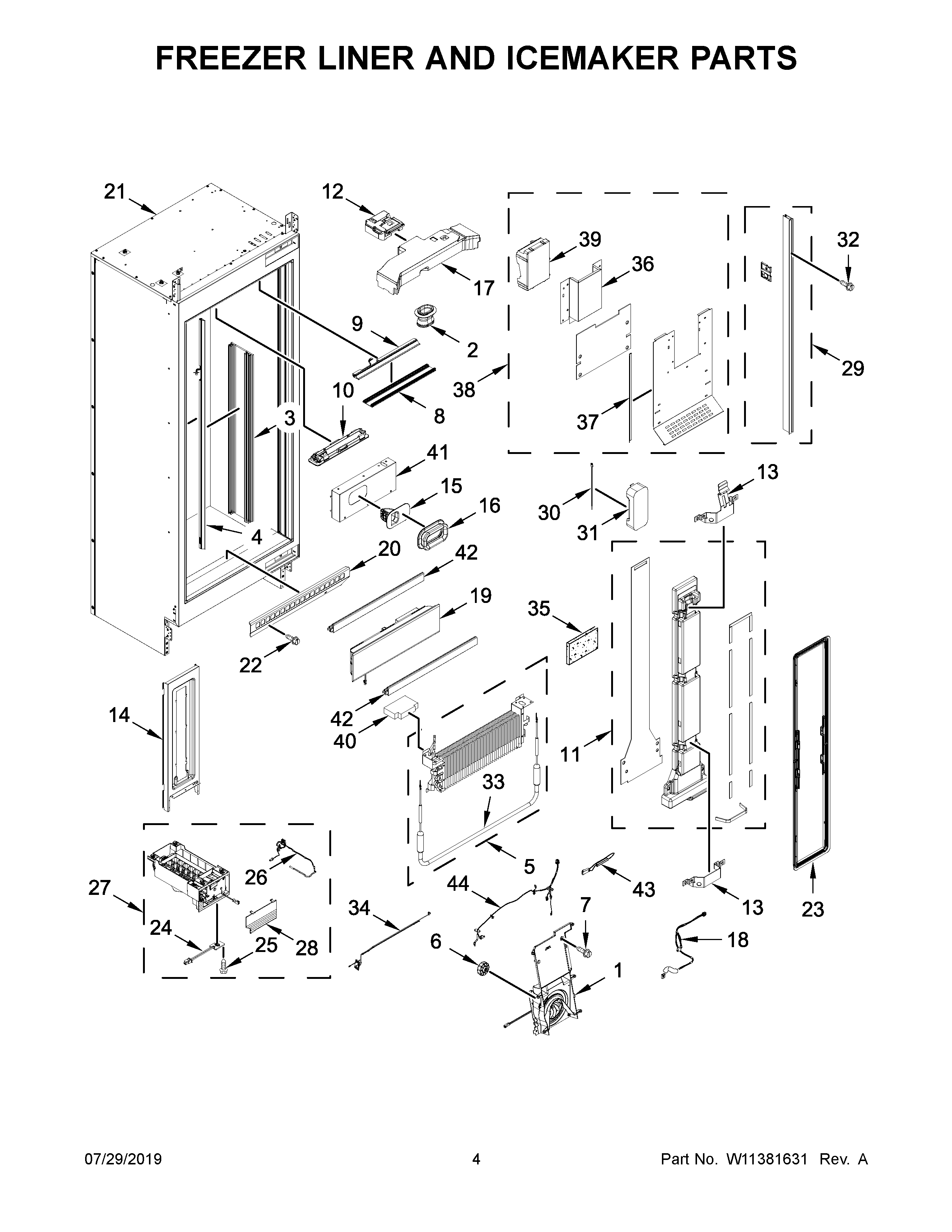

ALOVE18FLC00 03 – FREEZER LINER AND ICEMAKER PARTS

Products

PositionProduct
1ASSEMBLY, FAN
2MAY W10370680
3COVER, LED SIDE
4AASSEMBLY, LED STRIP (RIGHT HAND)
4ASSEMBLY, LED STRIP (LEFT HAND)
5EVAPORATOR
6GROMMET, MOTOR
7SCREW (10)
8COVER, LED TOP
9STRIP, TOP LED
10ASSEMBY, LIGHT STRIP
11ASSEMBLY, AIR TOWER GASKET (INCLUDES AIR TOWER)
12ASSEMBLY, DUCT DAMPER (INCLUDES HEATER)
13AASSEMBLY, AIR TOWER BRACKET (INCLUDES RUBBER RIVETS, WASHERS AND SCREWS) (LOWER)
13ASSEMBLY, AIR TOWER BRACKET (INCLUDES RUBBER RIVETS, WASHERS AND SCREWS) (UPPER)
14MAY W11305419
15DUCT, DELI
16GASKET, DELI DUCT
17ASSEMBLY, DUCT
18HARNESS, DAMPER
19ASSEMBLY, USER INTERFACE
20GRILLE, AIR RETURN
21LINER (NOT A SERVICEABLE PART)
22MAY 1157158
23MAY W11305426
24LIGHT, LED
25SCREW
26ASSEMBLY, ICEMAKER WIRE (INCLUDES THERMISTOR)
27ASSEMBLY, ICEMAKER
28COVER, ICEMAKER (BLACK)
29AMAY W11305424
29MAY W11305422
30THERMISTOR
31COVER, THERMISTOR
32MAY W11288606
33HEATER, DEFROST
34ASSEMBLY, FILL TUBE (INCLUDES HEATER)
35SEALER, INSULATION
36MAY W10895218
37MAY W10895214
38ASSEMBLY, EVAPO
39MAY W10780861
40MAY W11216532
40AMAY W11216529
41MAY W10816944
42MAY W10816922
42AMAY W10887667
43ASSEMBLY, FUSE JUMPER WIRE
44H
