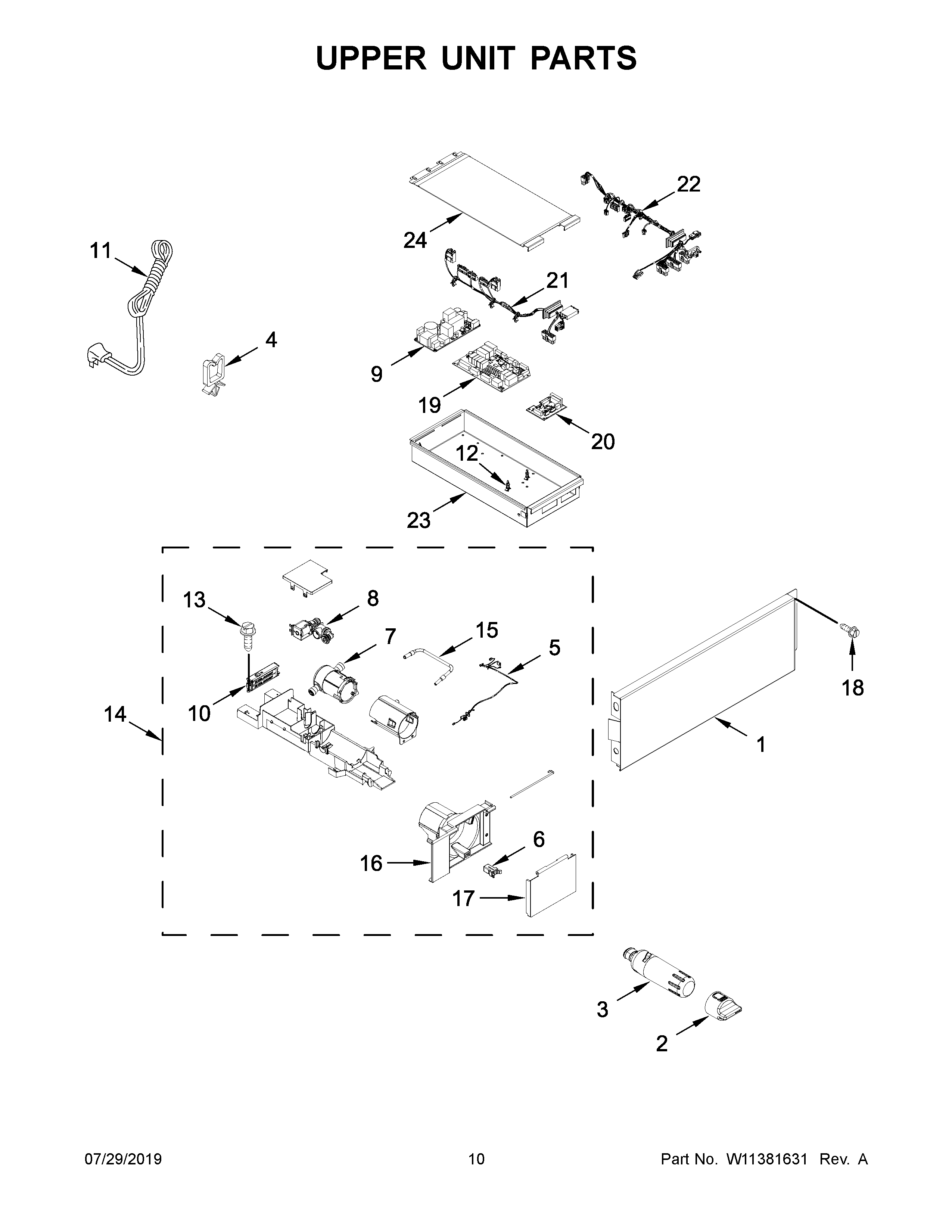

ALOVE18FLC00 06 – UPPER UNIT PARTS

Products

PositionProduct
1MAY W11305461
2CAP, WATER FILTER (GREY)
3FILTER, WATER
4CLIP
5HARNESS, VALVE (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
6LATCH, PUSH
7HOUSING, WATER FILTER (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
8VALVE, SINGLE SOLENOID (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
9SUPPLY, POWER
10ASSEMBLY, WIFI MODULE (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
11CORD, POWER
12Spacer (5)
13SCREW
14MAY W11305445
15TUBE, FILTER INLET
16MAY W11305456
17MAY W11305459
18SCREW
19CONTROL, ELECTRONIC
20CONTROL, ELECTRONIC (LED DRIVER)
21HARNESS, HV
22HARNESS, LV
23TRAY , CONTROL BOARD MOUNTING
24LID, COVER
