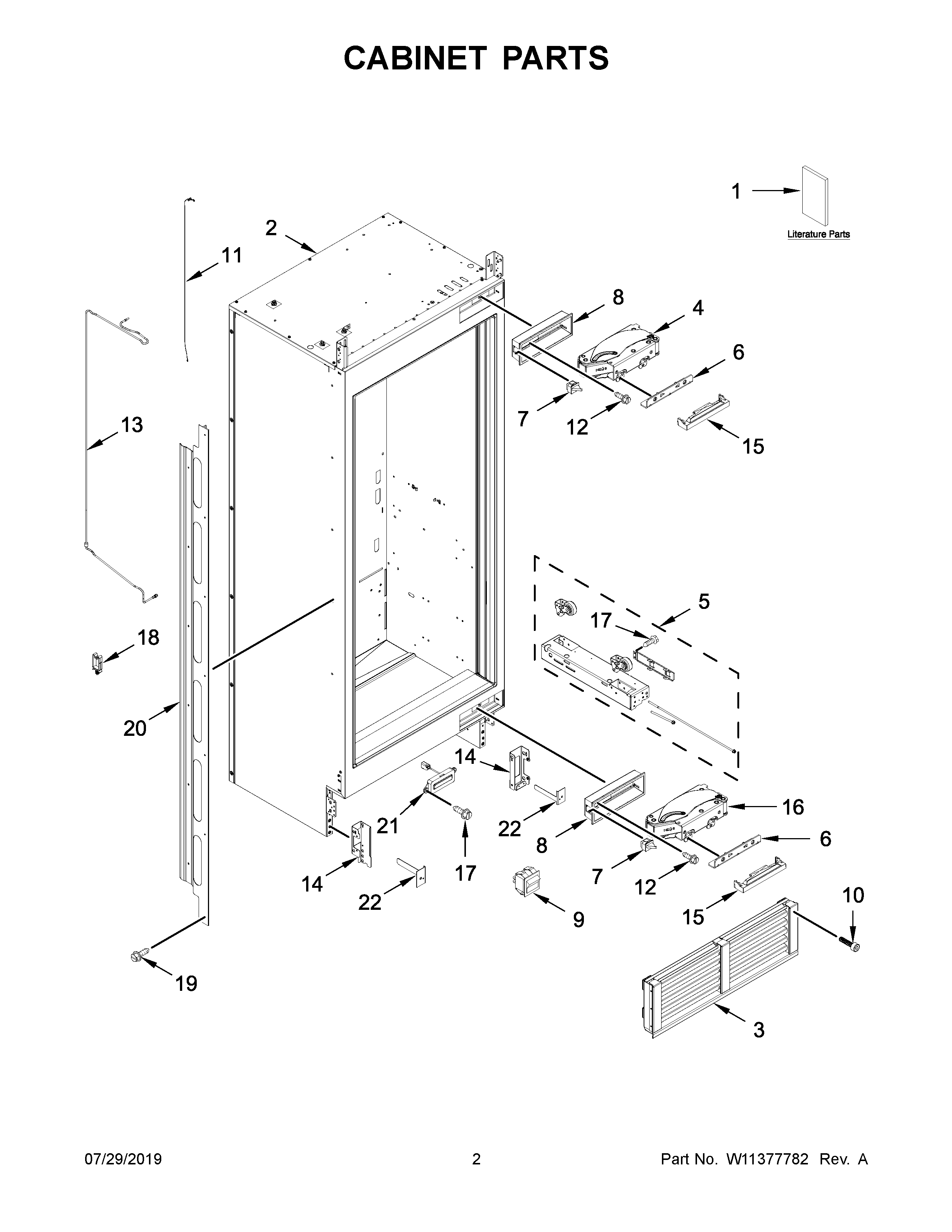

ALOVE24FLC00 02 – CABINET PARTS

Products

PositionProduct
1BINSTALLATION INSTRUCTIONS
1USE AND CARE GUIDE
1AENERGY GUIDE
1CTECH SHEET (ENGLISH)
1DTECH SHEET (FRENCH)
2LINER (NOT A SERVICEABLE PART)
3MAY W11305430
4HINGE, TOP (CHARCOAL SPARKLE)
5ASSEMBLY, ROLLER BASE (LEFT HAND)
5AASSEMBLY, ROLLER BASE (RIGHT HAND)
6BRACKET, HINGE ATTACH
7SWITCH, LIGHT
8MAY W11305417
9Switch, Power Disconnect
10SCREW
11HARNESS, ANTENNA
12SCREW (BLACK)
13TUBE, WATER (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
14AASSEMBY, GRILLE MOUNT (INCLUDES NUT) (RIGHT HAND)
14ASSEMBY, GRILLE MOUNT (INCLUDES NUT) (LEFT HAND)
15COVER, HINGE BRACKET
16HINGE, BOTTOM (CHARCOAL SPARKLE)
17SCREW 8-32 X 1/2
18CLIP, WIRE
19MAY W10141645
20ATRIM, SIDE (EBONY (NON-HINGE SIDE))
20TRIM, SIDE (EBONY (LEFT HAND))
21MODULE, WIFI
22AASSEMBLY, ADJUSTABLE TOEKICK (RIGHT HAND)
22ASSEMBLY, ADJUSTABLE TOEKICK (LEFT HAND)
