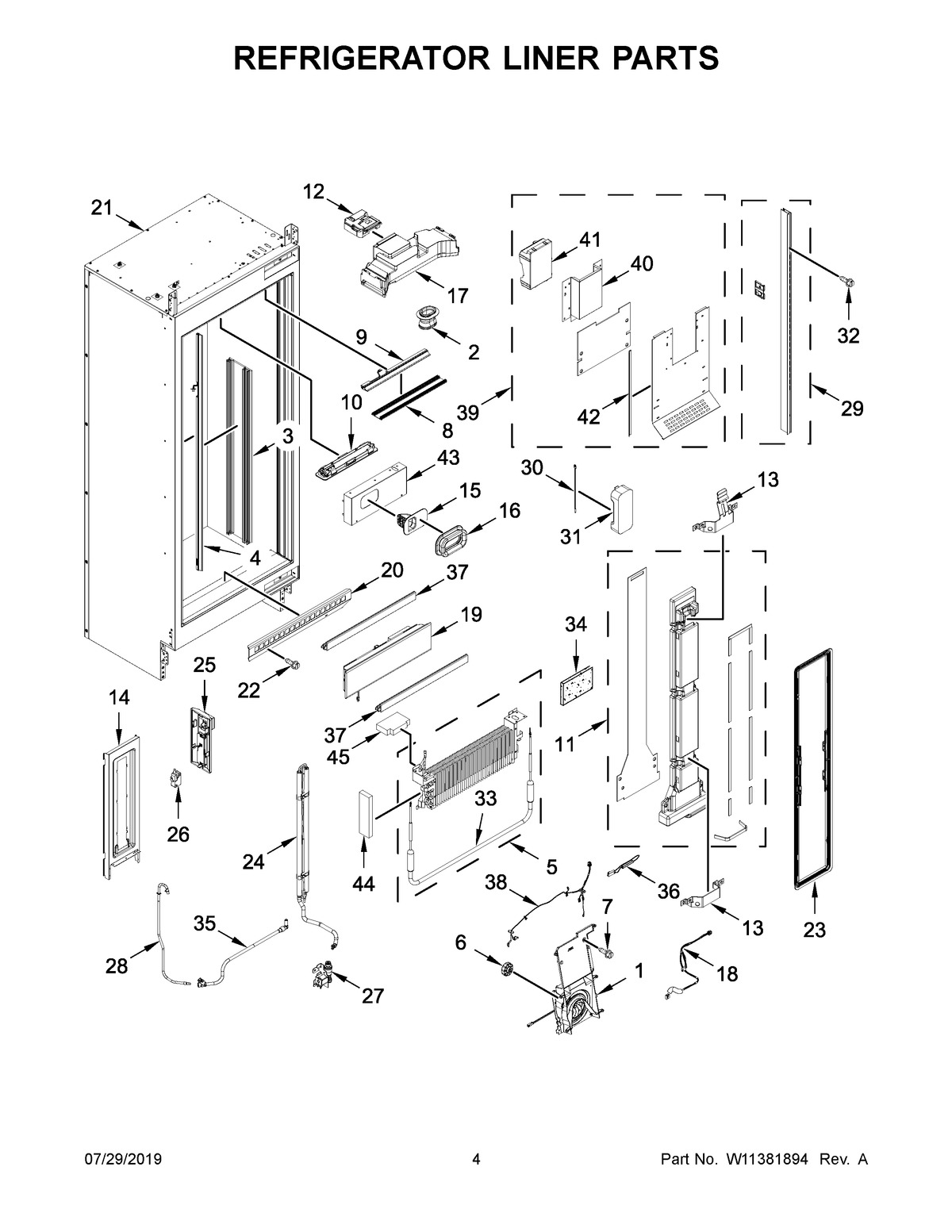

ALOVE30RRC00 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	ASSEMBLY, FAN
2	MAY W10370680
3	COVER, LED SIDE
4A	ASSEMBLY, LED STRIP (RIGHT HAND)
4	ASSEMBLY, LED STRIP (LEFT HAND)
5	EVAPORATOR
6	GROMMET, MOTOR
7	SCREW (10)
8	COVER, LED TOP
9	STRIP, TOP LED
10	ASSEMBY, LIGHT STRIP
11	ASSEMBLY, AIR TOWER GASKET (INCLUDES AIR TOWER)
12	ASSEMBLY, DUCT DAMPER (INCLUDES HEATER)
13A	ASSEMBLY, AIR TOWER BRACKET (INCLUDES RUBBER RIVETS, WASHERS AND SCREWS) (LOWER)
13	ASSEMBLY, AIR TOWER BRACKET (INCLUDES RUBBER RIVETS, WASHERS AND SCREWS) (UPPER)
14	MAY W11305421
15	DUCT, DELI
16	GASKET, DELI DUCT
17	ASSEMBLY, DUCT
18	HARNESS, DAMPER
19	ASSEMBLY, USER INTERFACE
20	GRILLE, AIR RETURN
21	LINER (NOT A SERVICEABLE PART)
22	MAY 1157158
23	MAY W11305426
24	RESERVOIR, WATER
25	ASSEMBLY, DISPENSER COVER
26	MAY 12575502
27	VALVE, SINGLE SOLENOID
28	TUBE, DISPENSER WATER
29A	MAY W11305424
29	MAY W11305422
30	THERMISTOR
31	COVER, THERMISTOR
32	MAY W11288606
33	HEATER, DEFROST
34	SEALER, INSULATION
35	TUBE, DISPENSER WATER (WATER VALVE)
36	ASSEMBLY, FUSE JUMPER WIRE
37	CROSSBAR, CONTROL (UPPER)
37A	CROSSBAR, CONTROL (LOWER)
38	H
39	MAY W10876960
40	MAY W10895218
41	MAY W10780861
42	MAY W10895214
43	MAY W10816946
44A	MAY W10876969
44	MAY W10876968
45A	MAY W11216535
45	MAY W11216536
