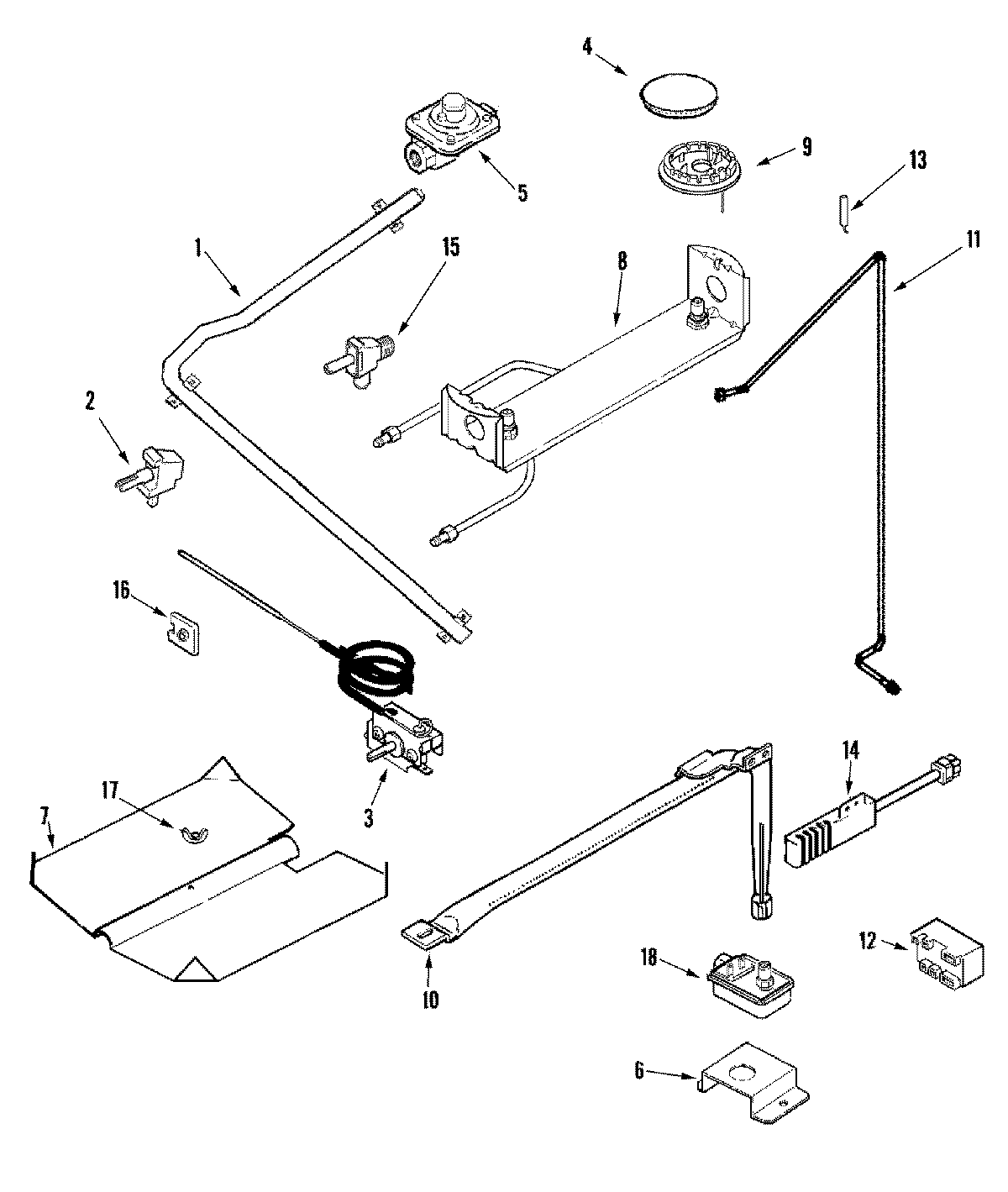

ALR1420BDW 04 – GAS CONTROLS

Products

Position	Product
1	MAY 74002454
2	MAY 74002532
2	WP8273096 Whirlpool Screw
3	MAY 7101P280-60
3	WP74002390 Whirlpool Oven Thermostat
4	MAY 74007534
5	MAY 74007524
6	MAY 74005051
7	MAY 74002393
8	MAY 74007631
9	MAY 74007528
9	MAY 74007527
9	MAY 7101P343-60
10	SCREW
10	MAY 74002434
11	MAY 74006417
12	8215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
13	WP8523793 Whirlpool Oven Surface Igniter
14	74007498 Whirlpool Range Flat Igniter
14	SCREW (10-24X5/16-NI)
15	12002280 Whirlpool Oven Valve Kit and Screw
15	MAY 71003231
16	MAY 74007095
17	NUT, WING
18	MAY 74006352
