ALR1450BJW 04 – GAS CONTROLS

ALR1450BJW 04 – GAS CONTROLS

Written by

in

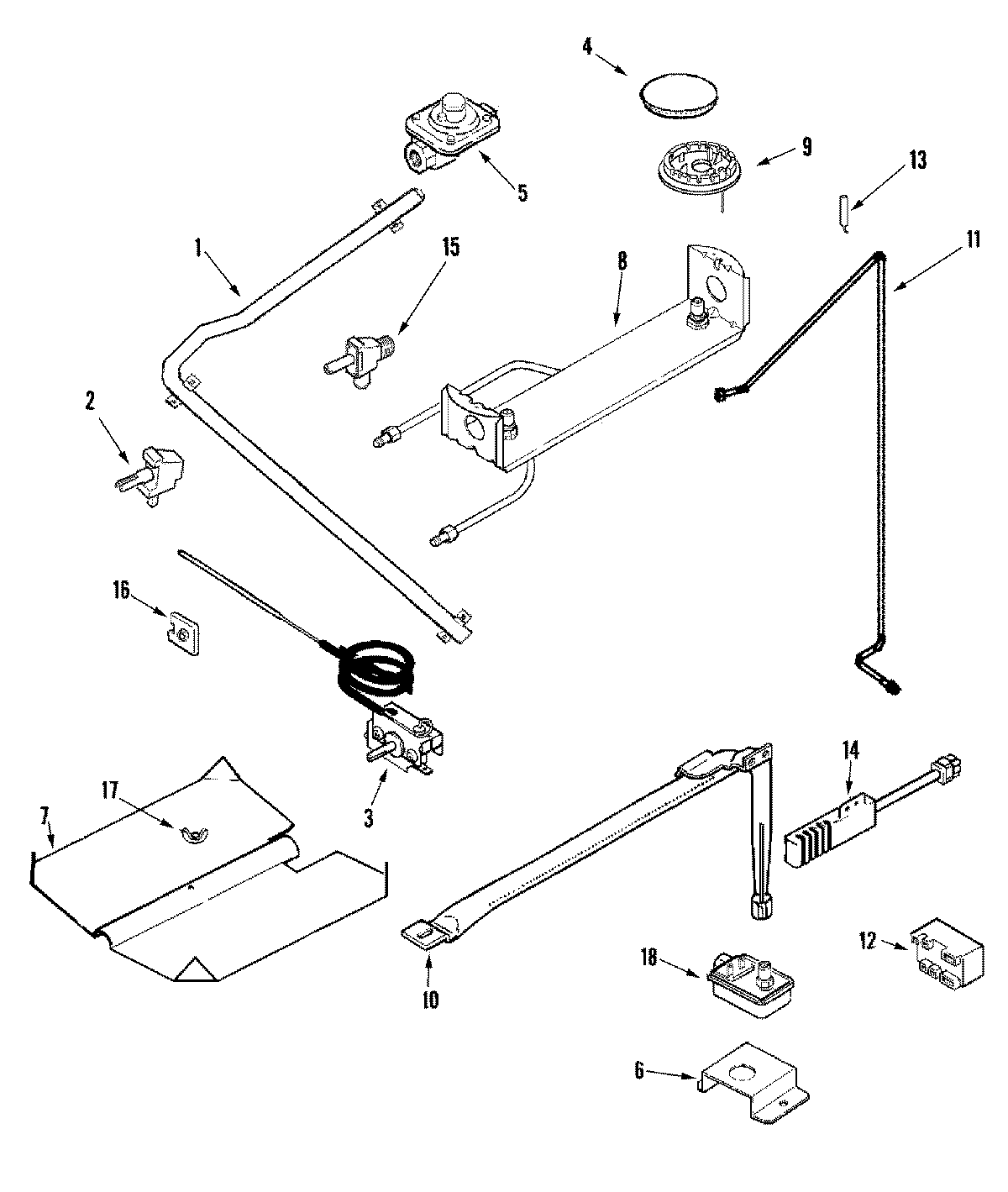

ALR1450BJW 04 – GAS CONTROLS

Products

PositionProduct
1MAY 74002454
2WP8273096 Whirlpool Screw
2MAY 74002455
3MAY 7101P280-60
3WP74002390 Whirlpool Oven Thermostat
4MAY 74007566
5MAY 74007524
6MAY 74005051
7MAY 74002393
8MAY 74007631
9MAY 7101P343-60
9MAY 74007527
9MAY 74007528
10SCREW
10MAY 74002434
11MAY 74006417
128215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
13WP8523793 Whirlpool Oven Surface Igniter
1474007498 Whirlpool Range Flat Igniter
14SCREW (10-24X5/16-NI)
15MAY 71003231
1512002280 Whirlpool Oven Valve Kit and Screw
16MAY 74007096
17NUT, WING
18MAY 74006352
