ALR5715QDS 01 – CABINET

ALR5715QDS 01 – CABINET

Written by

in

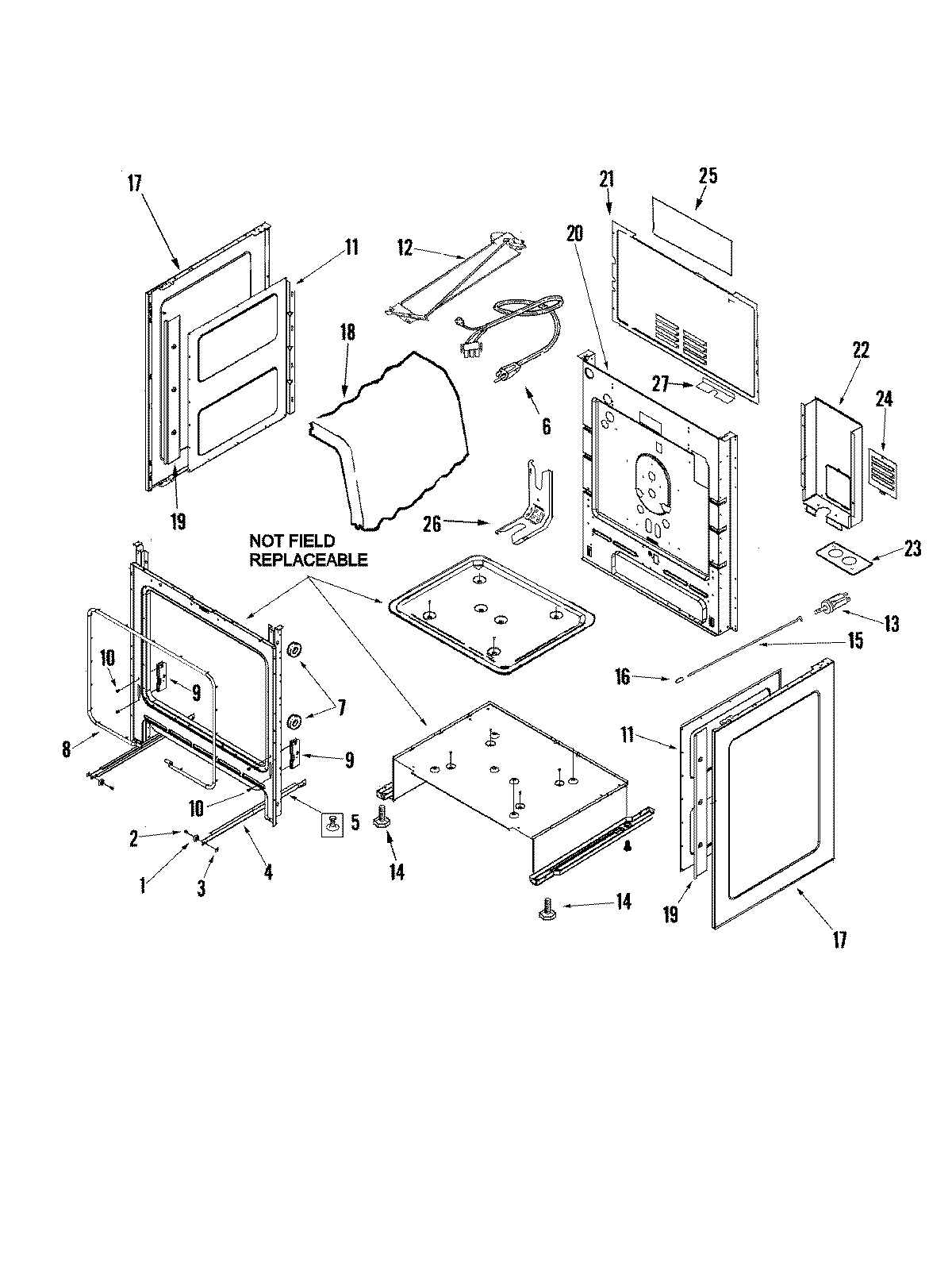

ALR5715QDS 01 – CABINET

Products

PositionProduct
1WP74004078 Whirlpool Door Roller
2SHAFT, STORAGE DRAWER ROLLER
374005230 Whirlpool Oven Lock Nut (8-32)
4RUNNER, SERVICE DRAWER
5MAY 74008688
6MAY 74008876
7SPACER, SIDE PANEL
7SCREW W/SHOULDER (No.8)
8W11562931 Whirlpool Door Gasket
9WP74010551 Whirlpool Receiver
10WP4159193 Whirlpool Screw
11MAY 74008701
11MAY 3804F316-51
12SCREW
12MAY 74008702
12MAY 8002P104-60
1274003975 Whirlpool Screw P1 (8ABX3/8-BLK)
13MAY 74008704
1374008703 Whirlpool Door Switch
1474008835 Whirlpool Clip Retainer
14W11665456 Whirlpool Range Level Foot
15MAY 74008706
15SLEEVE, ROD TUBE
1674008707 Whirlpool Oven Bumper
17MAY 7002P494-60
17MAY 74008710
18MAY 74008698
18INSULATION, WRAPPER
19MAY 74008831
19MAY 74009956
20MAY 74008828
21COVER, MAIN WIRE (ELE)
22MAY 74008760
23PLATE, CONDUIT REINFORCEMENT
24MAY 74008340
25MAY 74008858
26WP7101P485-60 Whirlpool Anchor Tip
26WP3801F656-51 Whirlpool Range Anti-Tip Bracket
27BOTTOM, REAR COVER
