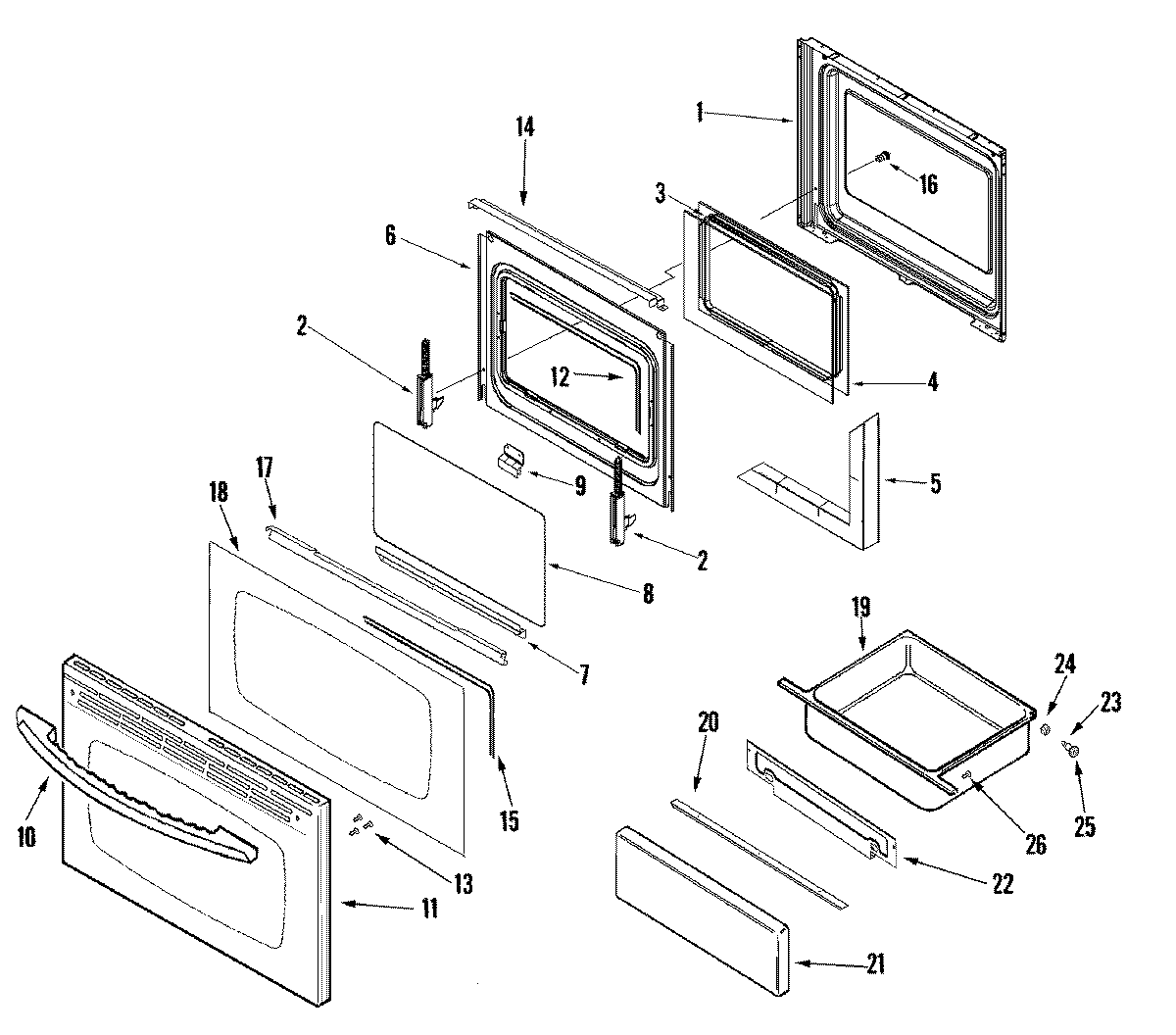

ALR5715QDS 04 – DOOR/DRAWER (STL)

ALR5715QDS 04 – DOOR/DRAWER (STL)

Written by

in

ALR5715QDS 04 – DOOR/DRAWER (STL)

Products

PositionProduct
1MAY 74008926
274010546 Whirlpool Range Oven Door Hinge
3FRAME, GLASS
474003645 Whirlpool Range Oven Door Inner Glass
5INSULATION, OVEN DOOR
6MAY 74008744
7MAY 74008745
8GLASS, DOOR
9Trim, Door Top (Black)
10MAY 74008324
11MAY 74008913
12Gasket, Window
14Baffel, Door
15WP74009029 Whirlpool Door Gasket
16SCREW (10-24X5/16-NI)
17Bracket, Glass
18MAY 74008855
19WP3405F037-80 Whirlpool Utility Drawer
19MAY 3402F037-80
19MAY 3405F037-80
20MAY 74008909
20HANDLE, DRAWER
21MAY 74009024
22MAY 74009026
23SHAFT, STORAGE DRAWER ROLLER
24WP488130 Whirlpool Air Conditioner Nut
25WP74004078 Whirlpool Door Roller
26SCREW
27WP74005546 Whirlpool RU Spacer
28MAY 74010563
