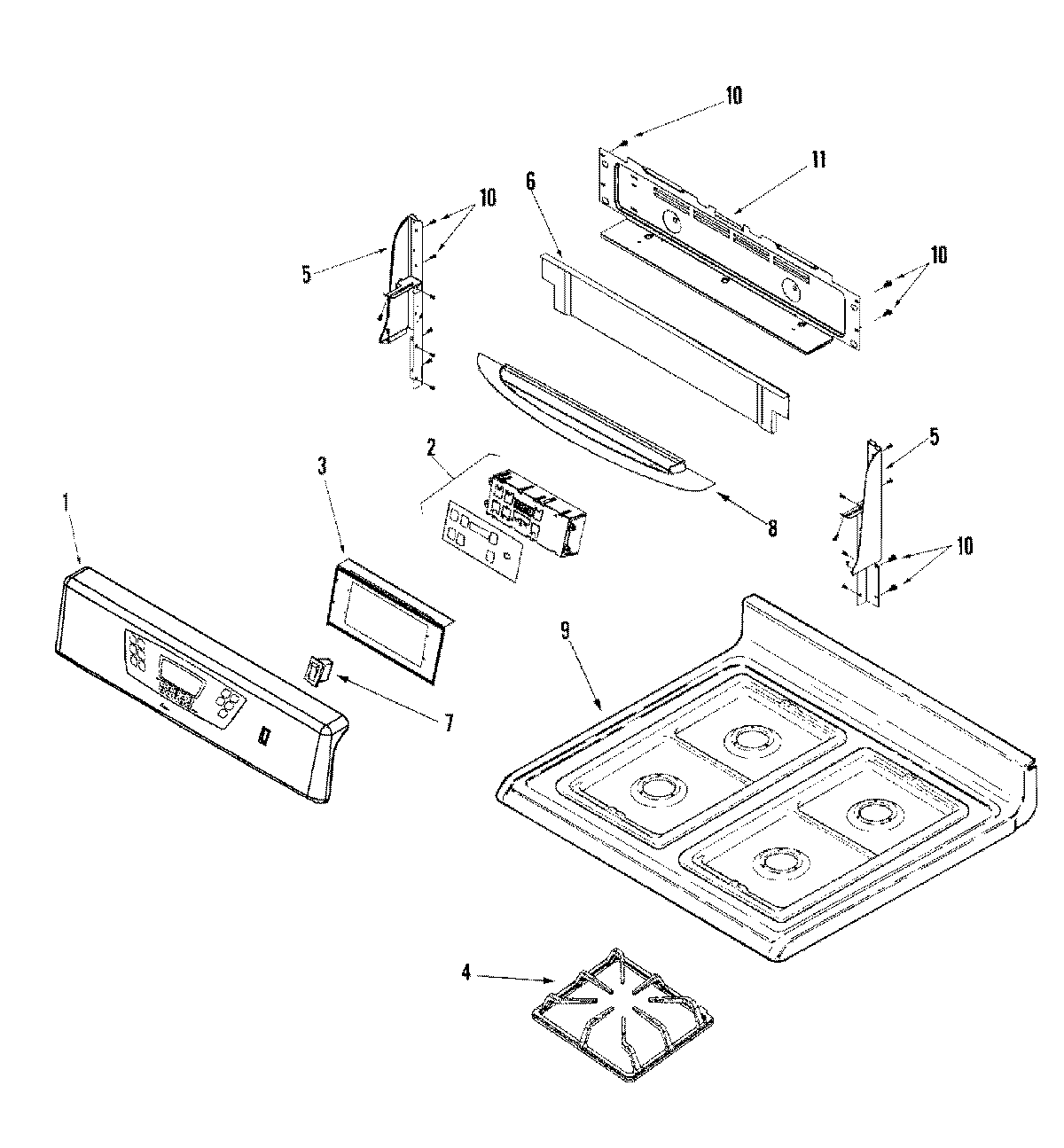

ALR5715QDW 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
NI74008761 Whirlpool Spacer Snap-In
1MAY 74008823
2WP74009217 Whirlpool Control Board
3MAY 74008716
4MAY M0275597
4W10919249 Whirlpool Burner Grate Foot
4MAY 74008868
5End Cap (Right White)
5End Cap (Left White)
6MAY 74009444
774008717 Whirlpool White Rocker Switch
8SHIELD, HEAT VISOR (WHT)
9MAY 74008844
10SCREW
11MAY 74008730
11MAY 74008836
11COVER, BROIL ACCESS FITTING
11SCREW (8BX3/8-NI)
