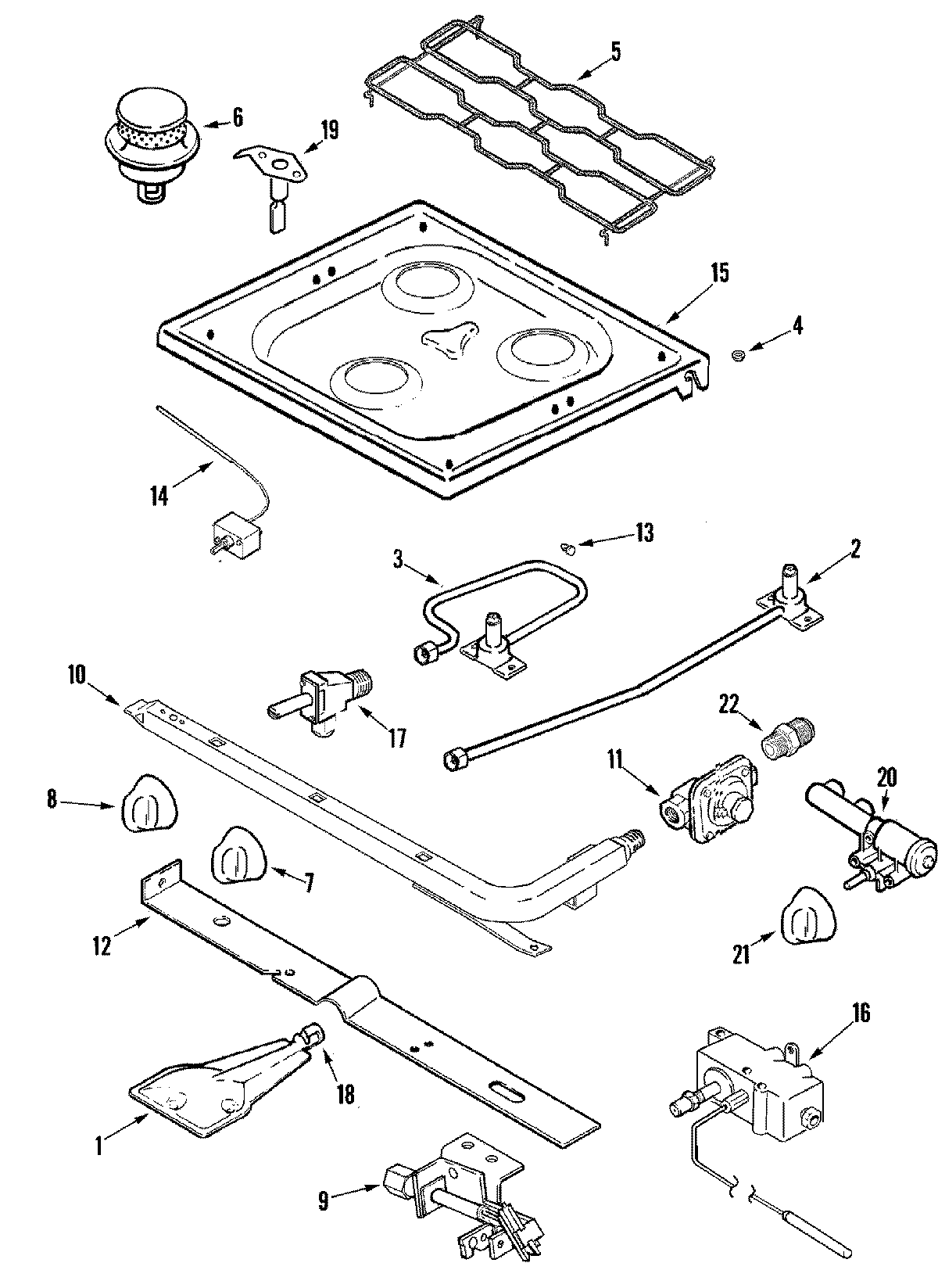

ALY2280ADQ 03 – TOP & GAS CONTROLS
Written by
in
ALY2280ADQ 03 – TOP & GAS CONTROLS
Products
Position
Product
NI
MAY 74007269
1
MAY 74003343
2
MAY 74003931
3
MAY 74003930
4
MAY Y8007P02060
5
MAY 74007305
6
MAY 74007309
7
MAY 74007284
7
MAY 74007283
8
MAY 74007282
9
MAY 74006334
9
MAY 1555261K
10
MAY 74004360
11
MAY 74004235
12
MAY 74001834
13
MAY 8003P008-60
14
MAY 74006338
14
MAY 74006332
14
MAY 1555222
14
MAY 1555280K
14
MAY 74006336
15
MAY 74007298
16
MAY 74006333
16
MAY 1555279
17
MAY 12002248
17
MAY 74004643
17
MAY 71003231
17
MAY 74004644
17
MAY 12002247
18
MAY 3411F003-34
19
74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
20
MAY 74003946
20
MAY 74003947
21
MAY 74007293
22
MAY 74004234
←
