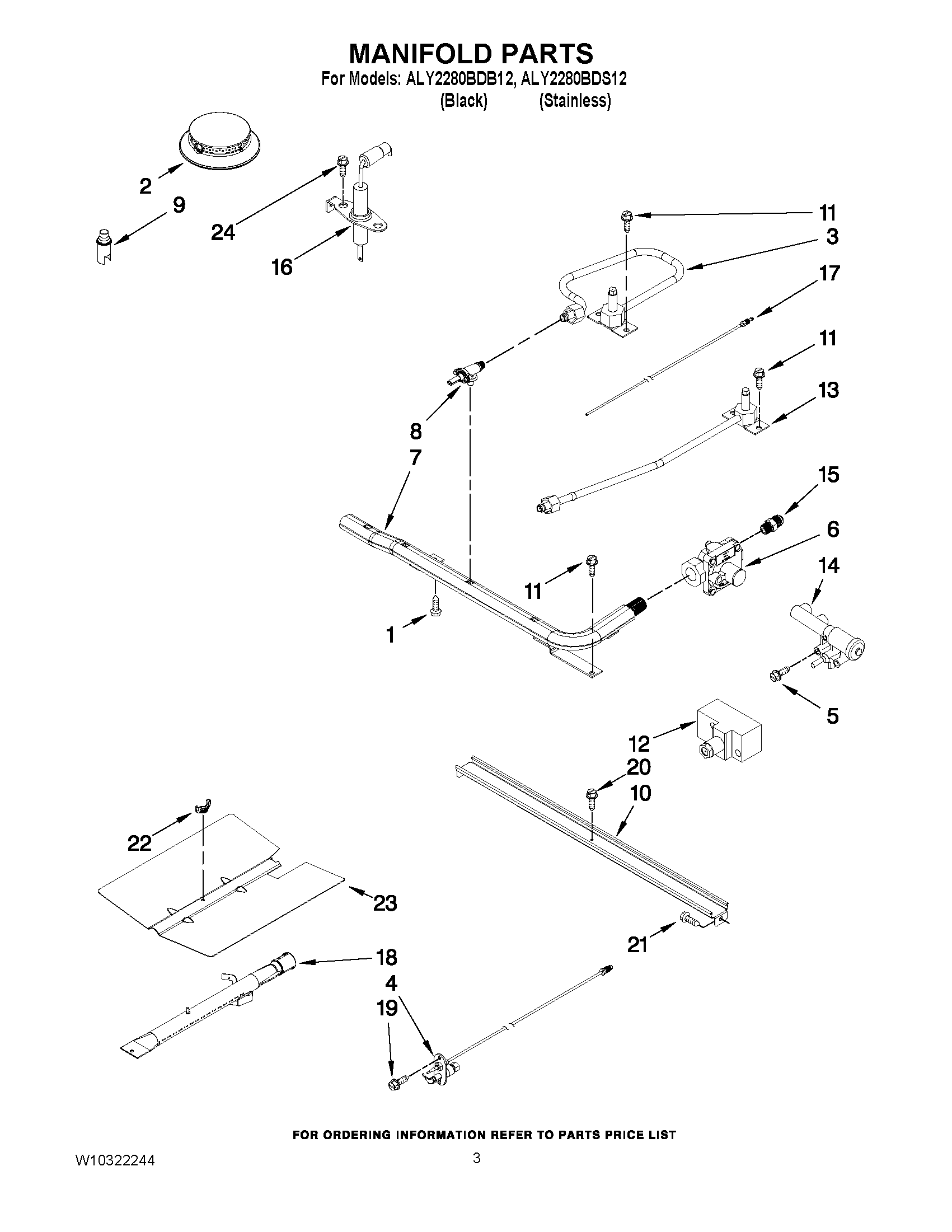

ALY2280BDB12 03 – MANIFOLD PARTS

Products

Position	Product
1	SCREW
2	MAY 3412D025-09
3	MAY 7507P253-60
4	MAY 7505P327-60
5	WPY706189 Whirlpool Stove Screw
6	MAY 7510P098-60
7	MAY 7513P467-60
8	VALVE, BURNER (FRONT)
8	VALVE, BURNER (LR, RR)
9	MAY 7538P001-60
10	MAY 3807F747-45
11	MAY 7101P376-60
12	MAY 7527P115-60
13	MAY 7507P401-60
14	IGNITOR, PIEZO
15	MAY 7507P388-60
16	BLOCK, TERMINAL W/ INGNITOR WIRES
17	MAY 7506P412-60
17	MAY 7506P414-60
18	MAY 7505P360-60
19	MAY 7101P188-60
20	SCREW (8BX3/8-NI)
21	MAY 7101P498-60
22	NUT, WING
23	MAY 3601P360-45
24	MAY 7101P335-60
