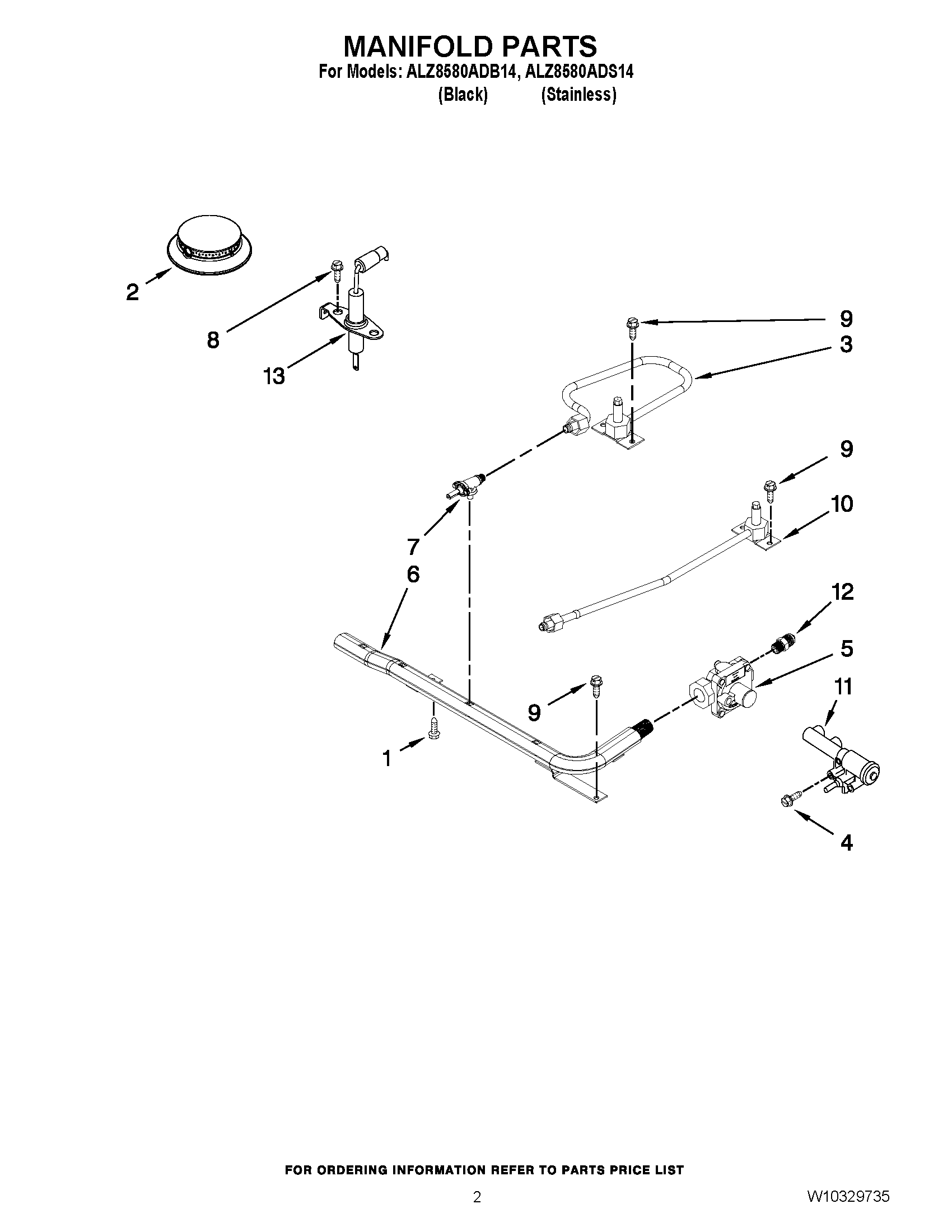

ALZ8580ADS14 02 – MANIFOLD PARTS

Written by

Products

Position	Product
1	SCREW
2	MAY 3412D025-09
3	MAY 7507P253-60
4	WPY706189 Whirlpool Stove Screw
5	MAY 7510P078-60
6	MAY 7513P476-60
7	VALVE, BURNER (FRONT)
7	VALVE, BURNER (LR, RR)
8	MAY 7101P335-60
9	MAY 7101P229-60
10	MAY 7507P401-60
11	IGNITOR, PIEZO
12	MAY 7507P280-60
13	BLOCK, TERMINAL W/ INGNITOR WIRES
