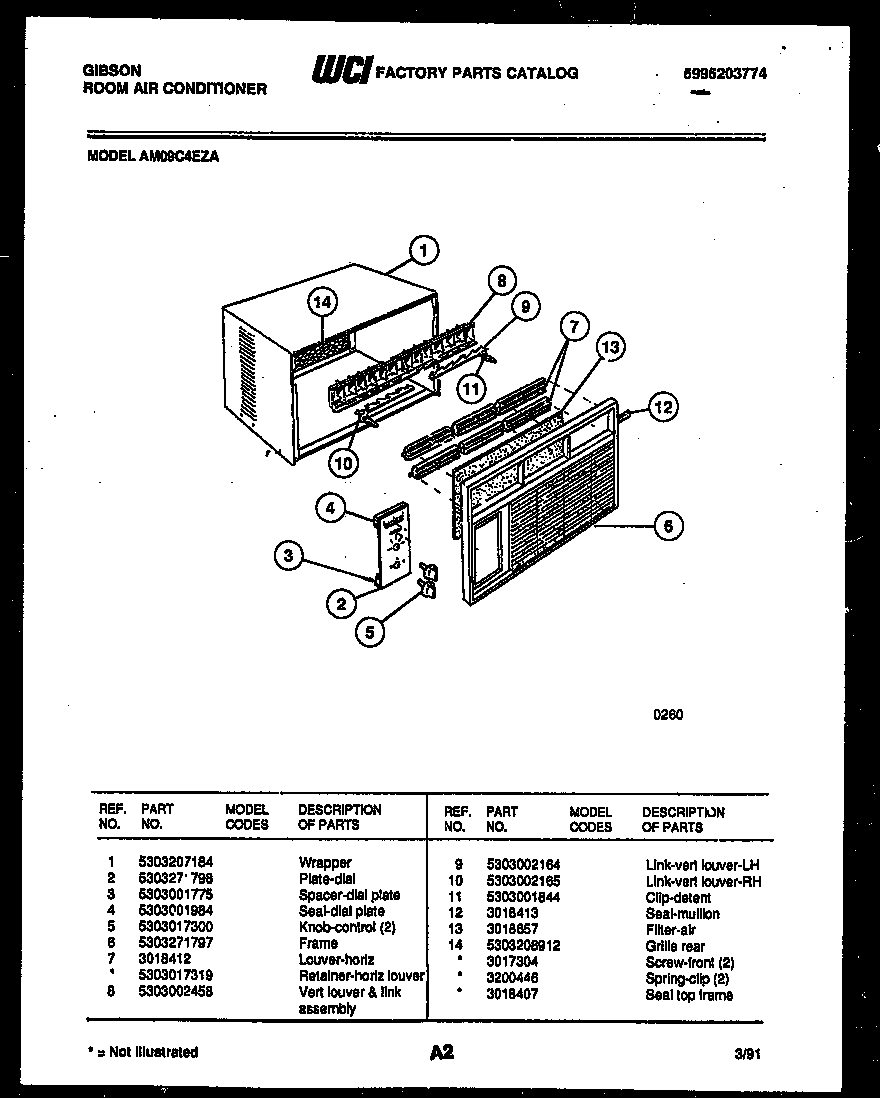

AM09C4EZA 02 – CABINET PARTS

AM09C4EZA 02 – CABINET PARTS

Written by

in

AM09C4EZA 02 – CABINET PARTS

Products

PositionProduct
*35820SEAL TOP FRAME
*35820CLIP – SPRING (NON-ILLUSTRATED)
*35820WCI 3017304
1WCI 5303207184
2WCI 5303271798
3WCI 5303001775
4WCI 5303001984
5WCI 5303017300
6WCI 5303271797
7LOUVER-HORIZ
7ARETAINER-LOUVER HORIZONTAL
8VERT. LOUVER & LINK ASSY.
9LINK – VERT LOUVER RH
10LINK VERTICAL LOUVER LH
11WCI 5303001844
12WCI 3018413
13WCI 3018657
14GRILL
