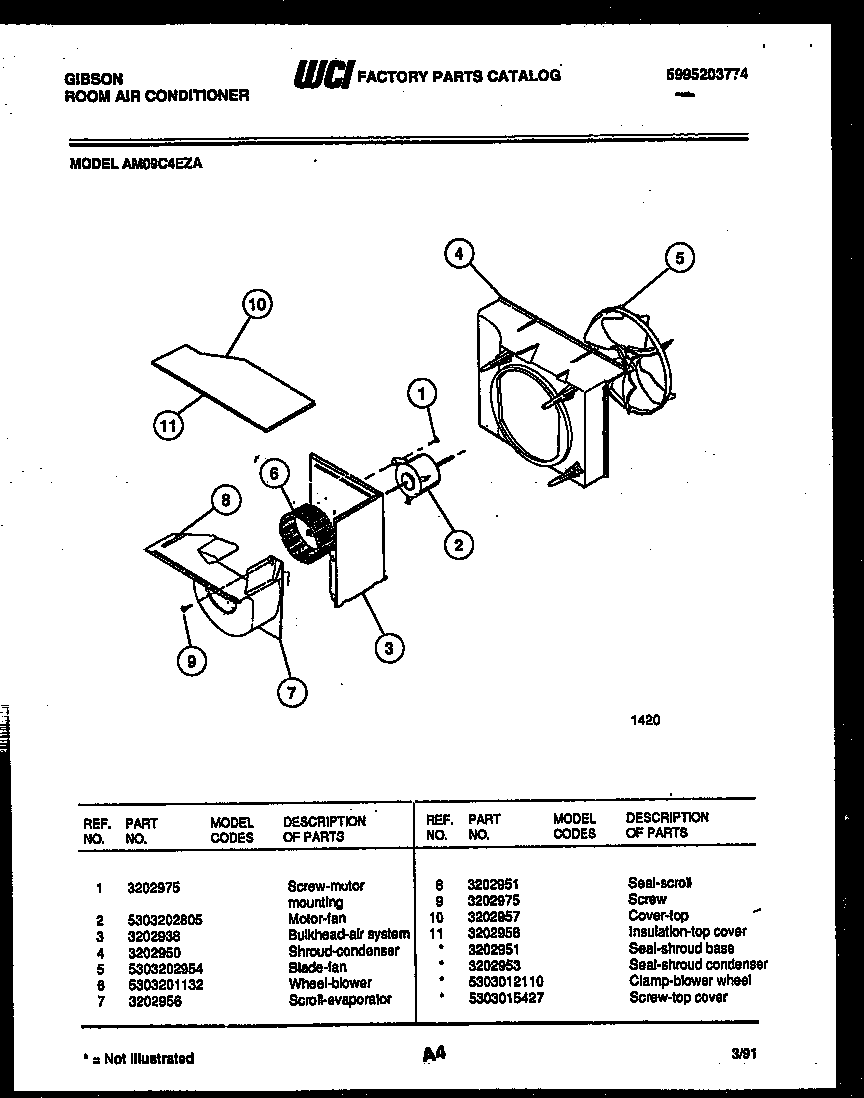

AM09C4EZA 04 – AIR HANDLING PARTS

Products

Position	Product
*35827	134178901 Frigidaire Screw
*35827	WCI 5303012110
*35827	SEAL-SHROUD COND
2	WCI 5303202805
3	BULKHEAD-AIR SYSTEM
4	WCI 3202950
5	BLADE-FAN
6	WCI 5303201132
7	WCI 3202956
8	SEAL-CONDENSER BASE (NON-ILLUSTRATED)
9	131202300 Frigidaire Screw
10	WCI 3202957
11	PAD - COVER
