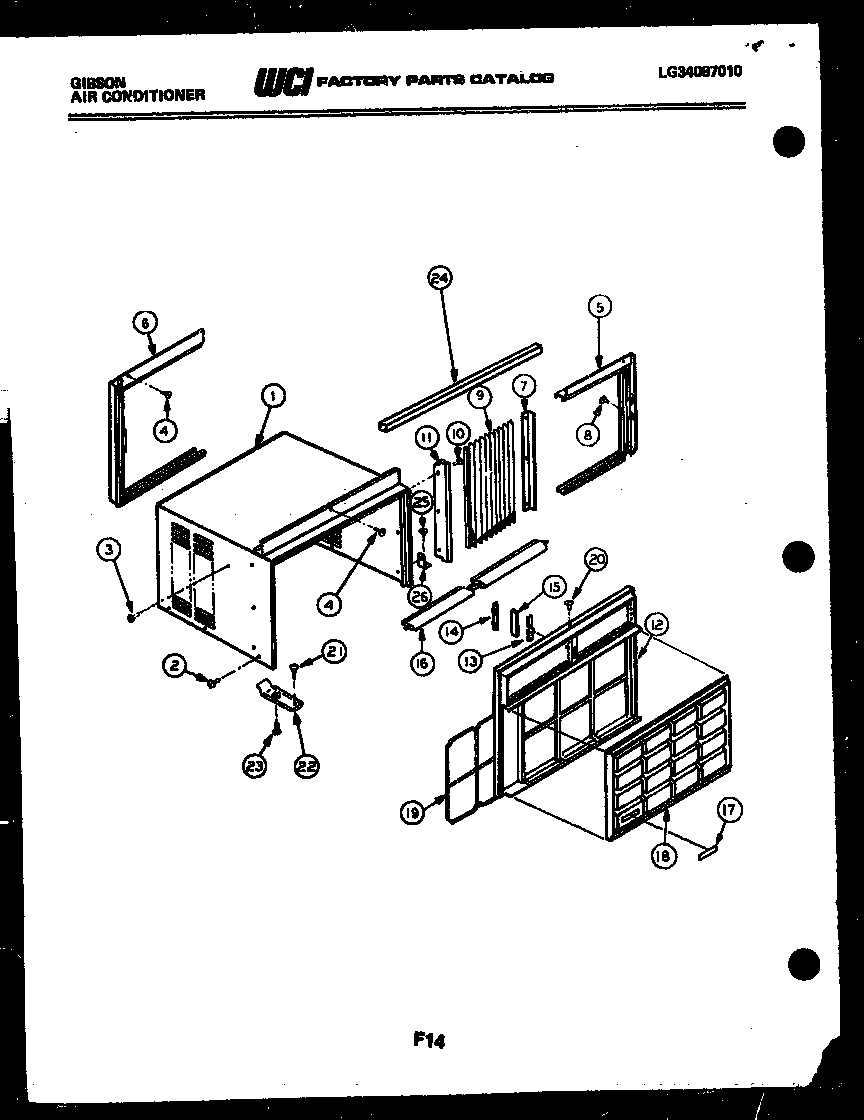

AM10C6ETBA 02 – CABINET PARTS

Products

Position	Product
1	SHELL-CABT
4	WCI G100822
5	WCI G145321-04
6	WCI G145327-04
7	RETAINER-PNL
8	154419403 Frigidaire Dishwasher Screw
9	WCI G126809
10	WCI G516369
11	RETAINER-TO SHELL
12	FRONT-PNL
13	LOUVER-RACK HORIZ
14	RETAINER-LOUVER
15	WCI G150774-01
16	LOUVER-HORIZ (4)
17	PLATE-NAME
18	DOOR-FRT PNL
19	FILTER-AIR
20	SCREW-FRT PNL
21	WCI G100817
22	BRACKET-SUPT
23	WCI G513456
24	WCI G145337-04
25	WCI G100773
26	BRACKET-BASE
27	SHEET-INSTL (NON-ILLUSTRATED)
28	OWNERS MANUAL (NON-ILLUSTRATED)
29	WCI G522447-29
30	WCI G522449-19
