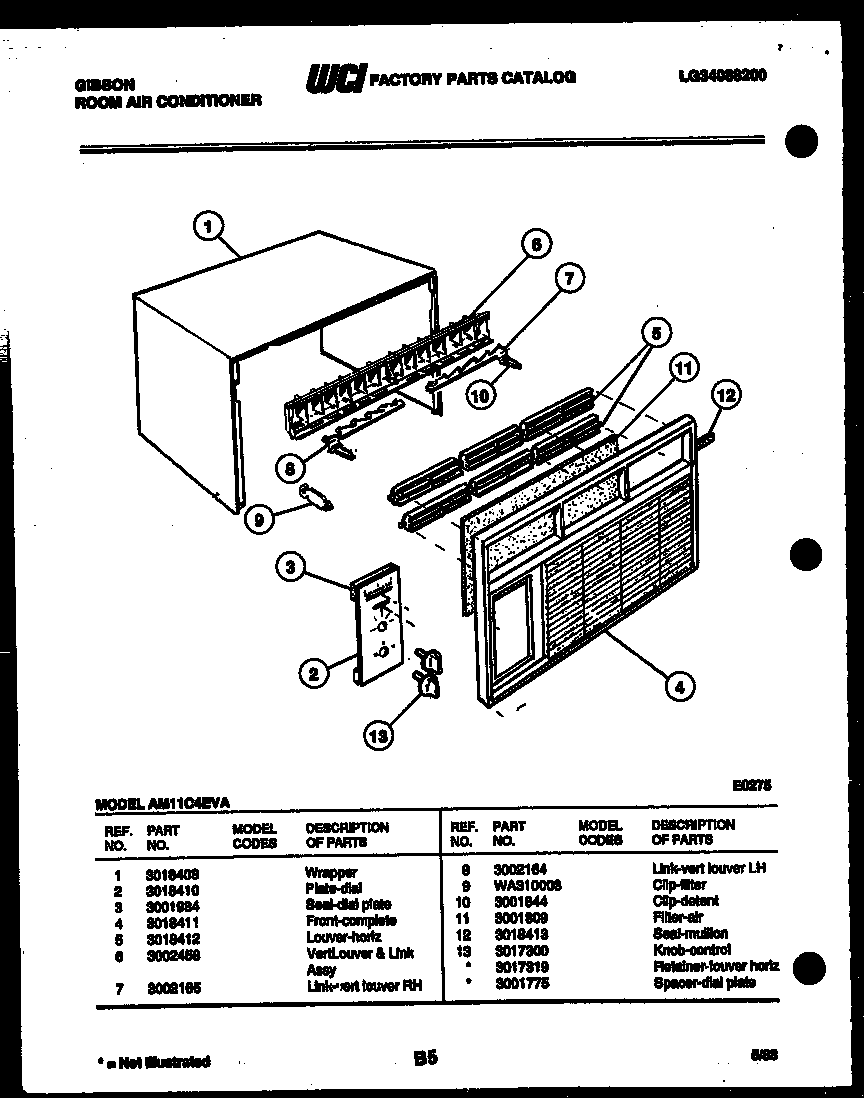

AM11C4EVA 02 – CABINET PARTS

Written by

Products

Position	Product
*85648	SPACER-DIAL PLATE, ( NON-ILLUSTRATED)
*85647	RETAINER-HORIZONTAL LOUVER (NON-ILLUSTRATED)
1	WRAPPER
2	WCI 3018410
3	SEAL-DIAL PLATE
4	WCI 3018411
5	LOUVER-HORIZ
6	VERT LOUVER AND LINK ASSY
7	LINK- VERT LOUVER LH
8	LINK-VERT LOUVER RH
9	CLIP-RETAINER
10	CLIP-DETENT
11	WCI 3001809
12	WCI 3018413
13	WCI 3017300
