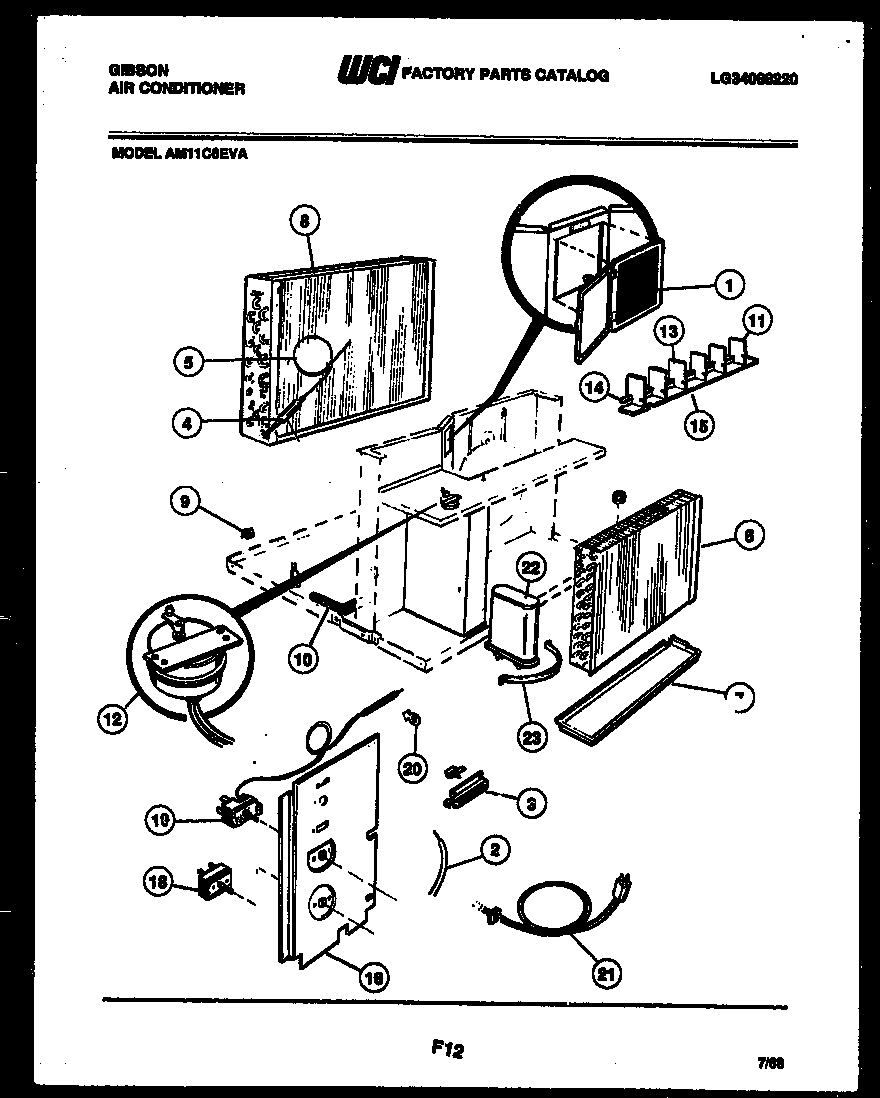

AM11C6EVA 04 – ELECTRICAL PARTS

Products

Position	Product
1	WCI 3012455
2	WCI 3002132
3	WCI 3001848
3A	ARM-ACTUATOR (NON-ILLUSTRATED)
4	5300265301 Frigidaire Air Conditioner P1 Filter Drier
5	TUBE-CAPILLARY (CUT TO 35“)
6	WCI 3002273
7	WCI 3002332
8	WCI 3002247
9A	WCI 3014757
9	WCI G521772
10	TUBE-DRAIN
11	LOUVER-ASM
12	MOTOR-DRIVE
13	DIVIDER – VERTICAL
14	WCI 3001835
15	LINK-CONNECTING
16	WCI 3018544
17A	SPACER-SLIDE SWITCH (NON-ILLUSTRATED)
17	SWITCH-SLIDE
18	SWITCH
19A	SLEEVE-CONTROL TUBE (NON-ILLUSTRATED)
19	WCI 3002079
20	CLIP-RETAINER
21	WCI G521779
22	CAPACITOR-DUAL
23	WCI 3001770
