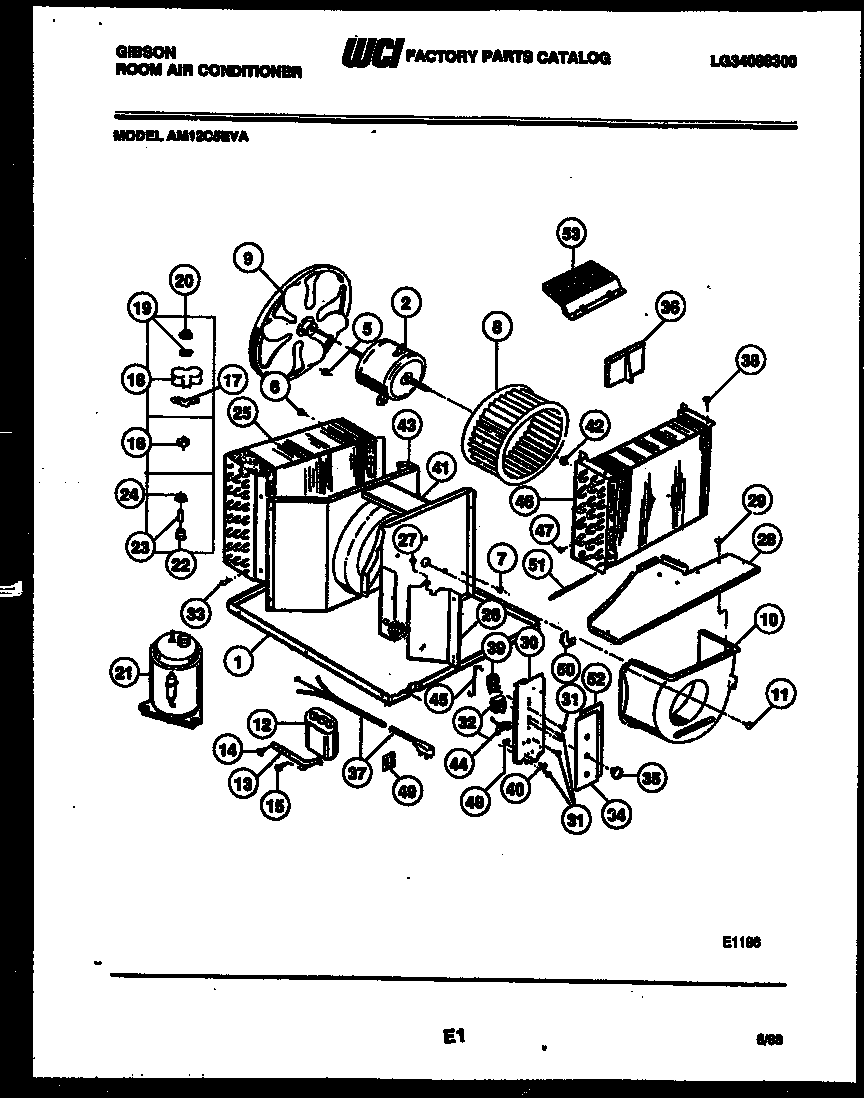

AM12C5EVA 03 – ELECTRICAL AND AIR HANDLING PARTS

Products

Position	Product
1	MOTOR-FAN
2	WCI G522999
5A	WCI G522077
5	NUT – MOTOR MTG. (3)
7	SCRW-NO. 8 X 3/8 (4)
8	WCI G515078
9	FAN-SLINGER RING
10	WCI G156880
12	WCI G519417-07
13	STRAP-CAPACITOR
15	SCREW-STRAP
16	WCI G519630-09
17	GASKET-COVER
18	COVER-TER.
19	CAP-TER. COVER
20	WCI G519950
21	WCI G520195-04
22	GROMMET – COMPRESSOR (3)
23	WCI G516954
24	WCI G522592
25	WCI G523242
26	WCI G520809
28	DUCT-BOTTOM
30	WCI G521002
31	SCRW-CNTRL (4)
32	SWITCH-5 POS
33	STRAINER-FILTER
34	WCI G521127
35	WCI G110846
36	WCI G501587
37	WCI G506345-55
39	WCI G520390
40	SCREW-CLAMP
41	WCI G516337-02
42	CLAMP-CMPR RING
43A	WCI G521208
43	SHROUD-COND
44	CONTROL-AIR
45	WCI G520208
46	WCI G522921
47	TUBE – EVAP. INLET (2)
48	WCI G513721
49	SPACER-BULB
50	WCI G522065
51	CAPILLARY TUBE
52	PAD-CNTL PNL
53	GUARD-BLO (NON-ILLUSTRATED)
