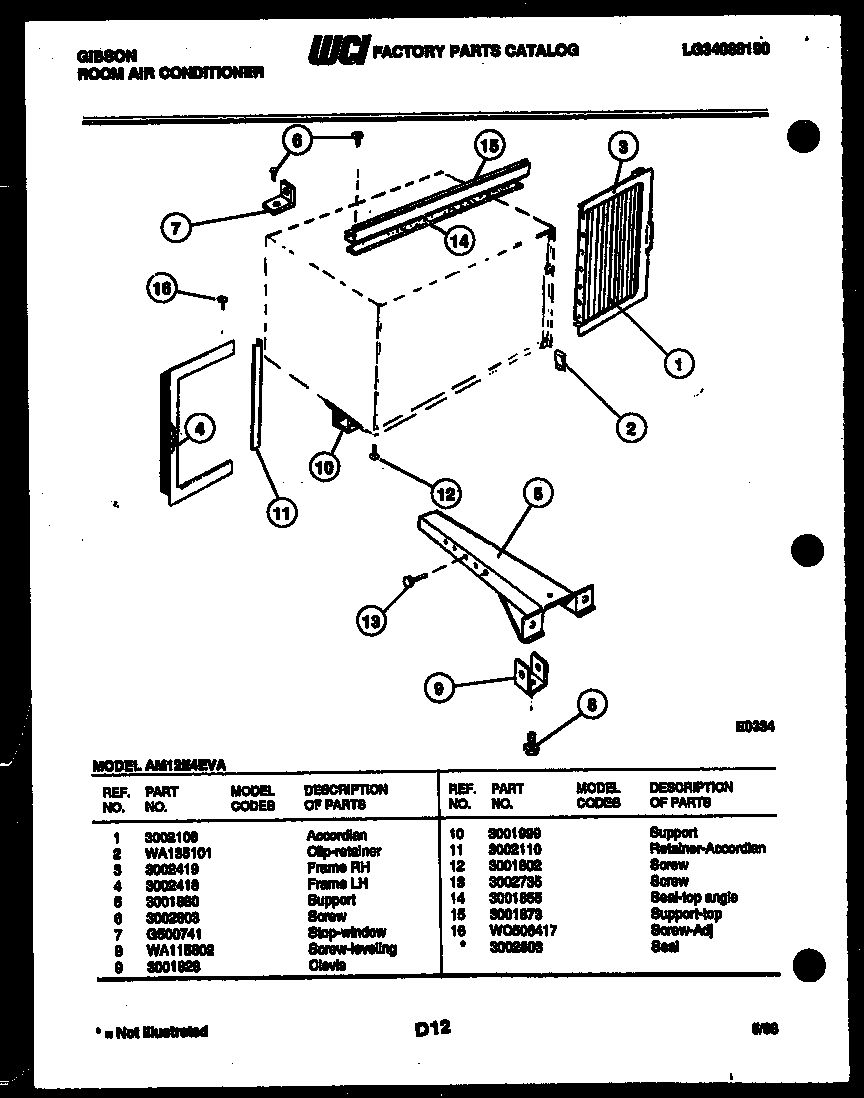

AM12E4EVA 06 – CABINET AND INSTALLATION PARTS

AM12E4EVA 06 – CABINET AND INSTALLATION PARTS

Written by

in

AM12E4EVA 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
1WCI 3002108
2CLIP-RETAINER
3WCI 3002419
4WCI 3002418
5WCI 3001880
6SCREW-WOOD
7BRACKET-BASE
8SCREW-LEVELING
9CLEVIS
10SUPPORT-BOTTOM
11WCI 3002110
12SCREW (2)
13WCI 3002735
14WCI 3001855
15SUPPORT-TOP
16SCREW-ADJUSTMENT
