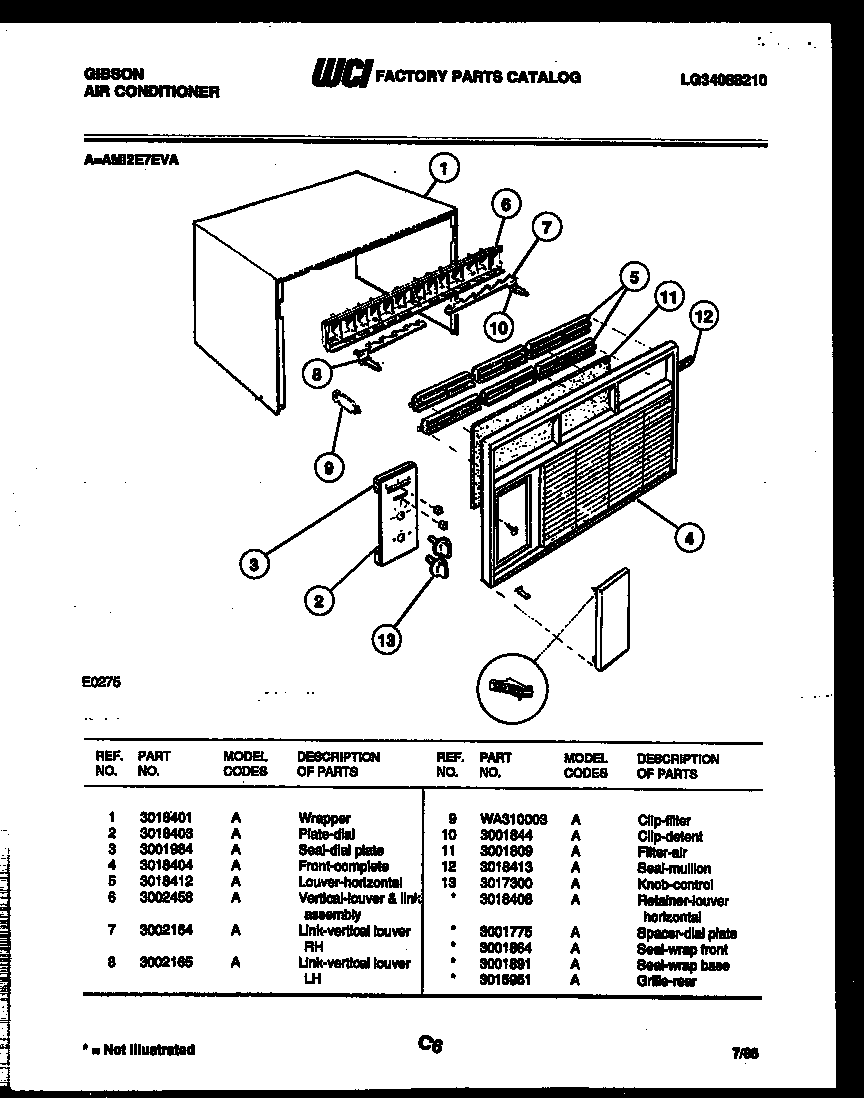

AM12E7EVA 02 – CABINET PARTS

Products

Position	Product
*10520	SPACER-DIAL PLATE, ( NON-ILLUSTRATED)
*10520	RETAINER-LOUVER HORIZONTAL
*10520	WCI 3001891
*10520	WCI 3001864
*10521	GRILL-REAR
1	WCI 3018401
2	PLATE-DIAL
3	SEAL-DIAL PLATE
4	WCI 3018404
5	LOUVER-HORIZ
6	VERT LOUVER AND LINK ASSY
7	LINK-VERT LOUVER RH
8	LINK- VERT LOUVER LH
9	CLIP-RETAINER
10	CLIP-DETENT
11	WCI 3001809
12	WCI 3018413
13	WCI 3017300
