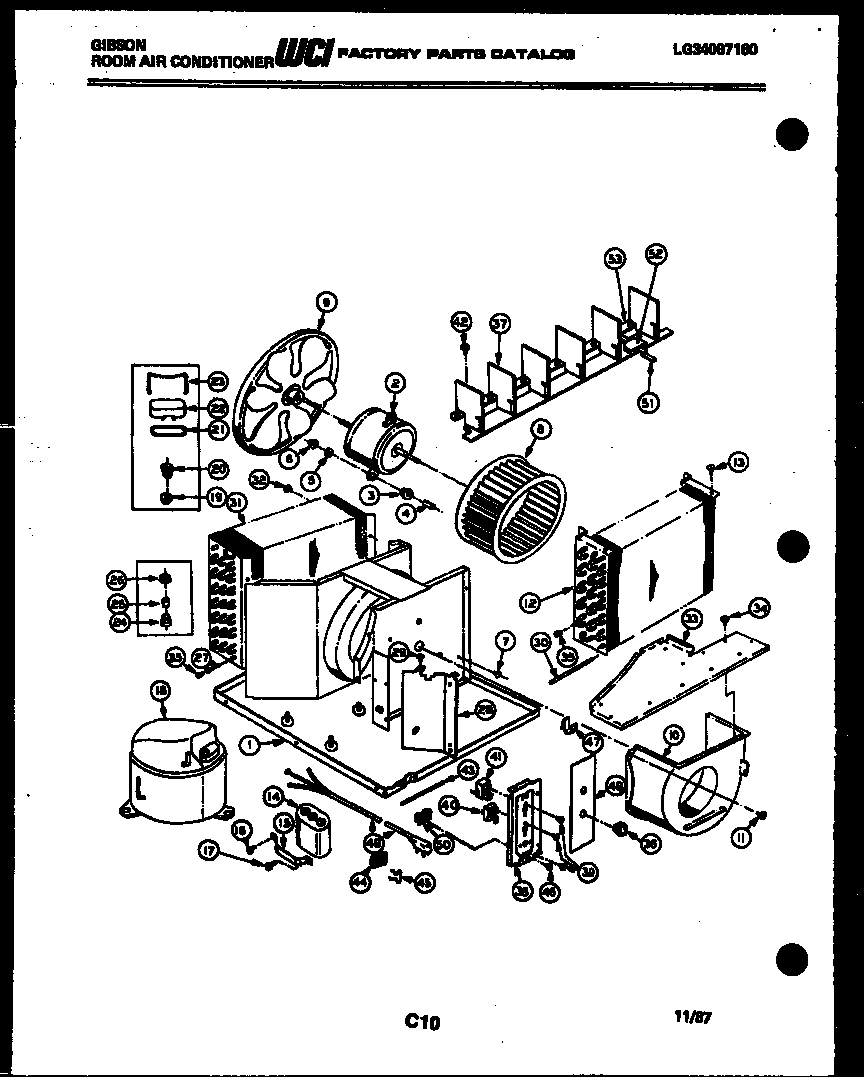

AM16E4RTBA 03 – ELECTRICAL AND AIR HANDLING PARTS

Products

Position	Product
1	WCI G522802
2	WCI G522697
4A	154419403 Frigidaire Dishwasher Screw
5A	GUARD-BLO (NON-ILLUSTRATED)
6	WCI G522077
7	WCI G500638
8	WCI G515078
9	FAN-SLINGER RING
10	WCI G156880
12	WCI G522921
14	WCI G519417-05
15	STRAP-CAPACITOR
17	WCI G501784
18	COMPRESSOR
19	OVERLOAD
20	WCI G515921
21	WCI G515924
22	COVER-TERM
23	GASKET-CVR NUT
24	GROM-COMPR (3)
25	SLEEVE-COMPR
26	NUT-COMPR (3)
27	STRAINER-FILTER
28	COVER-CNTL
29	SCREW (19)
30	WCI G144044-26
31	WCI G518232
33	DUCT-BOTTOM
35	WCI G158416-01
36	KNOB-CNTL
37	WCI G157081
38	PNL-CONTRL MTG
39	SCRW-CNTRL (4)
40	SW-ROTARY-5 POS. (NON-ILLUSTRATED)
41	WCI G520390
42	SCREW
43	WCI G33375
44	WCI G136662
45	SPACER-RETAINER
46	WCI G508454
47	CLIP-RET (2)
48	WCI G522660
49	WCI G506345-13
50	WCI G513721
51	WCI G157082-01
52	WCI G157083
53	LINK-LOUVER CONN.
54A	SHROUD-COND
55A	SCREW-MTR GRD
56A	BRACKET-SUPPORT (NON-ILLUSTRATED)
57A	WCI G521208
