AM24LP2VHA ROOM AIR CONDITIONER

Written by

Products

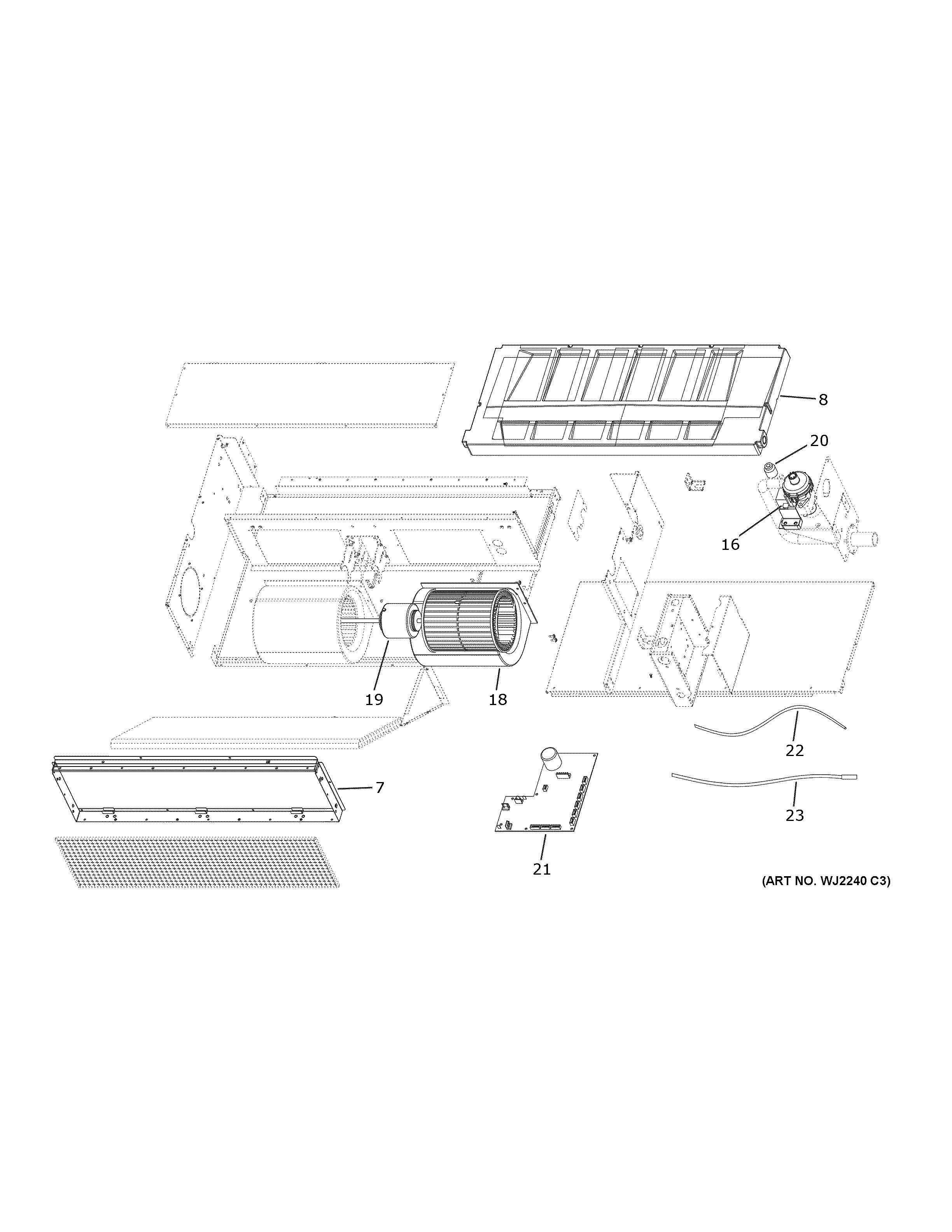

Position	Product
7	WJ71X23561 GE Air Inlet Frame
8	CONDENSATE PAN
16	CONDENSATE PUMP
18	WJ73X23576 GE Indoor Fan
19	INDOOR FAN MOTOR
20	WJ27X22611 GE Float Switch
21	WJ26X23580 GE Power Control Board
22	WJ26X23177 GE Temperature Sensor Pipe
23	WJ26X23175 GE Ambient Temperature Sensor
