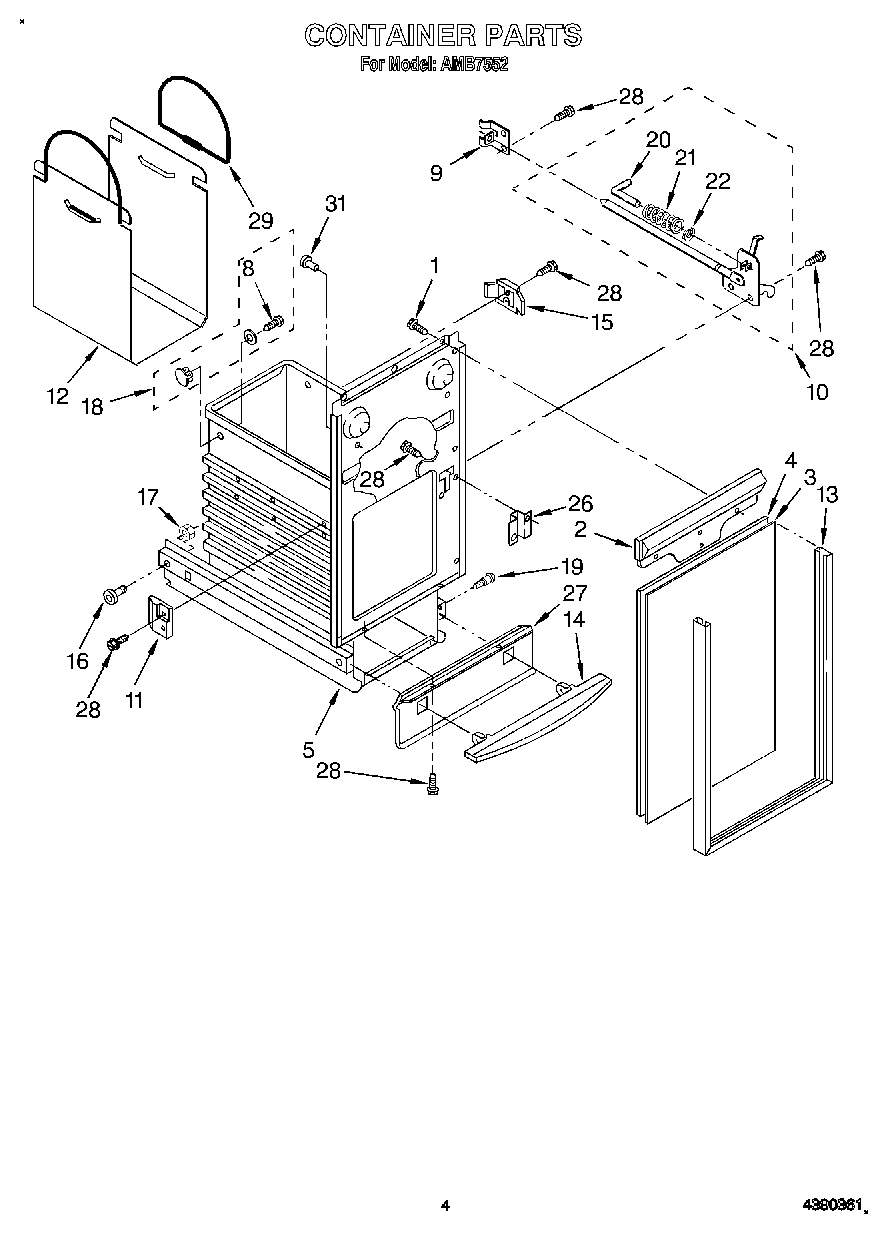

AMB7552 04 – CONTAINER

AMB7552 04 – CONTAINER

Written by

in

AMB7552 04 – CONTAINER

Products

PositionProduct
2WP608732 Whirlpool Compactor Handle
3Panel, Container Front (Black & White)
4Spacer, Center Panel
5Container Assembly
8Screw
9WP776395 Whirlpool Compactor Guide
10675379 Whirlpool Compactor Drawer Latch
11Guide, Container (2)
1213030RP Whirlpool Compactor Bag Caddy
13Trim, Container
14W11679165 Whirlpool Foot Pedal
159871125 Whirlpool Compactor Actuator
16WP9871602 Whirlpool Compactor Bearing
17WP776356 Whirlpool Compactor Nut
18RETAINER, BAG
19WP780263 Whirlpool Compactor Screw
20Pin
21775736 Whirlpool Compactor Spring
22Ring, “E“
26775665 Whirlpool Compactor Plate Latch
27WP777328 Whirlpool Compactor Guard
28WP489069 Whirlpool Compactor Screw
29WP777108 Whirlpool Compactor Bag Handle
31Bumper, Container (2)
