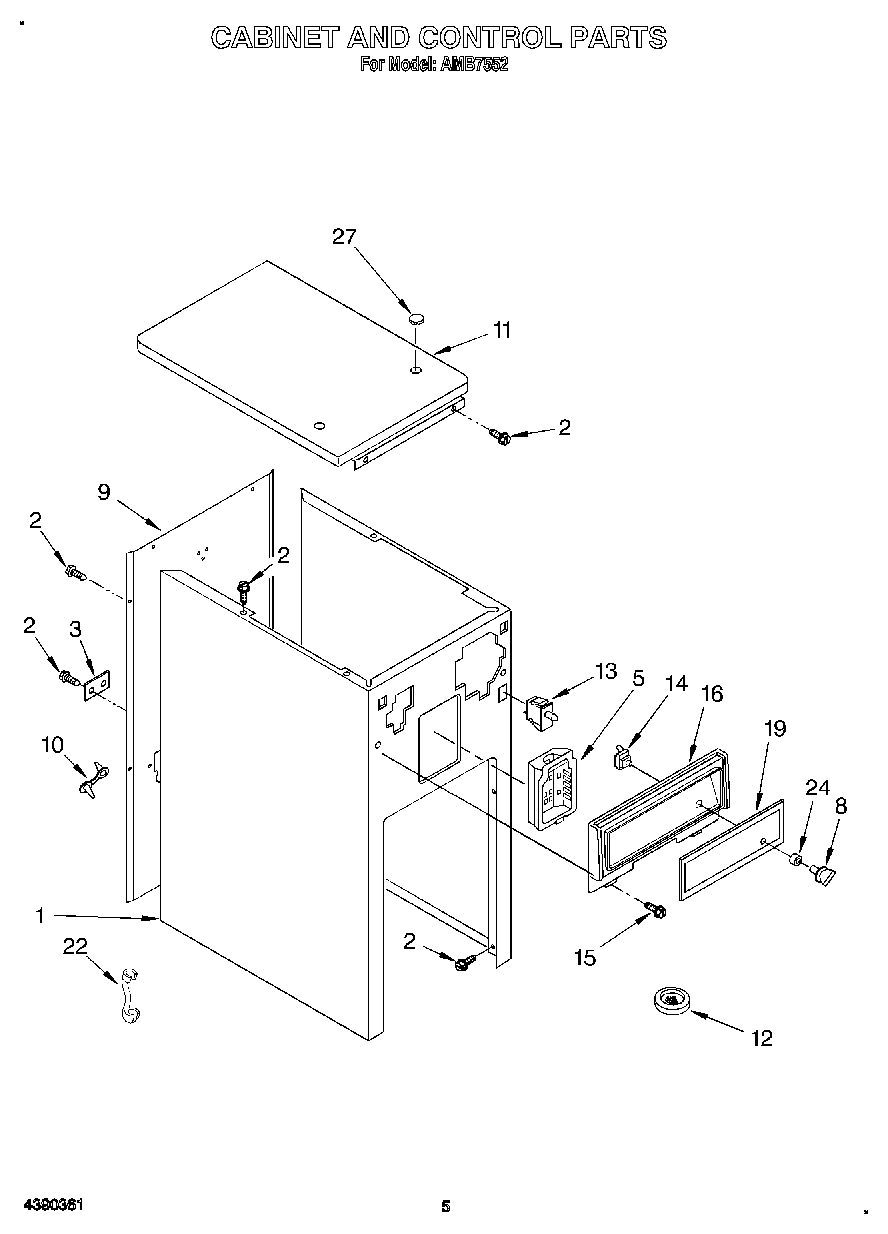

AMB7552 05 – CABINET AND CONTROL

AMB7552 05 – CABINET AND CONTROL

Written by

in

AMB7552 05 – CABINET AND CONTROL

Products

PositionProduct
1WP9870913 Whirlpool Cabinet
2WP489069 Whirlpool Compactor Screw
3Plate, Power Cord
5Holder, Deodorant Storage
8WP4154444 Whirlpool Compactor Control Knob
9Panel, Back
10Clamp, Wire
11WP9870865 Whirlpool Compactor Top
12Deodorizer, Solid Stick-Ups (2-Pack)
13WP4387911 Whirlpool Refrigerator Switch
14675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
15Screw, 6-20 x 3/8 (2)
16Escutcheon, Control
19Insert, Decorative
22Bushing, Power Cord
24WP777383 Whirlpool Compactor Nut
274151479 Whirlpool Compactor Button Plug
