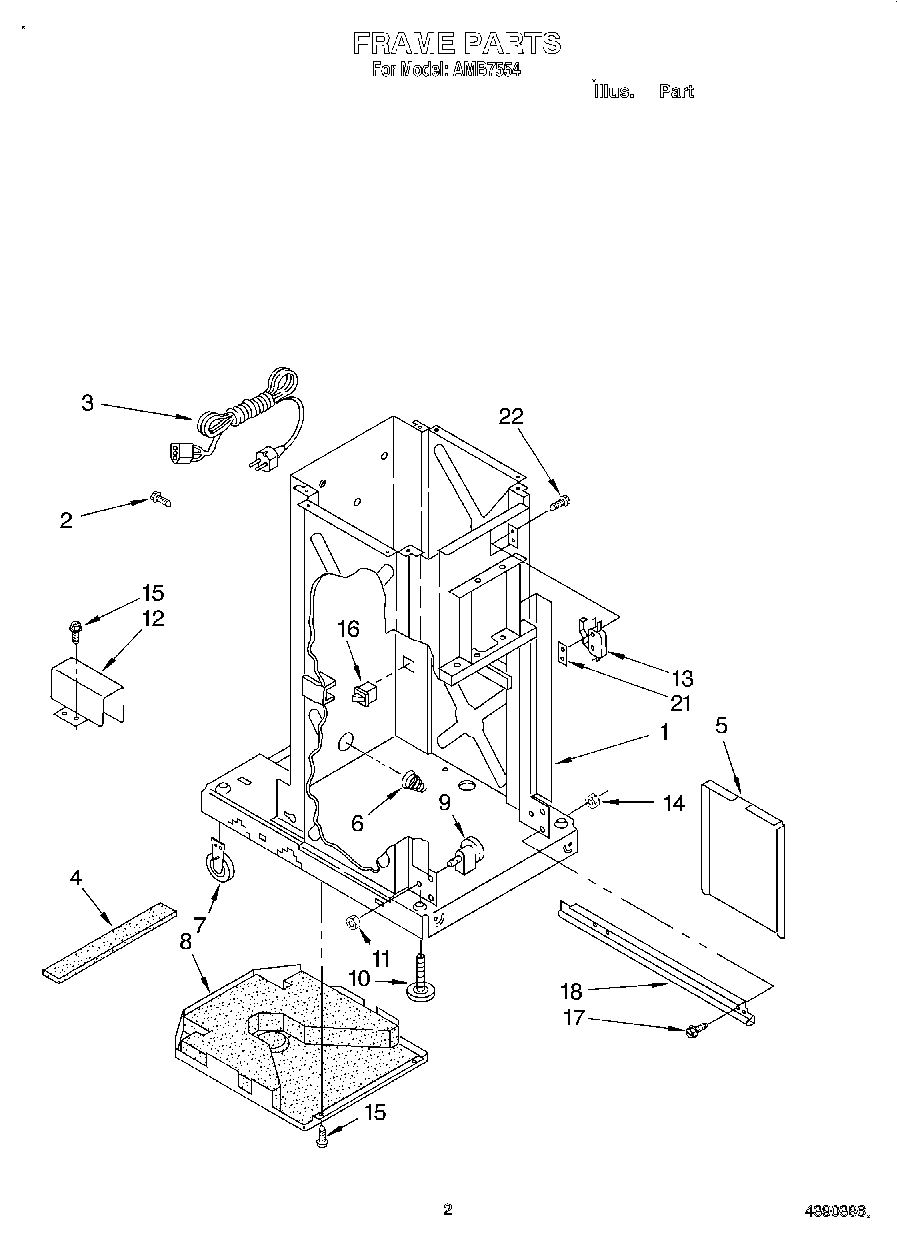

AMB7554 02 – FRAME

AMB7554 02 – FRAME

Written by

in

AMB7554 02 – FRAME

Products

PositionProduct
1Frame (Not a Serviceable Part)
2WP488234 Whirlpool Air Conditioner Screw
3Cord, Power
4Barrier, Glass
5WP9870444 Whirlpool Compactor Inner Panel
6WP777180 Whirlpool Compactor Spring
7W11023674 Whirlpool Compactor Leveling Wheel
8WP780437 Whirlpool Compactor Bottom Pan
9882688 Whirlpool Compactor Bearing
10WPW10001130 Whirlpool Leveling Leg
11WP776356 Whirlpool Compactor Nut
129870867 Whirlpool Shield
13WP777811 Whirlpool Compactor Directional Switch
14Nut, 6-32 (4)
15WP489069 Whirlpool Compactor Screw
16WP4387911 Whirlpool Refrigerator Switch
17WP486754 Whirlpool Compactor Screw
18WP9870975 Whirlpool Compactor Slide
18SLIDE
21Plate, Nut
22777849 Whirlpool Compactor Screw
