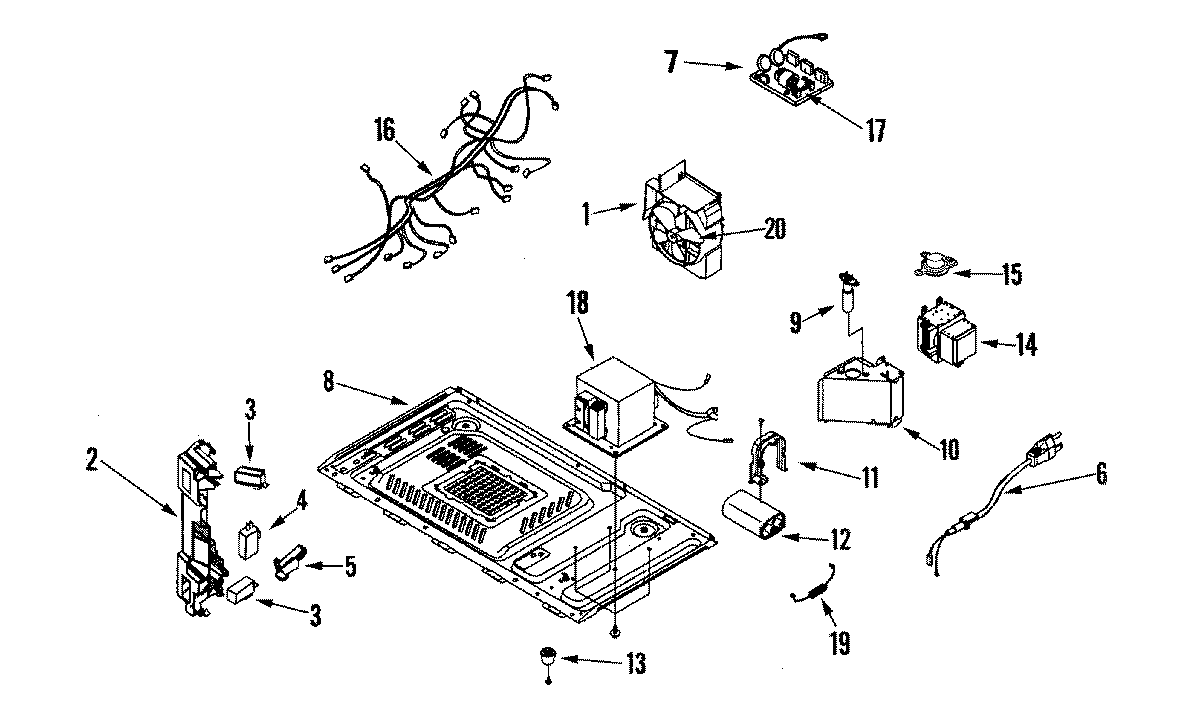

AMC2206BAB 03 – INTERNAL CONTROLS/LATCH ASY./BASE

AMC2206BAB 03 – INTERNAL CONTROLS/LATCH ASY./BASE

Written by

in

AMC2206BAB 03 – INTERNAL CONTROLS/LATCH ASY./BASE

Products

PositionProduct
1MAY DE71-00165A
1MOTOR-FAN
2MAY DE72-00138A
3WP3405-001034 Whirlpool Microwave Switch
4MAY 3405-001033
5MAY DE66-00088B
6ASY POWER CORD
7ASSY NOISE FILTER
8BASE-PLATE
9LAMP-INCANDESCENT
10COVER-AIR
11BRACKET-HVC
122501-001016 Samsung Capacitor
13FOOT
14WPW10126794 Whirlpool Microwave Magnetron
16HARNESS, WIRE
16MAY W10261281
173601-001198 Samsung Fuse Cartridge
18DE26-00061B Samsung Transformer H.V
19DE91-70063D Samsung Oven Microwave High Voltage Diode
20BLADE, FAN
