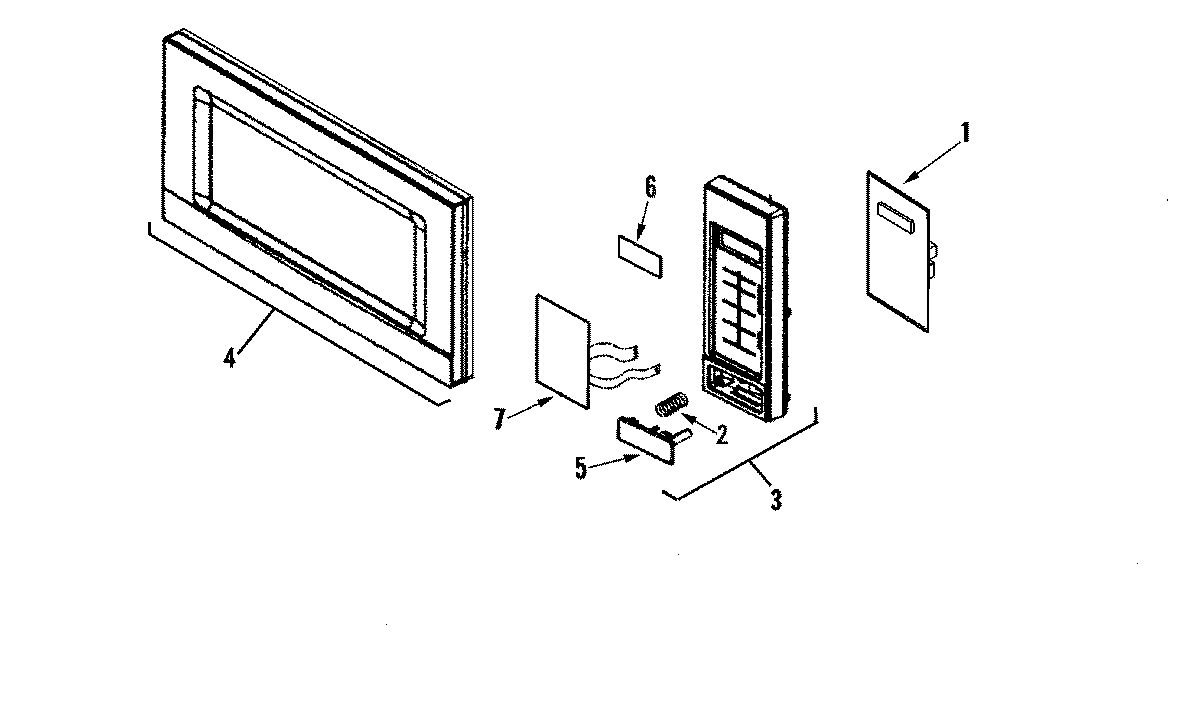

AMC2206BAS 02 – CONTROL PANEL/DOOR ASSEMBLY

Written by

Products

Position	Product
1	MAY RAS-5200-00
1	MAY W10261245
2	SPRING-BUTTON
3	MAY W10261265
3	DE94-01387C Samsung Assembly Control Panel (STL)
4	DE94-01342C Samsung Assembly Door
5	PUSH-BUTTON (BLK)
6	WINDOW-DISPLAY
7	SWITCH, MEMBRANE (BLACK)
7	MAY DE34-00230B
