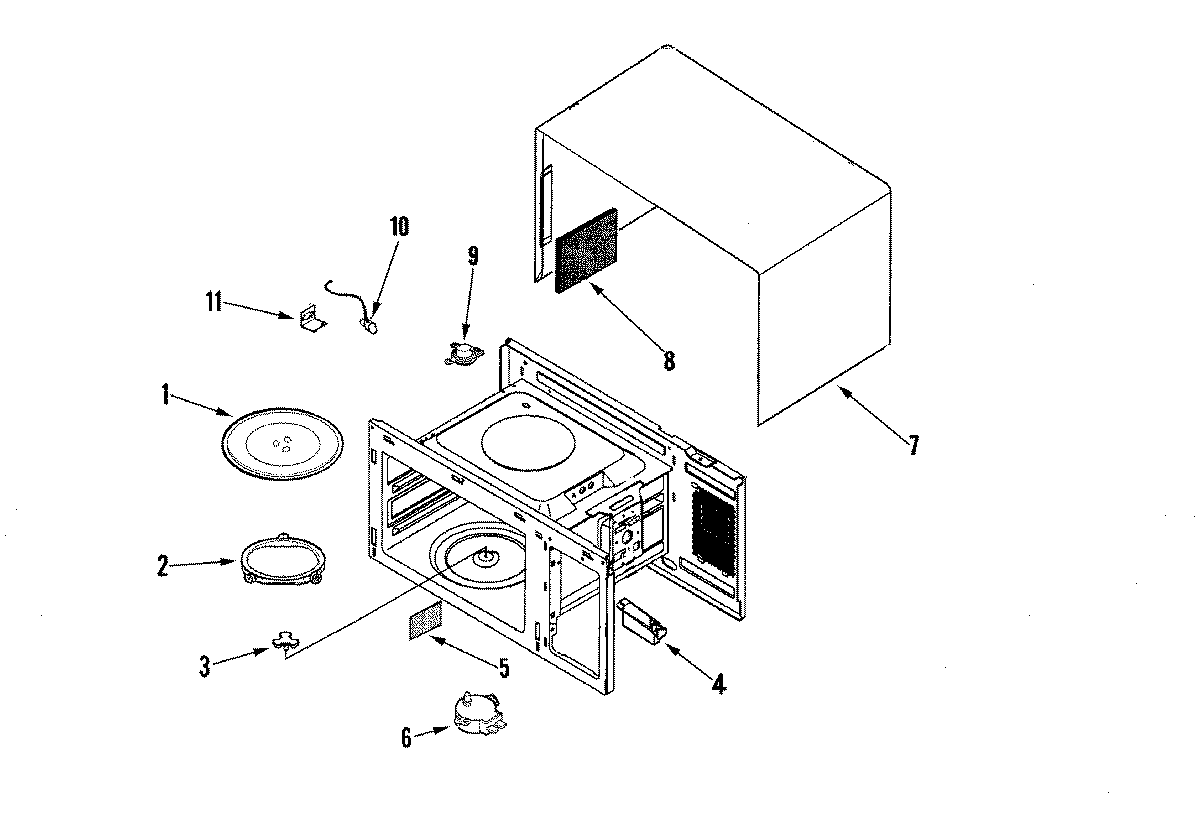

AMC2206BAW 01 – BODY/CAVITY

Written by

Products

Position	Product
1	TRAY-COOKING
2	ASSY-GUIDE ROLLER,MR87/MR89,PI
3	COUPLER
4	LEVER-DOOR
5	DE71-60449A Samsung Mounting Cover
6	MOTOR-DRIVE
7	PANEL-OUTER (WHT)
9	DE47-20173A Samsung Thermostat
10	SENSOR, GAS
10	DE97-00585B Samsung Assembly Sensor-Humidity
11	BRACKET-SENSOR
