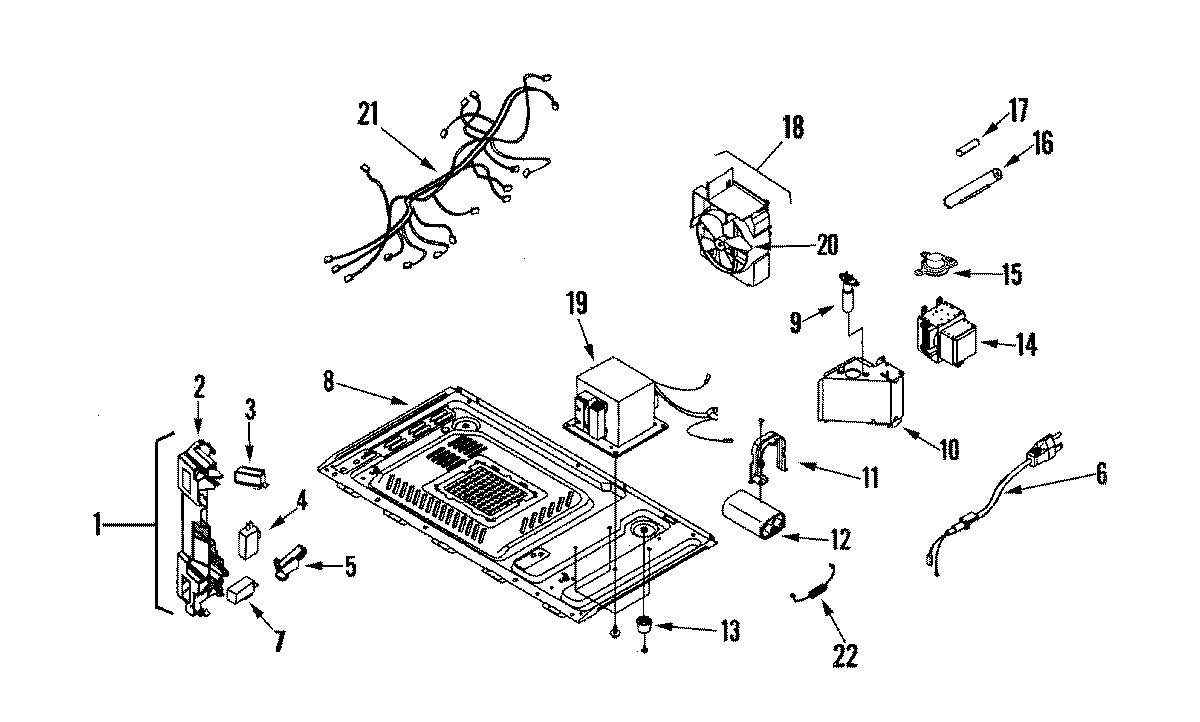

AMC5101AAW 03 – INTERNAL CONTROLS/LATCH ASY./BASE

Products

PositionProduct
1U & C GUIDE
1MAY DE96-00115A
2MAY DE72-00138A
3MAY 3405-001033
4WP3405-001034 Whirlpool Microwave Switch
5MAY DE66-00088A
6MAY DE39-20146E
7MAY 3405-001042
8DE61-00557A Samsung Base Plate
94713-001102 Samsung Microwave Incandescent Lamp 125V 25W
10DUCT, AIR
11MAY DE61-50106A
122501-001016 Samsung Capacitor
13FOOT
14WPW10126794 Whirlpool Microwave Magnetron
15MAY DE47-20032B
173601-001198 Samsung Fuse Cartridge
18DE96-00305A Samsung Fan Motor Assembly
19DE26-00094A Samsung Transformer H.V.
21ASSEMBLY, LEADWIRE
22MAY DE91-70063A
