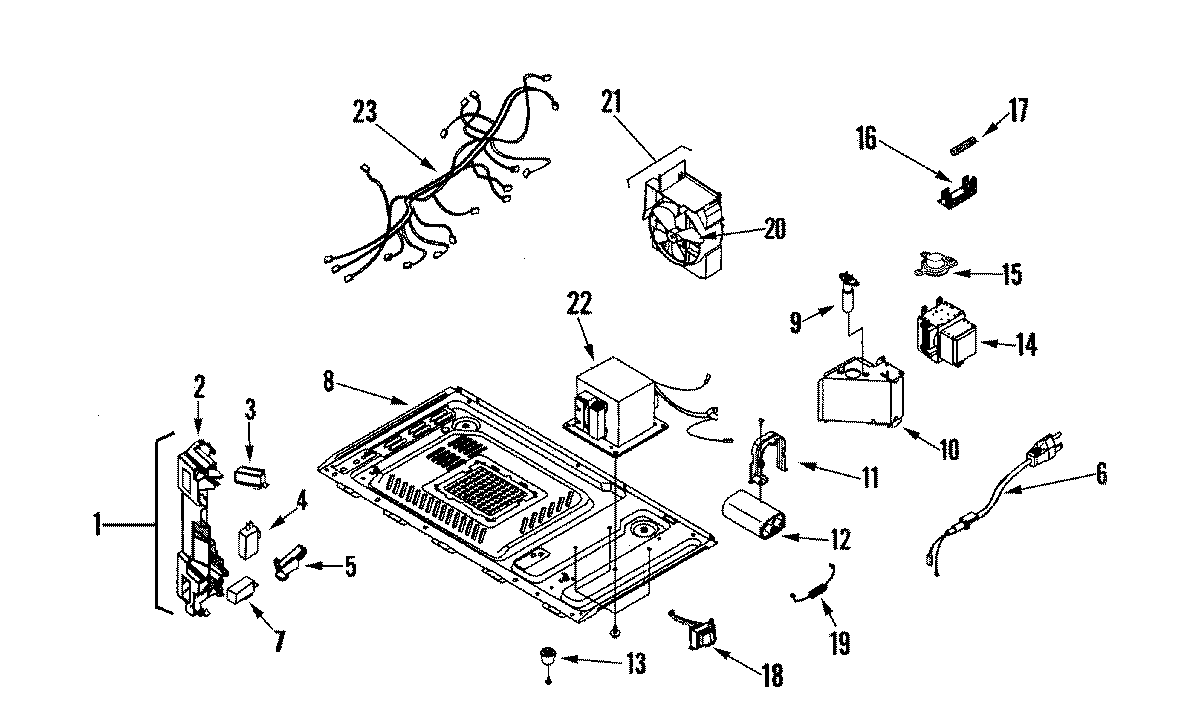

AMC5143AAB 03 – INTERNAL CONTROLS/LATCH ASY./BASE

AMC5143AAB 03 – INTERNAL CONTROLS/LATCH ASY./BASE

Written by

in

AMC5143AAB 03 – INTERNAL CONTROLS/LATCH ASY./BASE

Products

PositionProduct
1ASSY, LATCH
2MAY DE72-00138A
3MAY 3405-001055
4MAY 3405-001033
5MAY DE66-00117A
5MAY DE66-00088A
6POWER CORD
7MAY 3405-001042
8MAY DE80-10002M
94713-001102 Samsung Microwave Incandescent Lamp 125V 25W
10MAY DE71-60458A
11MAY DE61-50106A
122501-001015 Samsung Capacitor
13FOOT
14WPW10126794 Whirlpool Microwave Magnetron
15DE47-20009A Samsung Thermostat
16MAY 3602-001025
173601-001198 Samsung Fuse Cartridge
18TRAINS L.V.
19MAY DE91-70063A
20BLADE, FAN
21MAY DE31-00001G
22DE26-00061B Samsung Transformer H.V
23HARNESS, WIRE
