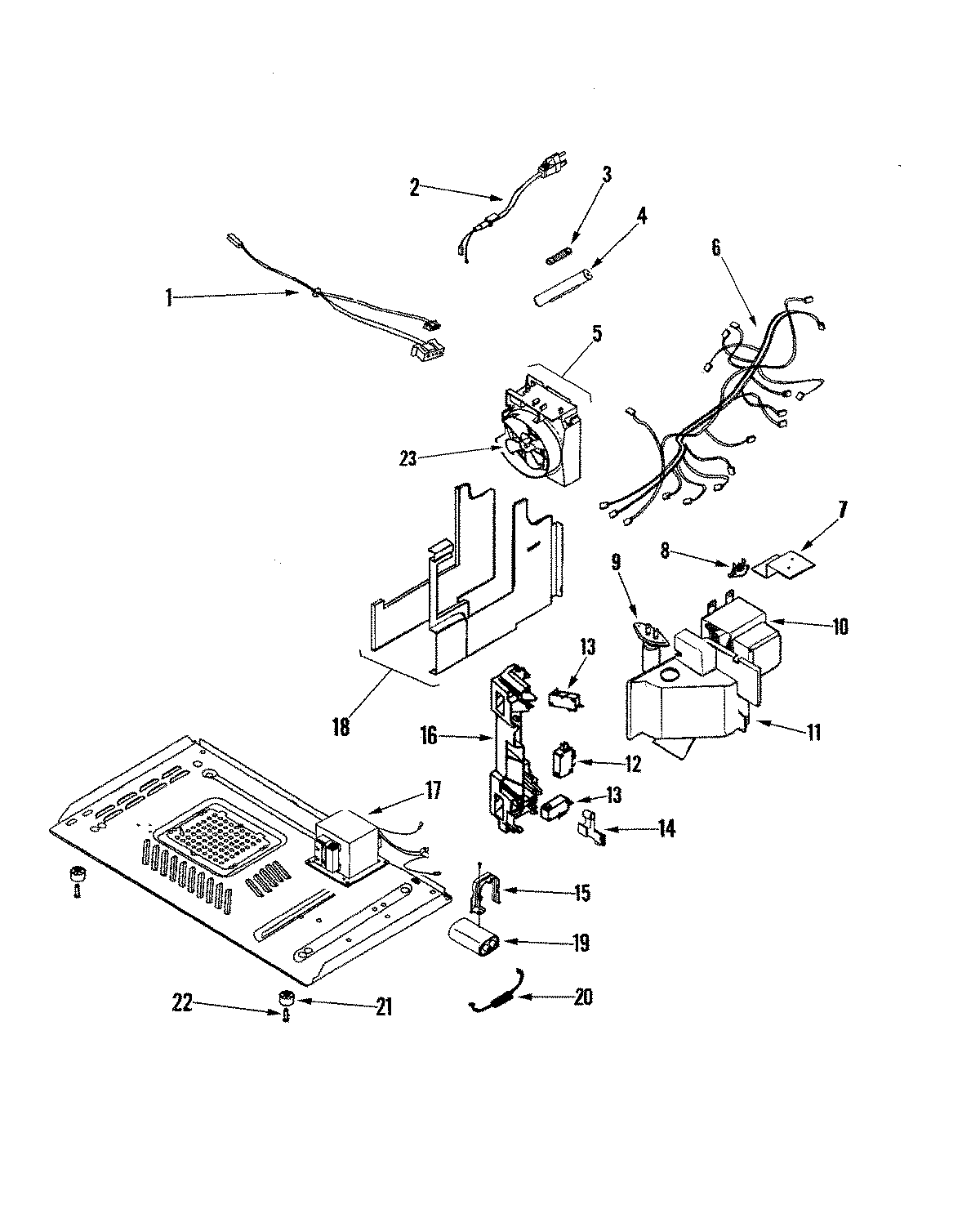

AMC6138AAQ 01 – BASE/INTERNAL CONTROLS

AMC6138AAQ 01 – BASE/INTERNAL CONTROLS

Written by

in

AMC6138AAQ 01 – BASE/INTERNAL CONTROLS

Products

PositionProduct
1MAY DE39-00220A
2POWER CORD
33601-001198 Samsung Fuse Cartridge
5MAY DE31-00001G
6MAY DE96-00391A
7MAY DE61-50490A
8DE47-20009A Samsung Thermostat
9LAMP-INCANDESCENT
10WPW10126794 Whirlpool Microwave Magnetron
11MAY DE63-00107A
12MAY 3405-001033
13WP3405-001034 Whirlpool Microwave Switch
14MAY DE66-90054B
15MAY DE61-50106A
16MAY DE66-40021B
17DE26-00061B Samsung Transformer H.V
18MAY DE71-00066A
192501-001011 Samsung Microwave High Voltage Capacitor
20MAY DE91-70063A
21DE61-40065A Samsung Microwave Foot
22DE60-60025A Samsung PIN Foot
23BLADE, FAN
