AMC6158BAB 01 – BASE/INTERNAL CONTROLS

AMC6158BAB 01 – BASE/INTERNAL CONTROLS

Written by

in

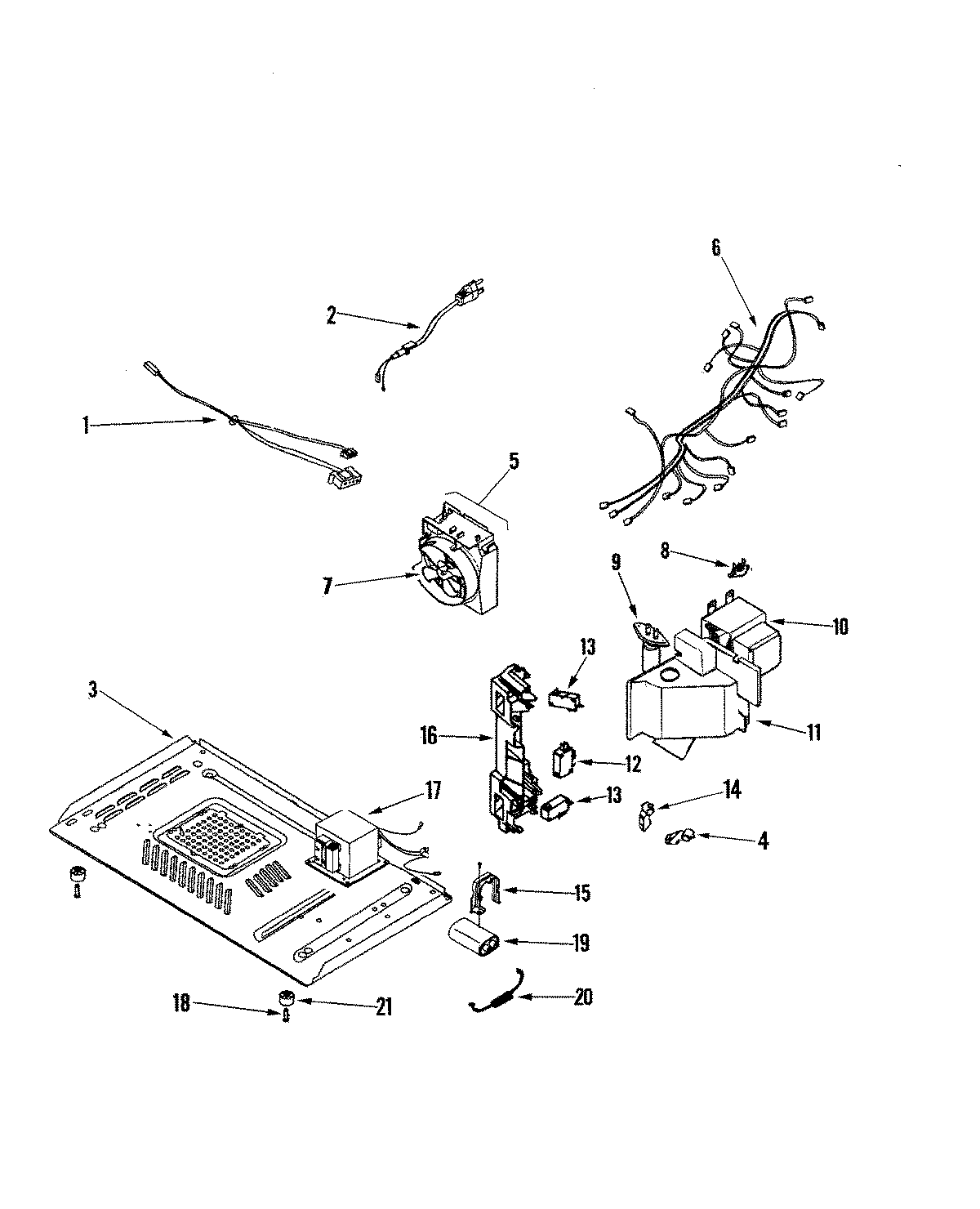

AMC6158BAB 01 – BASE/INTERNAL CONTROLS

Products

PositionProduct
1HARNESS, SENSOR
2POWER CORD
3ASSY, BASE PLATE
4LEVER-SWITCH(B)
5MAY DE71-00165A
5MOTOR-FAN
6ASSEMBLY, LEADWIRE
9MAY DE01-00166A
9MAY DE07-00006A
10WPW10126794 Whirlpool Microwave Magnetron
11DUCT, AIR
12MAY 3405-001032
13WP3405-001034 Whirlpool Microwave Switch
14LEVER-SWITCH(A)
15BRACKET-HVC
16MAY DE66-00158A
16STOPPER, LATCH
16BODY, LATCH
17TRANSFORMER
18DE60-60025A Samsung PIN Foot
192501-001011 Samsung Microwave High Voltage Capacitor
20MAY DE91-70063A
21DE61-40065A Samsung Microwave Foot
