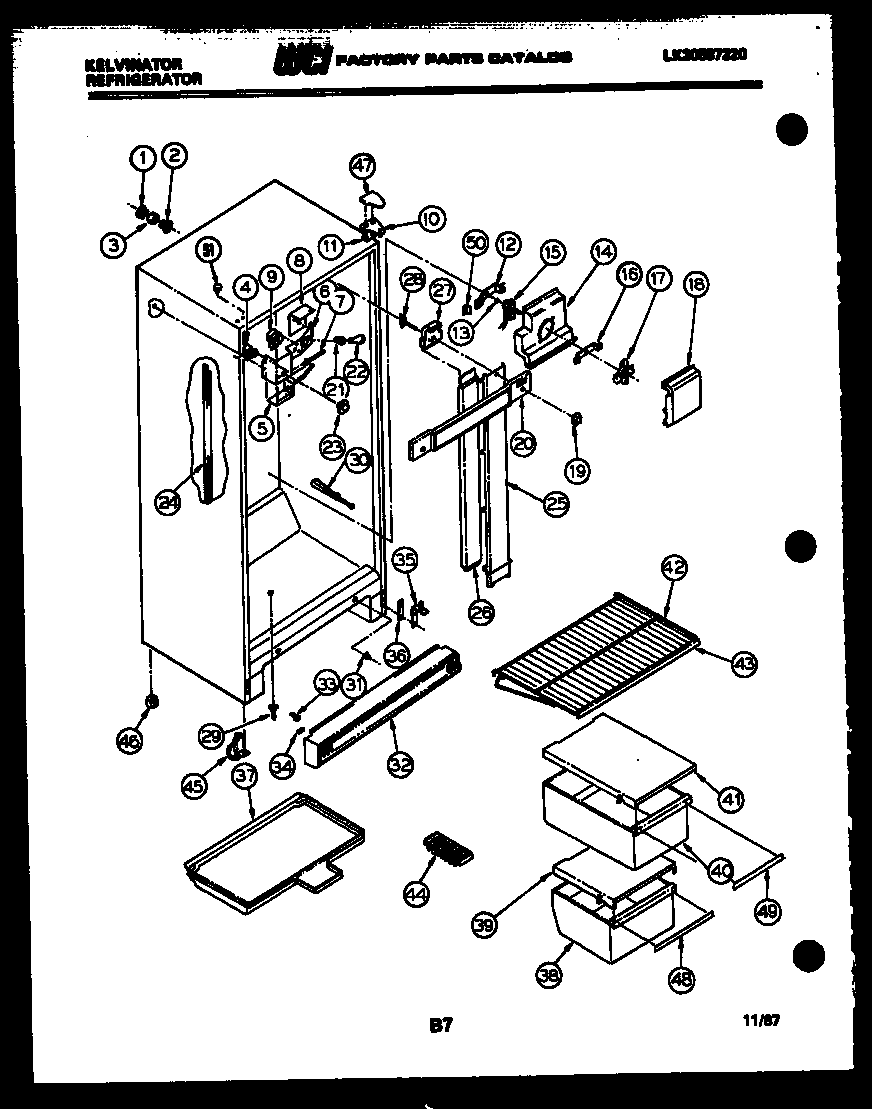

AMK175AN6D 03 – CABINET PARTS

Products

Position	Product
1	WCI G174734
2	WCI G174733
3	TUBE, INSULATION (2)
4	WCI G162205-07
4A	WCI G177781
4B	WCI G107080
5	COVER-MTG BRKT
6A	WCI G170565
6	BRACKET-CONT MTG
7	HOUSING-CAP TUBE
8	LIGHT DEFLECTOR
9A	SCREW-GROUND (2) (NON-ILLUSTRATED)
9	215846604 Frigidaire Refrigerator Defrost Timer
9B	5304455649 Frigidaire Refrigerator Screw
10B	WCI G103903
10	BRACKET, TOP HINGE
10A	241710601 Frigidaire Refrigerator Screw
11	WCI G183861
12	WCI G185303
13	G187559 Frigidaire Refrigerator Bushing
14	WCI G169597
15	5300158289 Frigidaire Evaporator Fan Motor
16	WCI G185302
17	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
18A	5304455852 Frigidaire Refrigerator Screw
18	WCI G169608
19	KNOB-DAMPR CONT
20	WCI G169949-08
20B	WCI 3015434
20A	WCI 3015123
21	218906802 Frigidaire Light Lamp Socket
22	316538904 Frigidaire Oven Lamp Light
23	WCI G162881-23
24	CHANNEL-RS & LS
25	WCI G169836
26	INSUL-LWR DUCT
27	WCI 3015057
28A	PUSH NUT-MTG (NON-ILLUSTRATED)
28	WCI G169850
29	DRAIN TUBE
30A	WCI G167125
30	WCI G17000-01
31	5303289051 Frigidaire Refrigerator Light Switch
32	WCI G161905-06
33	WCI G162994
34	PLUG - LOWER GRILLE
35B	WCI G141673
35A	SCREW - 1/4 X 1 (2)
35	BRACKET-LOWER HINGE
36B	NUT, SPEED (2)
36A	WCI G142361
36	SHIM, HINGE
37	DEFROST PAN
38	WCI G163881
39	COVER, LWR PAN
40	WCI G163953-05
41	WCI G163915-02
42	WCI G162129-01
43A	CLIP-TRIM (NON-ILLUSTRATED)
43	TRIM-CLIP-ON (12)
44	215667501 Frigidaire Refrigerator Ice Tray Primary
45A	SCREW, MTG (2) (NON-ILLUSTRATED)
45	ROLLER ASSY (2)
46B	NUT, DAMPER MOUNTING
46	ROLLER (2)
46A	WCI G162809
47	COVER, TOP HINGE, ALMOND
48	WCI G161013-50
49	WCI G161013-49
50	WCI G164571
50A	5304455651 Frigidaire Refrigerator Screw
51	WCI G174747-11
