AMK175AN6W 03 – CABINET PARTS

AMK175AN6W 03 – CABINET PARTS

Written by

in

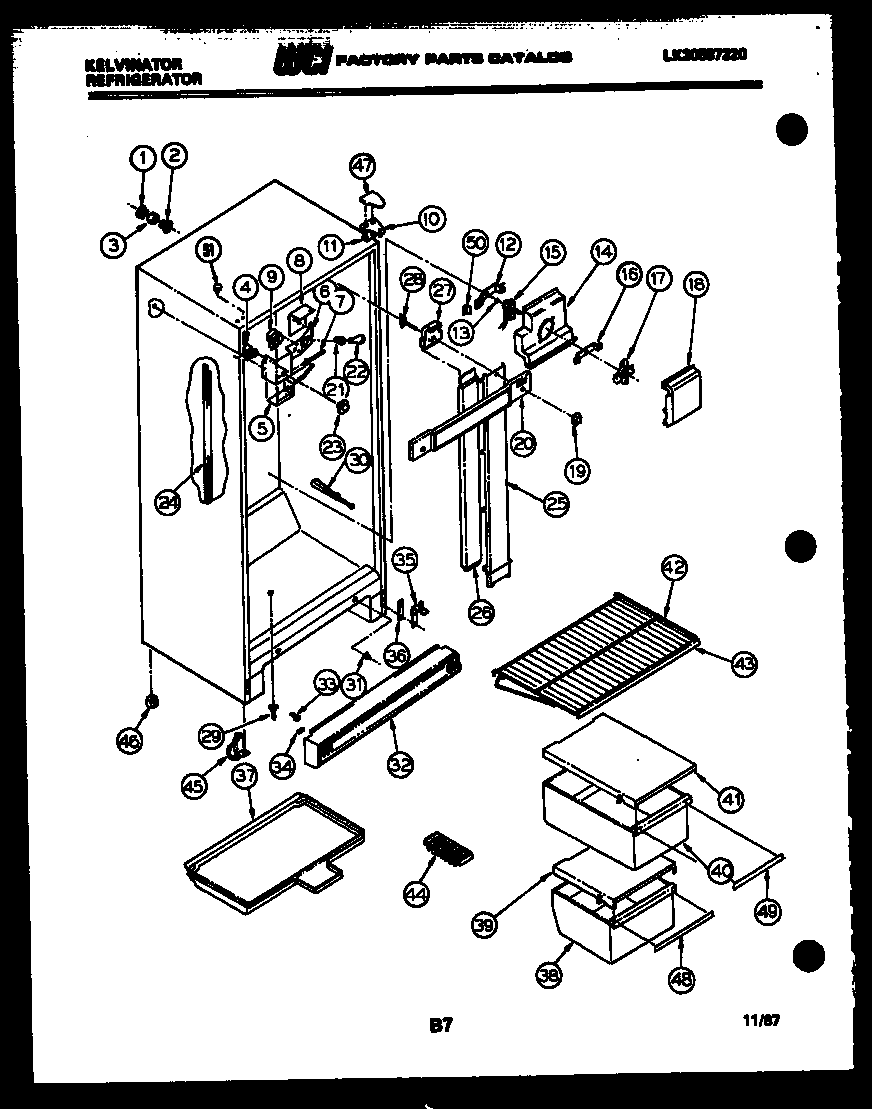

AMK175AN6W 03 – CABINET PARTS

Products

PositionProduct
1WCI G174734
2WCI G174733
3TUBE, INSULATION (2)
4WCI G162205-07
4AWCI G177781
4BWCI G107080
5COVER-MTG BRKT
6AWCI G170565
6BRACKET-CONT MTG
7HOUSING-CAP TUBE
8LIGHT DEFLECTOR
9B5304455649 Frigidaire Refrigerator Screw
9215846604 Frigidaire Refrigerator Defrost Timer
9ASCREW-GROUND (2) (NON-ILLUSTRATED)
10BRACKET, TOP HINGE
10A241710601 Frigidaire Refrigerator Screw
10BWCI G103903
11WCI G183861
12WCI G185303
13G187559 Frigidaire Refrigerator Bushing
14WCI G169597
155300158289 Frigidaire Evaporator Fan Motor
16WCI G185302
175308000010 Frigidaire Refrigerator Evaporator Fan Blade
18WCI G169608
18A5304455852 Frigidaire Refrigerator Screw
19KNOB-DAMPR CONT
20BWCI 3015434
20WCI G169949-08
20AWCI 3015123
21218906802 Frigidaire Light Lamp Socket
22316538904 Frigidaire Oven Lamp Light
23WCI G162881-23
24CHANNEL-RS & LS
25WCI G169836
26INSUL-LWR DUCT
27WCI 3015057
28APUSH NUT-MTG (NON-ILLUSTRATED)
28WCI G169850
29DRAIN TUBE
30AWCI G167125
30WCI G17000-01
315303289051 Frigidaire Refrigerator Light Switch
32WCI G161905-06
33WCI G162994
34PLUG – LOWER GRILLE
35BWCI G141673
35BRACKET-LOWER HINGE
35ASCREW – 1/4 X 1 (2)
36SHIM, HINGE
36BNUT, SPEED (2)
36AWCI G142361
37DEFROST PAN
38WCI G163881
39COVER, LWR PAN
40WCI G163953-05
41WCI G163915-02
42WCI G162129-01
43TRIM-CLIP-ON (12)
43ACLIP-TRIM (NON-ILLUSTRATED)
44215667501 Frigidaire Refrigerator Ice Tray Primary
45ASCREW, MTG (2) (NON-ILLUSTRATED)
45ROLLER ASSY (2)
46AWCI G162809
46ROLLER (2)
46BNUT, DAMPER MOUNTING
47COVER HINGE, WHITE
48WCI G161013-50
49WCI G161013-49
50A5304455651 Frigidaire Refrigerator Screw
50WCI G164571
51WCI G174747–01
