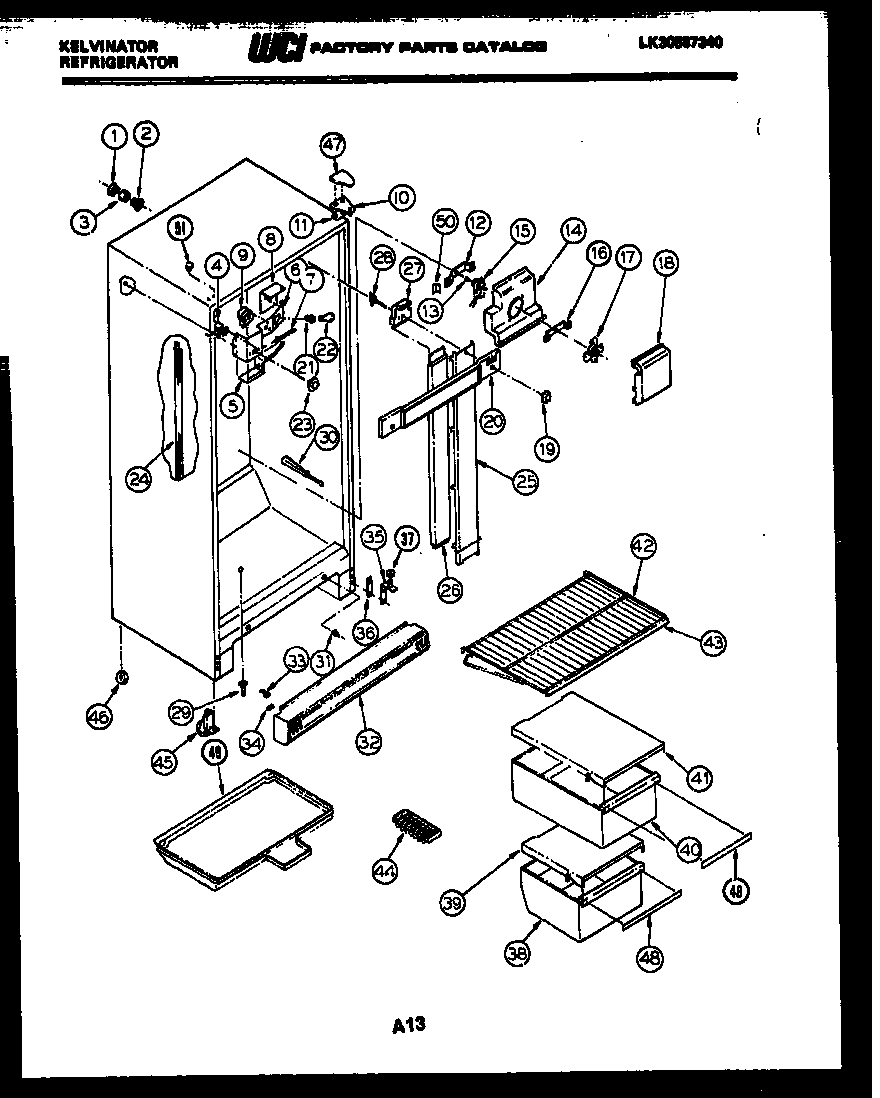

AMK175EN1D 03 – CABINET PARTS

AMK175EN1D 03 – CABINET PARTS

Written by

in

AMK175EN1D 03 – CABINET PARTS

Products

PositionProduct
*23211BUTTON, PLUG, LINER (2)
*23211BUTTON, LINER
1WCI G174734
2WCI G174733
3TUBE, INSULATION (2)
4WCI G162205-07
4BWCI G177781
4AWCI G107080
5COVER-MTG BRKT
6AWCI G170565
6BRACKET-CONT MTG
7HOUSING-CAP TUBE
8LIGHT DEFLECTOR
9A5304455649 Frigidaire Refrigerator Screw
9215846604 Frigidaire Refrigerator Defrost Timer
9BSCREW-GROUND (2) (NON-ILLUSTRATED)
10BWCI G103903
10BRACKET, TOP HINGE
10A241710601 Frigidaire Refrigerator Screw
11WCI G183861
12WCI G185303
13G187559 Frigidaire Refrigerator Bushing
14WCI G169597
155300158289 Frigidaire Evaporator Fan Motor
16WCI G185302
175308000010 Frigidaire Refrigerator Evaporator Fan Blade
18WCI G169608
19KNOB-DAMPR CONT
20WCI 3016564
20AWCI 3016567
20BWCI 3016568
21218906802 Frigidaire Light Lamp Socket
22316538904 Frigidaire Oven Lamp Light
23WCI G162881-23
24CHANNEL-RS & LS
25WCI G169836
26INSUL-LWR DUCT
27WCI 3015057
28WCI G169850
28APUSH NUT-MTG (NON-ILLUSTRATED)
29DRAIN TUBE
30A5304455852 Frigidaire Refrigerator Screw
30WCI G170001-01
315303289051 Frigidaire Refrigerator Light Switch
32WCI G161905-07
33WCI G162994
34PLUG – LOWER GRILLE
35ASCREW – 1/4 X 1 (2)
35BWCI G141673
35BRACKET-LOWER HINGE
36AWCI G142361
36BNUT, SPEED (2)
36SHIM, HINGE
37WASHER, NYLON
38WCI 3016572
39WCI G163916-01
40WCI 3016571
41AWCI G180108-06
41WCI G163915-01
42WCI G180195-02
43WCI G172434-08
44215667501 Frigidaire Refrigerator Ice Tray Primary
45ASCREW, MTG (2) (NON-ILLUSTRATED)
45ROLLER ASSY (2)
46ROLLER (2)
46BNUT, DAMPER MOUNTING
46AWCI G162809
47COVER, TOP HINGE, ALMOND
48WCI G161013-71
49APAD, FOAM (2)
49DEFROST PAN
50WCI G164571
50A5304455651 Frigidaire Refrigerator Screw
51WCI G174747-11
