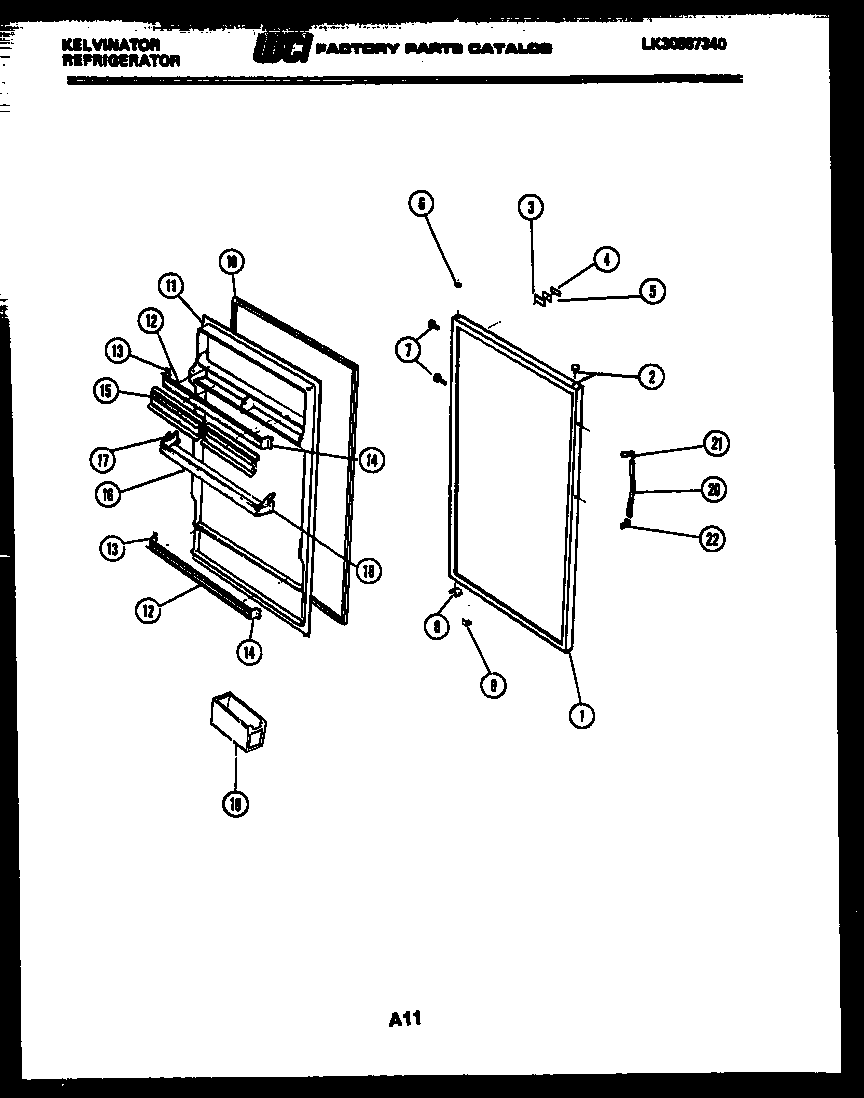

AMK175EN1F 02 – DOOR PARTS

Products

Position	Product
1	WCI G190024-10
2	WCI G169332-10
3	NAMEPLATE FRAME
3A	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
4	WCI 3016518
5	WCI 3016519
6	BEARING, HINGE (3)
7	WCI G162977-10
8A	WCI G185566
8	STOP, DOOR. PC & FC (2)
9	BUMPER-LIGHT SW.
10	GASKET DOOR
11A	5304455651 Frigidaire Refrigerator Screw
11	WCI 3016565
12	WCI 3016559
13	WCI G170023-01
14	WCI G170022-01
15	WCI 3016560
16	WCI 3016563
17	END CAP LS (2)
18A	WCI G167115
18B	WCI G101890
18	END CAP RS (2)
19	WCI 3015068
20	WCI 3016570
20A	WCI 3016569
21	WCI G189452-01
22	WCI G189451-01
