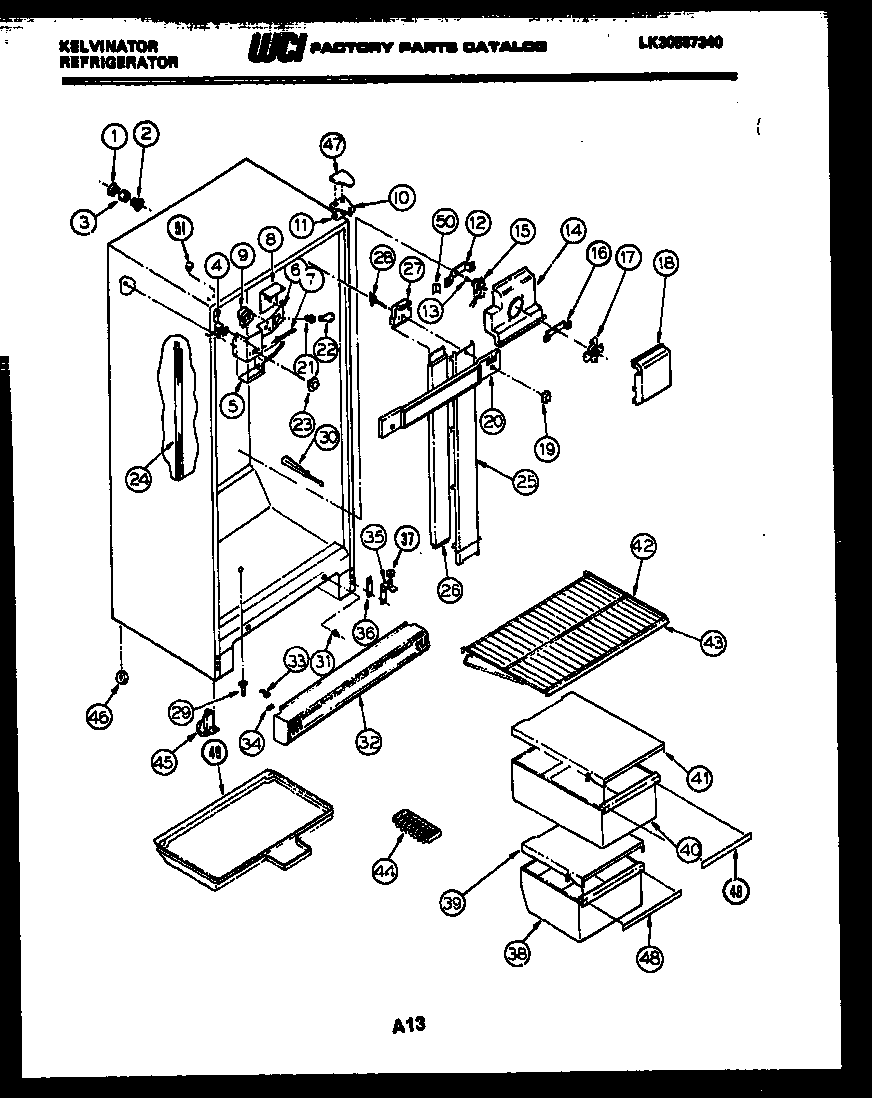

AMK175EN1F 03 – CABINET PARTS

Products

Position	Product
*23211	BUTTON, LINER
*23211	BUTTON, PLUG, LINER (2)
1	WCI G174734
2	WCI G174733
3	TUBE, INSULATION (2)
4	WCI G162205-07
4B	WCI G177781
4A	WCI G107080
5	COVER-MTG BRKT
6	BRACKET-CONT MTG
6A	WCI G170565
7	HOUSING-CAP TUBE
8	LIGHT DEFLECTOR
9	215846604 Frigidaire Refrigerator Defrost Timer
9B	SCREW-GROUND (2) (NON-ILLUSTRATED)
9A	5304455649 Frigidaire Refrigerator Screw
10A	241710601 Frigidaire Refrigerator Screw
10	BRACKET, TOP HINGE
10B	WCI G103903
11	WCI G183861
12	WCI G185303
13	G187559 Frigidaire Refrigerator Bushing
14	WCI G169597
15	5300158289 Frigidaire Evaporator Fan Motor
16	WCI G185302
17	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
18	WCI G169608
19	KNOB-DAMPR CONT
20B	WCI 3016568
20A	WCI 3016567
20	WCI 3016564
21	218906802 Frigidaire Light Lamp Socket
22	316538904 Frigidaire Oven Lamp Light
23	WCI G162881-23
24	CHANNEL-RS & LS
25	WCI G169836
26	INSUL-LWR DUCT
27	WCI 3015057
28A	PUSH NUT-MTG (NON-ILLUSTRATED)
28	WCI G169850
29	DRAIN TUBE
30A	5304455852 Frigidaire Refrigerator Screw
30	WCI G170001-01
31	5303289051 Frigidaire Refrigerator Light Switch
32	WCI G161905-07
33	WCI G162994
34	PLUG - LOWER GRILLE
35	BRACKET-LOWER HINGE
35B	WCI G141673
35A	SCREW - 1/4 X 1 (2)
36B	NUT, SPEED (2)
36A	WCI G142361
36	SHIM, HINGE
37	WASHER, NYLON
38	WCI 3016572
39	WCI G163916-01
40	WCI 3016571
41A	WCI G180108-06
41	WCI G163915-01
42	WCI G180195-02
43	WCI G172434-08
44	215667501 Frigidaire Refrigerator Ice Tray Primary
45A	SCREW, MTG (2) (NON-ILLUSTRATED)
45	ROLLER ASSY (2)
46	ROLLER (2)
46B	NUT, DAMPER MOUNTING
46A	WCI G162809
47	COVER HINGE, COFFEE
48	WCI G161013-71
49A	PAD, FOAM (2)
49	DEFROST PAN
50	WCI G164571
50A	5304455651 Frigidaire Refrigerator Screw
51	WCI G174747-10
