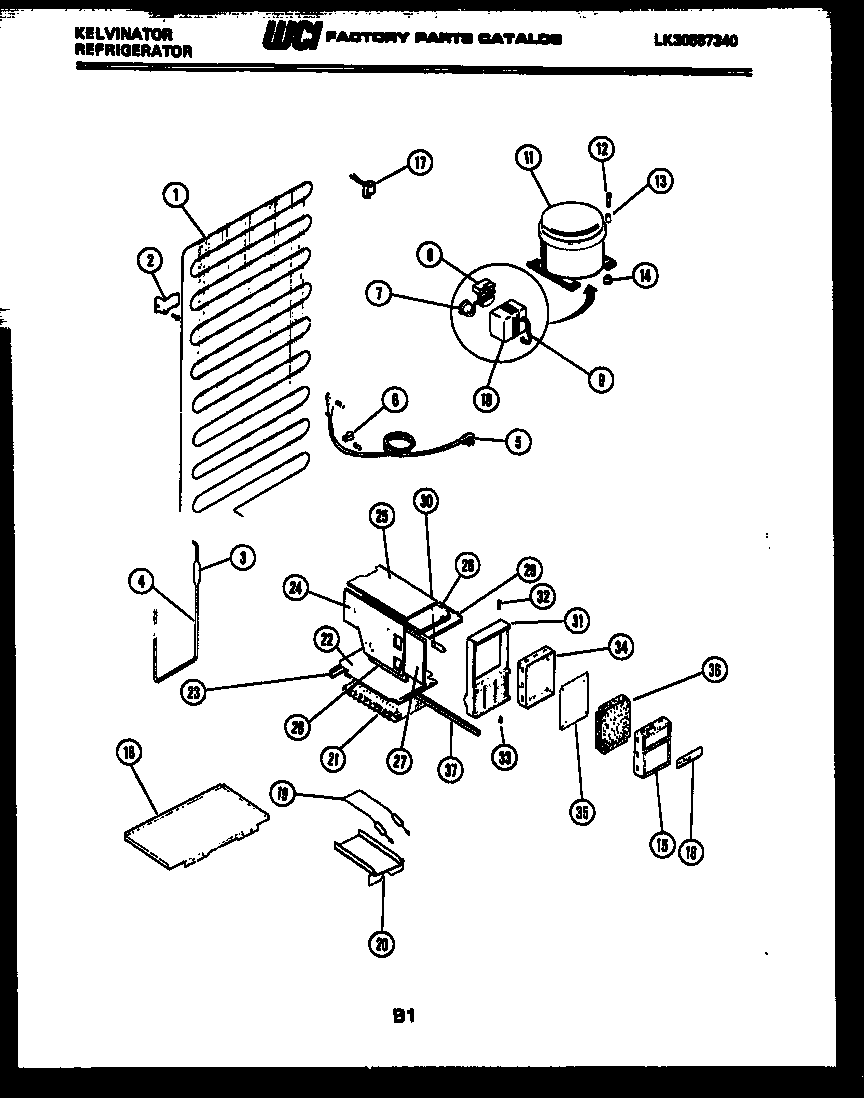

AMK175EN1F 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

AMK175EN1F 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

AMK175EN1F 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*23242WCI G170986-01
*23243WIRING HARNESS-COMPR & LIGHTS
*23243WCI G172384
*23244WCI G169954
1WCI G189439
2BRACKET-CONDENSER MOUNTING (4)
2A5308000039 Frigidaire Refrigerator Screw
35303305677 Frigidaire Replacement Filter Dryer Filters
4WCI G170983
5CORD, SERVICE
65303001199 Frigidaire Refrigerator Wiring Harness Clamp
7WCI G187172
8WCI G182225-13
9STRAP-COVER
10WCI G185792
11WCI G186043
12SCREW – 1/4-20 (3) COMP. MTG.
13SLEEVE COMP MTG (3)
14218513300 Frigidaire Refrigerator Compressor Mount Grommet
15DOOR-FRZR OUTER
16WCI 3016566
175303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
18DEFROST PLATE
19A5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
19WCI G187141
20WCI G187142
21AWCI G170487
21WCI G189134
22AWCI G169969
22WCI G169589
23WCI G170779
24WCI G171083
25WCI G171082
26WCI G169831
27WCI G169832
28AWCI G169964
28WCI G169833
29HOUSING-INR LINER
30WCI G171003
31AWCI G171694
31WCI G169891-02
32HINGE PIN – UPR
33HINGE PIN – LWR
34DOOR-FRZR INNER
35WCI G169975
36WCI G169965
37GASKET-FRZR 3/8 (3)
37GASKET-FRZR 3/4 (2)
