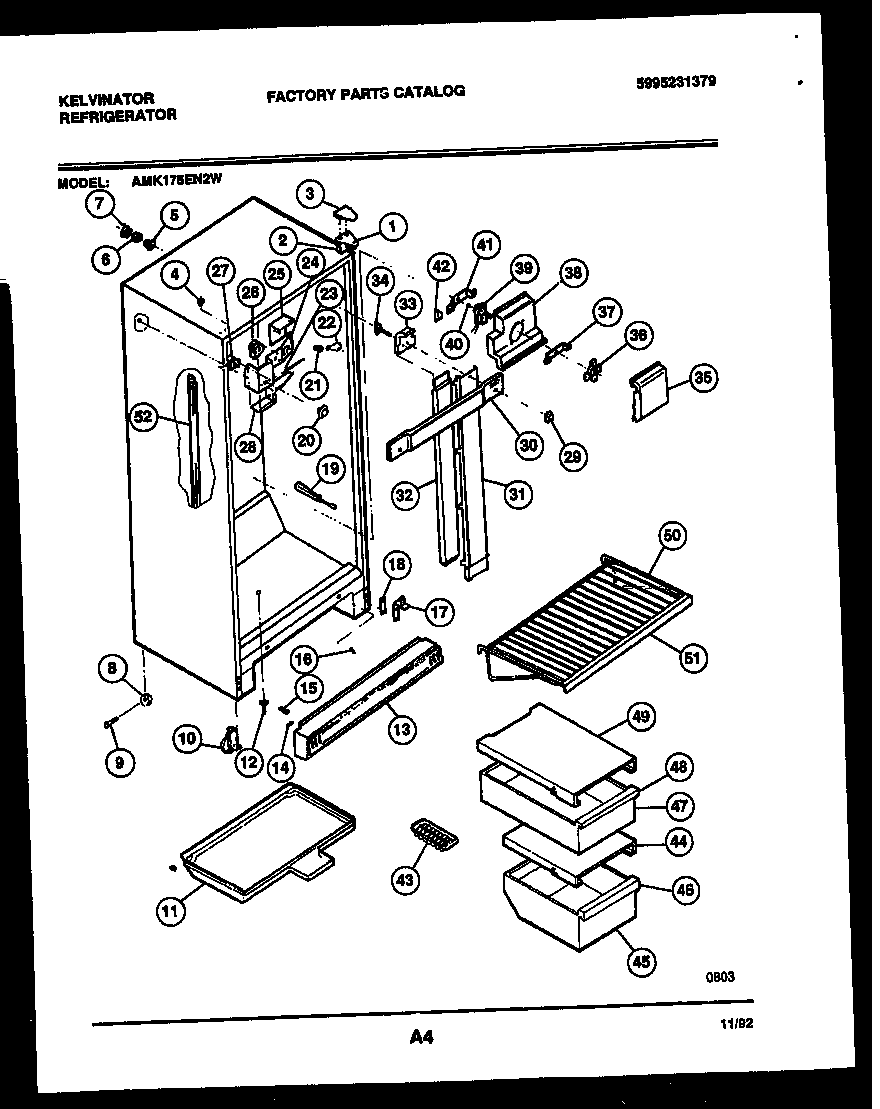

AMK175EN2W 03 – CABINET PARTS

Products

Position	Product
*28843	PLUG, BUTTON, CABINET LINER (NI)
*28844	CLIP-CABLE
*28844	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
*28843	5304455650 Frigidaire Refrigerator Screw
*28844	WCI 5300169478
*28844	CLIP-WIRING HARNESS
1B	241710601 Frigidaire Refrigerator Screw
1	BRACKET-UPPER HINGE
2	SHIM - UPPER HINGE
3	COVER-UPPER HINGE, WHITE
4	PLUG-BUTTON, WHITE
5	WCI 5303001286
6	TUBE-RUBBER
7	WCI 5303001287
8	WCI 5303001030
9	WCI 5308000266
9A	Nut,push-on
10A	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
10B	SCREW-ROLLER ADJ (2) (NON-ILLUSTRATED)
10	ROLLER-FRONT (2)
11A	WCI 08000185
11	WCI 5300174360
12	WCI 5300164843
13	WCI 5303016726
14	WCI 5300172797
15	CLIP-GRILLE
16	5303289051 Frigidaire Refrigerator Light Switch
17	HINGE-BOTTOM
17B	SCREW-HINGE MTG (2) (NON-ILLUSTRATED)
17A	WASHER, .34 X .62 X .05, NYLON
17E	WCI 5300077210
17D	WCI 5308000013
17C	WCI 5303001273
18	SHIM-BTM HINGE (3)
19	WCI 5317000101
20	WCI 5316288112
21	218906802 Frigidaire Light Lamp Socket
22	316538904 Frigidaire Oven Lamp Light
23	WCI 5300170287
24A	WCI 08009649
24	WCI 08008707
25	WCI 5308008709
26A	5304455649 Frigidaire Refrigerator Screw
26B	SCREW-MOUNTING (2) (NON-ILLUSTRATED)
26	215846604 Frigidaire Refrigerator Defrost Timer
27A	WCI 5303001260
27	WCI 5308000068
28	WCI 5308008706
29	WCI 5316995001
30A	WCI 3016567
30B	WCI 3016568
30	WCI 3016564
31	WCI 08008718
32	INSUL-LWR DUCT
33	WCI 3015057
34	WCI 08008721
34A	WCI 5300171508
35	WCI 5308008711
35A	5304455852 Frigidaire Refrigerator Screw
36	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
37	WCI 5303205118
38	WCI 08008710
39	5300158289 Frigidaire Evaporator Fan Motor
40	G187559 Frigidaire Refrigerator Bushing
41	BRACKET-MOTOR MTG, REAR
42A	5304455651 Frigidaire Refrigerator Screw
42	WCI 5308000107
43	215667501 Frigidaire Refrigerator Ice Tray Primary
44	WCI 5316391601
45	WCI 3016572
46	WCI G161013-071
47	WCI 3016571
48	WCI G161013-71
49	WCI 5308008727
49A	WCI 3018752
50	WCI 5303293984
51	WCI 5303208518
52	CHANNEL-SHELF MTG (2)
