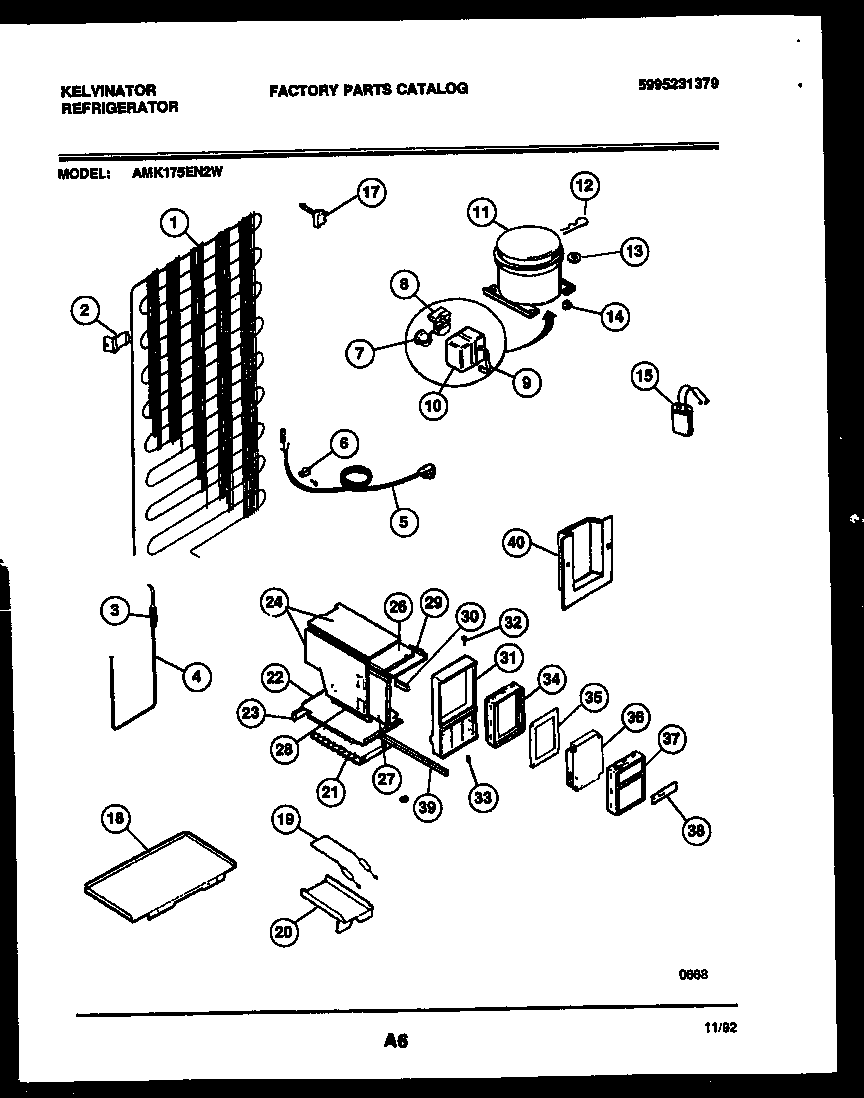

AMK175EN2W 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*28852	5308000133 Frigidaire Refrigerator Clamp
*28852	WCI 3006636
*28851	WCI 5308009645
*28851	WCI 08008781
*28851	WCI 08002769
*28852	WCI 5300169964
*28852	5304455651 Frigidaire Refrigerator Screw
*28852	WCI 5300172384
1	WCI G000189439
1A	SPACER-COND TUBE,BLACK
2B	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
2	BRACKET-MTG (4)
2A	5308000039 Frigidaire Refrigerator Screw
3	5303305677 Frigidaire Replacement Filter Dryer Filters
4	WCI 5308000021
5	CORD-ELECTRIC POWER
6	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
7	WCI 5303272031
8	RELAY-TL
9	5303006412 Frigidaire Refrigerator Cover Mounting Strap
11	COMPRESSOR WITH ELECTRICALS
12	CLIP – COMPRESSOR MTG
13	WASHER-COMPR MTG
14	218513300 Frigidaire Refrigerator Compressor Mount Grommet
15A	5304455852 Frigidaire Refrigerator Screw
15	CAPACITOR
17	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
18	WCI 5303281940
18A	WCI 08000099
19	WCI 5300187141
19A	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
20	WCI 3007378
21	WCI 5303015180
22	WCI 08008749
22A	WCI 5308008750
23	WCI 5300170779
24	WCI 3017661
26	WCI 5308008753
27	WCI 5308008754
28	WCI 5308008755
29	WCI 08008756
30	WCI 08008766
31A	WCI 5300171694
31	WCI 5303274959
32	WCI 5308008765
33	WCI 5308008767
34	WCI 08008769
35	WCI 5308008771
36	WCI 08008770
37	DOOR-FRZR OUTER
38	WCI 3016566
39	WCI 5317053302
40	WCI 5303001197
