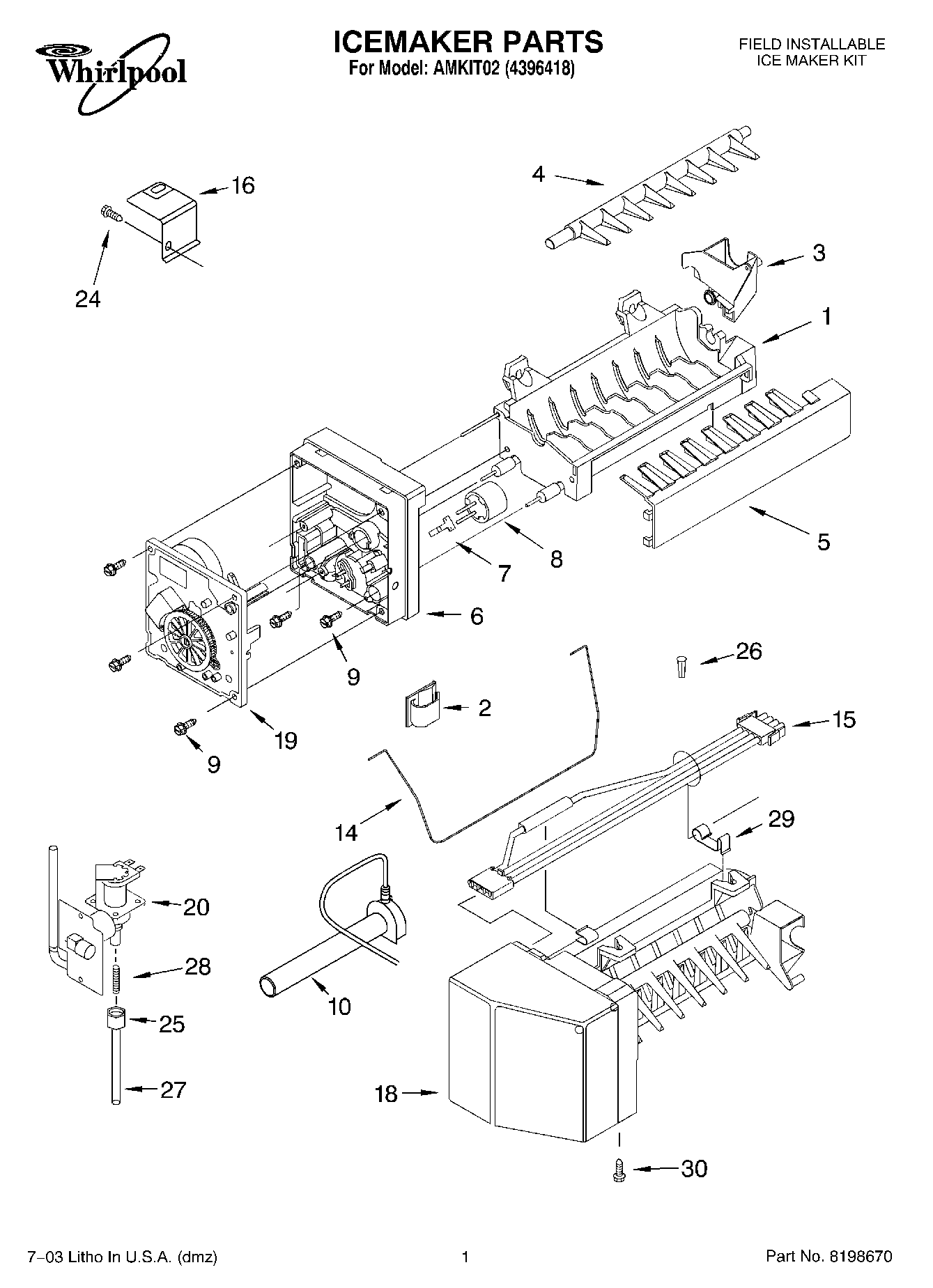

AMKIT02 01 – ICEMAKER PARTS

AMKIT02 01 – ICEMAKER PARTS

Written by

in

AMKIT02 01 – ICEMAKER PARTS

Products

PositionProduct
1Mold & Heater (Not Available, Order 4396418) Assembly
2WPM0104106 Whirlpool Refrigerator Clip
3WP628356 Whirlpool Refrigerator Fill Cup
4WP627843 Whirlpool Refrigerator Ejector Arm
5WP2182124 Whirlpool Refrigerator Stripper Arm
6WP2195914 Whirlpool Refrigerator Ice Maker Housing
7WP2315522 Whirlpool Refrigerator Clip
8Thermostat (Not Available, Order 4396418)
9WP681249 Whirlpool Screw Assembly
10W11176463 Whirlpool Refrigerator Water Tube
14ARM-SHUT
15WPD7813010 Whirlpool Refrigerator Wire Harness
16WP2256087 Whirlpool Refrigerator Bracket
18WPW10289690 Whirlpool Ice Maker Cover
19Module Assembly (Not Available, Order 4396418)
20W10833899 Whirlpool Refrigerator Water Inlet Valve Kit
2467006425 Whirlpool Refrigerator Screw
25Compression Nut
26WPA3223101 Whirlpool Refrigerator Insert PL
27W10823511 Whirlpool Refrigerator Water Tube
28Spring
29WPL 4343984
30FOLLOWING PARTS NOT ILLUSTRATED
30WP67001255 Whirlpool Ice Bucket
30WP488878 Whirlpool Refrigerator Tube Clamp
30WPL 4344549
30WPL 4344316
30W11033771 Whirlpool Refrigerator Coupling
30WP98165 Whirlpool Screw
30Note: The Following Parts Are Components of Accessory Bag
