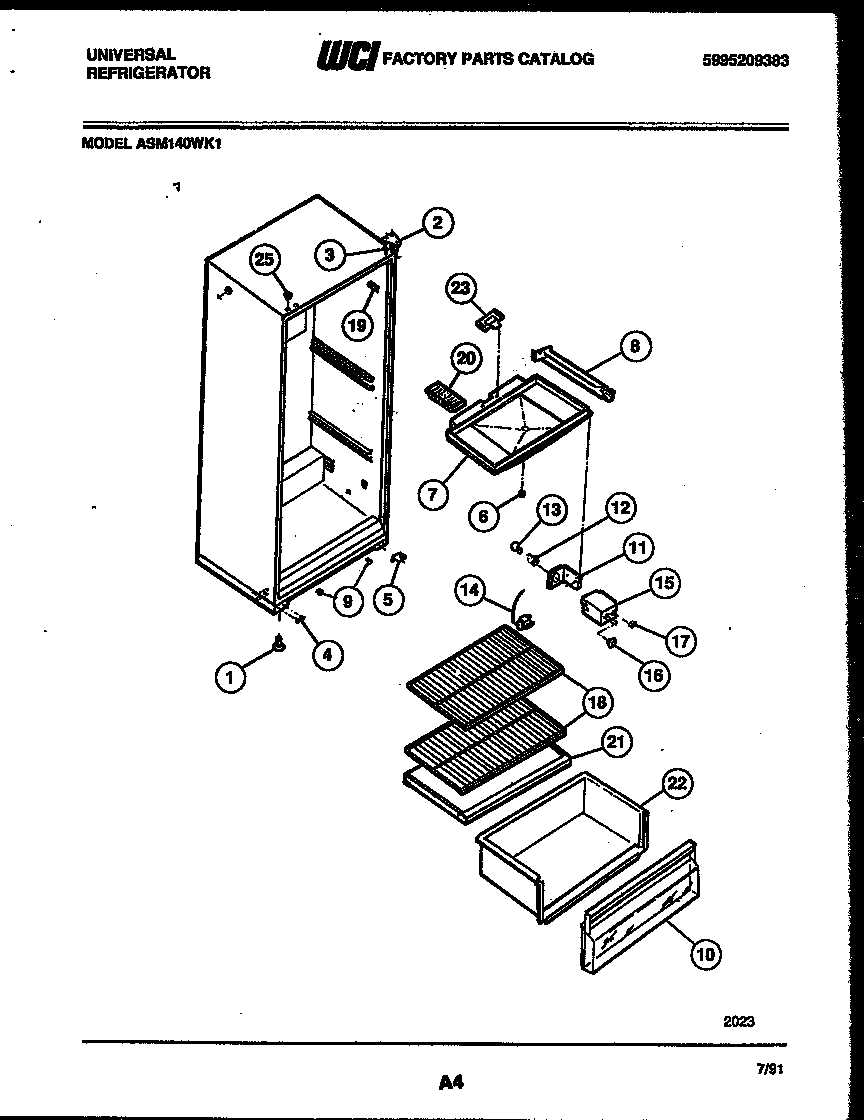

AMS140WKW1 03 – CABINET PARTS

Products

PositionProduct
1SCREW-LEVELING, (2)
2WASHER, .34 X .62 X .05, NYLON
2WCI 3206100
3SHIM – UPPER HINGE
4TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
4WCI 3206135
5WCI 3206136
5WASHER, .28 X .62 X .19, NYLON
55303001321 Frigidaire Refrigerator Lower Hinge Pin
5241710601 Frigidaire Refrigerator Screw
6WCI 08009779
7WCI 5317766801
7WCI 5300179982
85304455650 Frigidaire Refrigerator Screw
8WCI 5300163217
9PLUG-BUTTON
10WCI 3206106
11WCI 5300163210
115304455852 Frigidaire Refrigerator Screw
12SOCKET-LIGHT/LAMP
13316538904 Frigidaire Oven Lamp Light
14WCI 5303001260
14WCI 5316266703
15WCI 5303209951
15SCREW-MOUNTING (2) (NON-ILLUSTRATED)
16WCI 5303209953
175309918806 Frigidaire Refrigerator Light Switch Door
18WCI 5303209934
19TRIM-CABINET CORNER, WHITE
19TRIM-CABINET CORNER, ALMOND
19WCI 5303202338
20215667501 Frigidaire Refrigerator Ice Tray Primary
21WCI 5303209935
22PAN-CRISPER, FULL-WIDTH
23WCI 5300179540
23WCI 5300179612
23WCI 5300183114
25BUTTON-HINGE-WHEAT
25PLUG-BUTTON, ALMOND, UPR HINGE HOLES
25PLUG-BUTTON, WHITE
